element CoordGeom

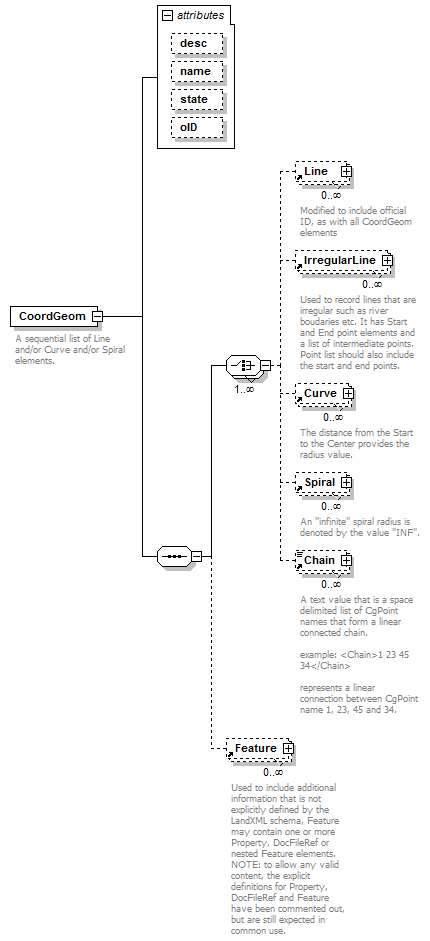

diagram LandXML-1.2Doc_p42.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Line IrregularLine Curve Spiral Chain Feature
used by
elements Alignment Parcel PlanFeature VolumeGeom
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
namexs:string
statestateType
oIDxs:string
annotation
documentation
A sequential list of Line and/or Curve and/or Spiral elements.
documentation
After the sequential list of elements an optional vertical geometry
may be defined as a profile, which may be as simple as a list of PVIs (point to point 3D line string).
source <xs:element name="CoordGeom">

<xs:annotation>

<xs:documentation>A sequential list of Line and/or Curve and/or Spiral elements.</xs:documentation>

<xs:documentation>After the sequential list of elements an optional vertical geometry
may be defined as a profile, which may be as simple as a list of PVIs (point to point 3D line string).
</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:choice maxOccurs="unbounded">

<xs:element ref="Line" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="IrregularLine" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Curve" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Spiral" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Chain" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="oID" type="xs:string"/>

</xs:complexType>
</xs:element>

attribute CoordGeom/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute CoordGeom/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute CoordGeom/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute CoordGeom/@oID
type xs:string
properties
isRef 0
source <xs:attribute name="oID" type="xs:string"/>
