element IrregularLine

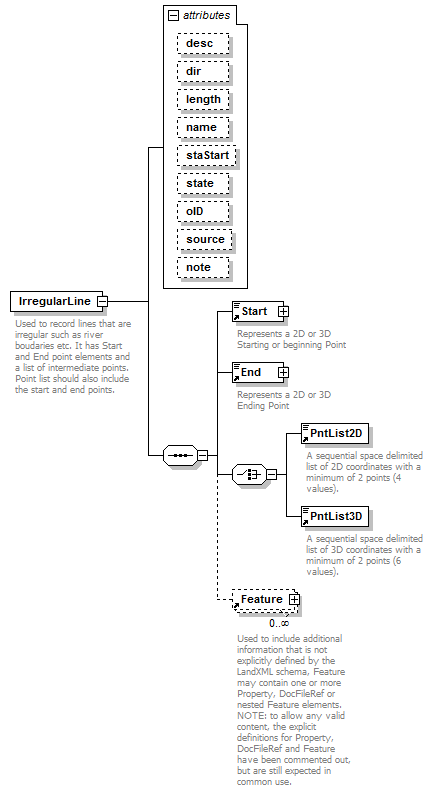

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start End PntList2D PntList3D Feature
used by	element  CoordGeom
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          dir direction          length xs:double          name xs:string          staStart xs:double          state stateType          oID xs:string          source xs:string          note xs:string
annotation	documentation Used to record lines that are irregular such as river boudaries etc. It has Start and End point elements and a list of intermediate points. Point list should also include the start and end points.
source	<xs:element name="IrregularLine">   <xs:annotation>     <xs:documentation>Used to record lines that are irregular such as river boudaries etc. It has Start and End point elements and a list of intermediate points. Point list should also include the start and end points.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Start"/>       <xs:element ref="End"/>       <xs:choice>         <xs:element ref="PntList2D"/>         <xs:element ref="PntList3D"/>         <!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="dir" type="direction"/>     <xs:attribute name="length" type="xs:double"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="staStart" type="xs:double"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="source" type="xs:string"/>     <xs:attribute name="note" type="xs:string"/>   </xs:complexType> </xs:element>

attribute IrregularLine/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute IrregularLine/@dir

type	direction
properties	isRef  0
source	<xs:attribute name="dir" type="direction"/>

attribute IrregularLine/@length

type	xs:double
properties	isRef  0
source	<xs:attribute name="length" type="xs:double"/>

attribute IrregularLine/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute IrregularLine/@staStart

type	xs:double
properties	isRef  0
source	<xs:attribute name="staStart" type="xs:double"/>

attribute IrregularLine/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute IrregularLine/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute IrregularLine/@source

type	xs:string
properties	isRef  0
source	<xs:attribute name="source" type="xs:string"/>

attribute IrregularLine/@note

type	xs:string
properties	isRef  0
source	<xs:attribute name="note" type="xs:string"/>
