element PlanFeature

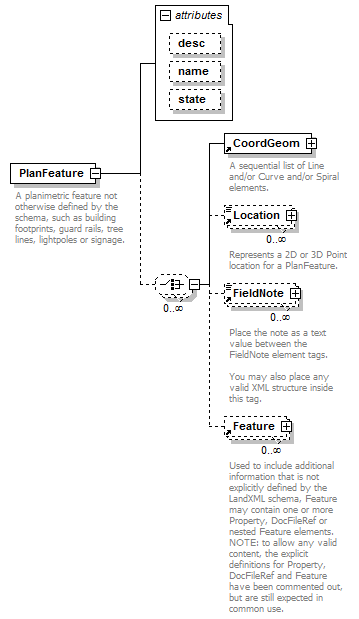

diagram LandXML-1.2Doc_p133.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children CoordGeom Location FieldNote Feature
used by
elements PlanFeatures Roadway
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
namexs:string
statestateType
annotation
documentation
A planimetric feature not otherwise defined by the schema, such as building footprints, guard rails, tree lines, lightpoles or signage.
source <xs:element name="PlanFeature">

<xs:annotation>

<xs:documentation>A planimetric feature not otherwise defined by the schema, such as building footprints, guard rails, tree lines, lightpoles or signage.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="CoordGeom"/>

<xs:element ref="Location" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>
</xs:element>

attribute PlanFeature/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute PlanFeature/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute PlanFeature/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>
