element Alignment

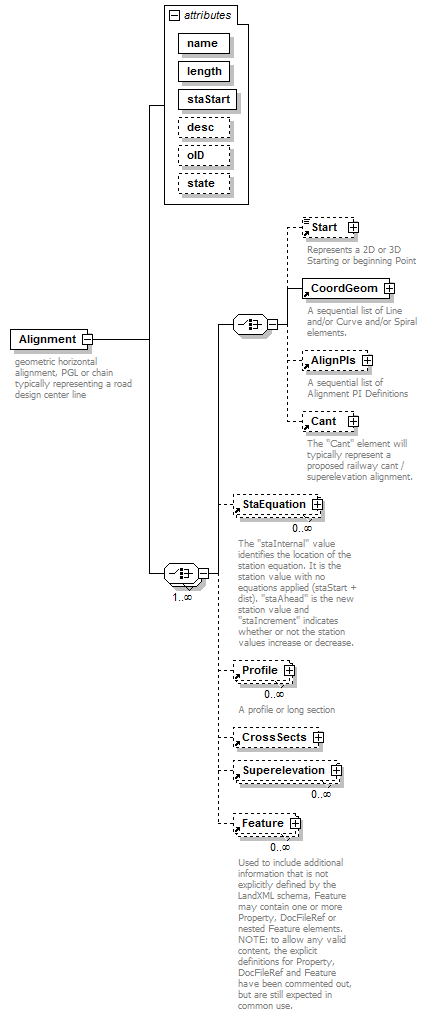

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start CoordGeom AlignPIs Cant StaEquation Profile CrossSects Superelevation Feature
used by	element  Alignments
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         length xs:double required         staStart xs:double required         desc xs:string          oID xs:string          state stateType
annotation	documentation geometric horizontal alignment, PGL or chain typically representing a road design center line
source	<xs:element name="Alignment">   <xs:annotation>     <xs:documentation>geometric horizontal alignment, PGL or chain typically representing a road design center line</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice maxOccurs="unbounded">       <xs:choice>         <xs:element ref="Start" minOccurs="0"/>         <xs:element ref="CoordGeom"/>         <xs:element ref="AlignPIs" minOccurs="0"/>         <xs:element ref="Cant" minOccurs="0"/>       </xs:choice>       <xs:element ref="StaEquation" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Profile" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="CrossSects" minOccurs="0"/>       <xs:element ref="Superelevation" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="length" type="xs:double" use="required"/>     <xs:attribute name="staStart" type="xs:double" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Alignment/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Alignment/@length

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="length" type="xs:double" use="required"/>

attribute Alignment/@staStart

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="staStart" type="xs:double" use="required"/>

attribute Alignment/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Alignment/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute Alignment/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
