element Cant

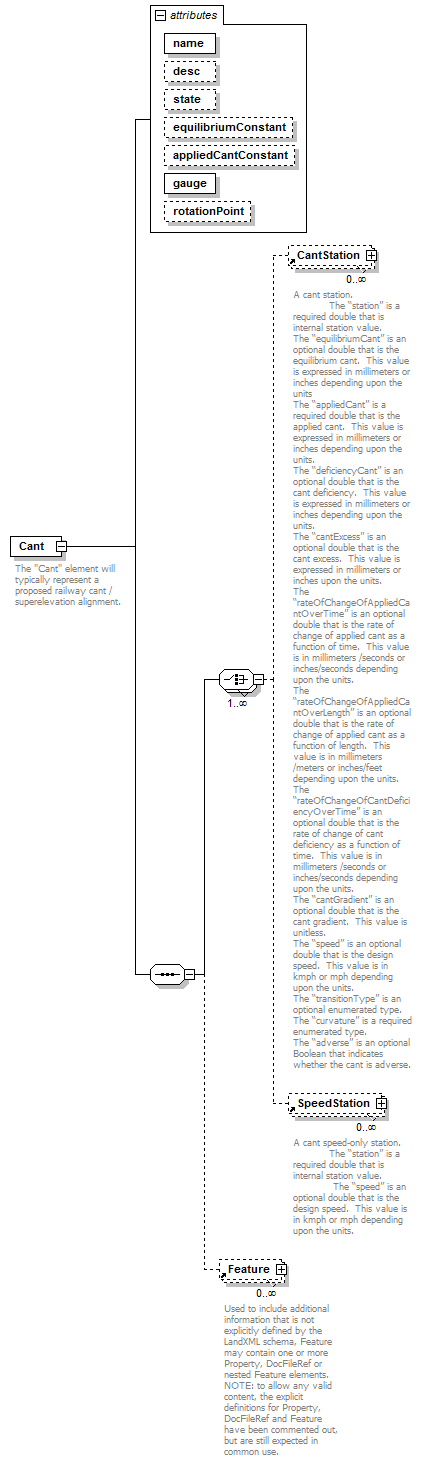

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CantStation SpeedStation Feature
used by	element  Alignment
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         desc xs:string optional         state stateType optional         equilibriumConstant xs:double optional         appliedCantConstant xs:double optional         gauge xs:double required         rotationPoint xs:string optional
annotation	documentation The "Cant" element will typically represent a proposed railway cant / superelevation alignment. documentation It is defined by a sequential series of any combination of the cant stations and speed-only stations. The “name”, “desc” and “state” attributes are typical LandXML “alignment” attributes. The “equilibriumConstant” is a unitless optional double that is used as the equilibrium constant in the cant equilibrium equation (cant = constant * speed * speed / radius). The “appliedCantConstant” is a unitless optional double that is used as the applied cant constant in the cant equilibrium equation (cant = constant * speed * speed / radius). The “gauge” is a required double that is the rail to rail distance.  This value is expressed in meters or feet depending upon the units. The “rotationPoint” is an optional string that defines the rotation point.  Valid values are “insideRail”, “outsideRail”, “center”, “leftRail” and “rightRail”.
source	<xs:element name="Cant">   <xs:annotation>     <xs:documentation>The "Cant" element will typically represent a proposed railway cant / superelevation alignment.</xs:documentation>     <xs:documentation>It is defined by a sequential series of any combination of the cant stations and speed-only stations. The “name”, “desc” and “state” attributes are typical LandXML “alignment” attributes. The “equilibriumConstant” is a unitless optional double that is used as the equilibrium constant in the cant equilibrium equation (cant = constant * speed * speed / radius). The “appliedCantConstant” is a unitless optional double that is used as the applied cant constant in the cant equilibrium equation (cant = constant * speed * speed / radius). The “gauge” is a required double that is the rail to rail distance.  This value is expressed in meters or feet depending upon the units. The “rotationPoint” is an optional string that defines the rotation point.  Valid values are “insideRail”, “outsideRail”, “center”, “leftRail” and “rightRail”. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice maxOccurs="unbounded">         <xs:element ref="CantStation" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="SpeedStation" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="desc" type="xs:string" use="optional"/>     <xs:attribute name="state" type="stateType" use="optional"/>     <xs:attribute name="equilibriumConstant" type="xs:double" use="optional"/>     <xs:attribute name="appliedCantConstant" type="xs:double" use="optional"/>     <xs:attribute name="gauge" type="xs:double" use="required"/>     <xs:attribute name="rotationPoint" type="xs:string" use="optional"/>   </xs:complexType> </xs:element>

attribute Cant/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Cant/@desc

type	xs:string
properties	isRef  0 use  optional
source	<xs:attribute name="desc" type="xs:string" use="optional"/>

attribute Cant/@state

type	stateType
properties	isRef  0 use  optional
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType" use="optional"/>

attribute Cant/@equilibriumConstant

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="equilibriumConstant" type="xs:double" use="optional"/>

attribute Cant/@appliedCantConstant

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="appliedCantConstant" type="xs:double" use="optional"/>

attribute Cant/@gauge

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="gauge" type="xs:double" use="required"/>

attribute Cant/@rotationPoint

type	xs:string
properties	isRef  0 use  optional
source	<xs:attribute name="rotationPoint" type="xs:string" use="optional"/>
