element Profile

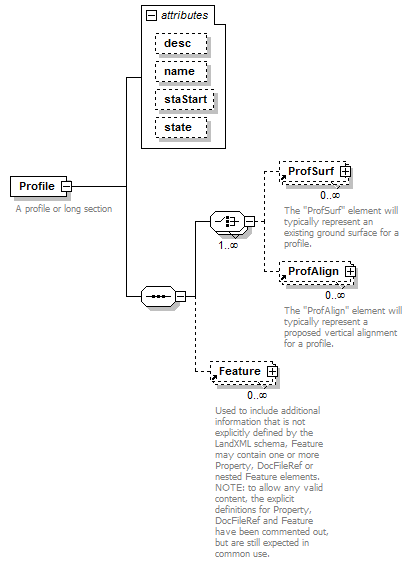

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	ProfSurf ProfAlign Feature
used by	element  Alignment
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          staStart xs:double          state stateType
annotation	documentation A profile or long section
source	<xs:element name="Profile">   <xs:annotation>     <xs:documentation>A profile or long section</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice maxOccurs="unbounded">         <xs:element ref="ProfSurf" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="ProfAlign" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="staStart" type="xs:double"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Profile/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Profile/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Profile/@staStart

type	xs:double
properties	isRef  0
source	<xs:attribute name="staStart" type="xs:double"/>

attribute Profile/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
