element ProfSurf

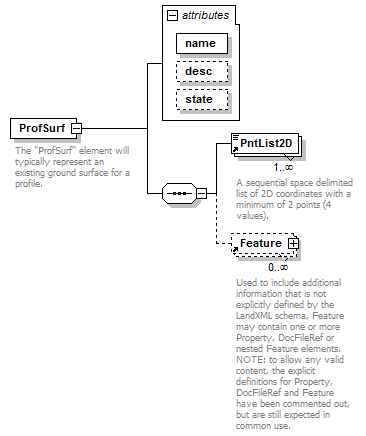

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PntList2D Feature
used by	element  Profile
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         desc xs:string          state stateType
annotation	documentation The "ProfSurf" element will typically represent an existing ground surface for a profile. documentation It is defined with a space delimited PntList2D of station/elevations pairs. documentation Example: "0.000 86.52 6.267 86.89 12.413 87.01 26.020 87.83" documentation Note: Gaps in the profile are handled by having 2 or more PntList2D elements.
source	<xs:element name="ProfSurf">   <xs:annotation>     <xs:documentation>The "ProfSurf" element will typically represent an existing ground surface for a profile. </xs:documentation>     <xs:documentation>It is defined with a space delimited PntList2D of station/elevations pairs. </xs:documentation>     <xs:documentation>Example: "0.000 86.52 6.267 86.89 12.413 87.01 26.020 87.83" </xs:documentation>     <xs:documentation>Note: Gaps in the profile are handled by having 2 or more PntList2D elements.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="PntList2D" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute ProfSurf/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute ProfSurf/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute ProfSurf/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
