element Line

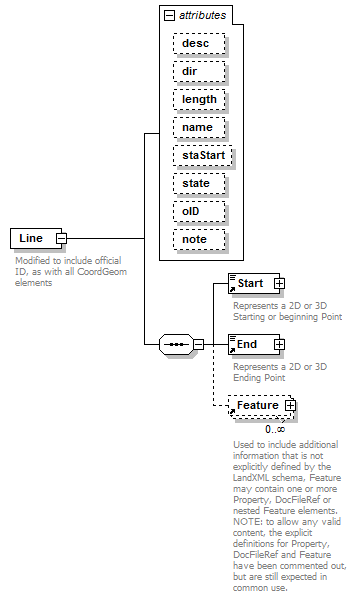

diagram LandXML-1.2Doc_p105.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Start End Feature
used by
element CoordGeom
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
dirdirection
lengthxs:double
namexs:string
staStartxs:double
statestateType
oIDxs:string
notexs:string
annotation
documentation
Modified to include official ID, as with all CoordGeom elements
source <xs:element name="Line">

<xs:annotation>

<xs:documentation>Modified to include official ID, as with all CoordGeom elements</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Start"/>

<xs:element ref="End"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="dir" type="direction"/>

<xs:attribute name="length" type="xs:double"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="staStart" type="xs:double"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="oID" type="xs:string"/>

<xs:attribute name="note" type="xs:string"/>

</xs:complexType>
</xs:element>

attribute Line/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute Line/@dir
type direction
properties
isRef 0
source <xs:attribute name="dir" type="direction"/>

attribute Line/@length
type xs:double
properties
isRef 0
source <xs:attribute name="length" type="xs:double"/>

attribute Line/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute Line/@staStart
type xs:double
properties
isRef 0
source <xs:attribute name="staStart" type="xs:double"/>

attribute Line/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Line/@oID
type xs:string
properties
isRef 0
source <xs:attribute name="oID" type="xs:string"/>

attribute Line/@note
type xs:string
properties
isRef 0
source <xs:attribute name="note" type="xs:string"/>
