element Parcel

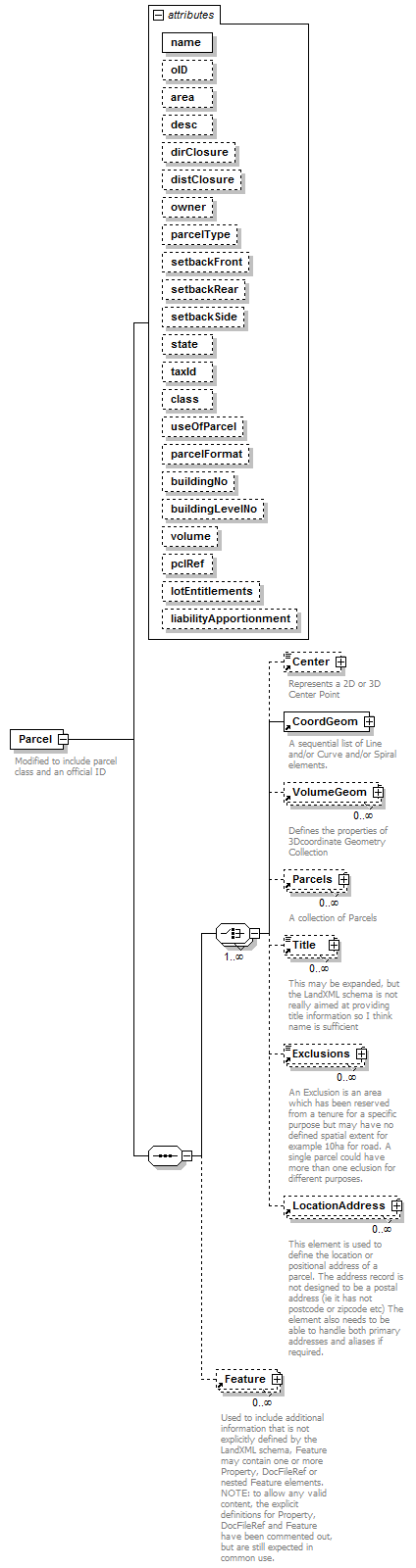

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Center CoordGeom VolumeGeom Parcels Title Exclusions LocationAddress Feature
used by	element  Parcels
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         oID xs:string          area xs:double          desc xs:string          dirClosure direction          distClosure xs:double          owner xs:string          parcelType xs:string          setbackFront xs:double          setbackRear xs:double          setbackSide xs:double          state parcelStateType          taxId xs:string          class parcelClass          useOfParcel useOfParcelType          parcelFormat parcelFormat          buildingNo xs:string          buildingLevelNo xs:string          volume xs:string          pclRef parcelNameRef          lotEntitlements xs:string          liabilityApportionment xs:string
annotation	documentation Modified to include parcel class and an official ID
source	<xs:element name="Parcel">   <xs:annotation>     <xs:documentation>Modified to include parcel class and an official ID</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice maxOccurs="unbounded">         <xs:element ref="Center" minOccurs="0"/>         <xs:element ref="CoordGeom"/>         <xs:element ref="VolumeGeom" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Parcels" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Title" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Exclusions" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="LocationAddress" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="area" type="xs:double"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="dirClosure" type="direction"/>     <xs:attribute name="distClosure" type="xs:double"/>     <xs:attribute name="owner" type="xs:string"/>     <xs:attribute name="parcelType" type="xs:string"/>     <xs:attribute name="setbackFront" type="xs:double"/>     <xs:attribute name="setbackRear" type="xs:double"/>     <xs:attribute name="setbackSide" type="xs:double"/>     <xs:attribute name="state" type="parcelStateType"/>     <xs:attribute name="taxId" type="xs:string"/>     <xs:attribute name="class" type="parcelClass"/>     <xs:attribute name="useOfParcel" type="useOfParcelType"/>     <xs:attribute name="parcelFormat" type="parcelFormat"/>     <xs:attribute name="buildingNo" type="xs:string"/>     <xs:attribute name="buildingLevelNo" type="xs:string"/>     <xs:attribute name="volume" type="xs:string"/>     <xs:attribute name="pclRef" type="parcelNameRef"/>     <xs:attribute name="lotEntitlements" type="xs:string"/>     <xs:attribute name="liabilityApportionment" type="xs:string"/>   </xs:complexType> </xs:element>

attribute Parcel/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Parcel/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute Parcel/@area

type	xs:double
properties	isRef  0
source	<xs:attribute name="area" type="xs:double"/>

attribute Parcel/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Parcel/@dirClosure

type	direction
properties	isRef  0
source	<xs:attribute name="dirClosure" type="direction"/>

attribute Parcel/@distClosure

type	xs:double
properties	isRef  0
source	<xs:attribute name="distClosure" type="xs:double"/>

attribute Parcel/@owner

type	xs:string
properties	isRef  0
source	<xs:attribute name="owner" type="xs:string"/>

attribute Parcel/@parcelType

type	xs:string
properties	isRef  0
source	<xs:attribute name="parcelType" type="xs:string"/>

attribute Parcel/@setbackFront

type	xs:double
properties	isRef  0
source	<xs:attribute name="setbackFront" type="xs:double"/>

attribute Parcel/@setbackRear

type	xs:double
properties	isRef  0
source	<xs:attribute name="setbackRear" type="xs:double"/>

attribute Parcel/@setbackSide

type	xs:double
properties	isRef  0
source	<xs:attribute name="setbackSide" type="xs:double"/>

attribute Parcel/@state

type	parcelStateType
properties	isRef  0
facets	enumeration  affected enumeration  created enumeration  encroached enumeration  extinguished enumeration  referenced enumeration  proposed enumeration  existing enumeration  adjoining
source	<xs:attribute name="state" type="parcelStateType"/>

attribute Parcel/@taxId

type	xs:string
properties	isRef  0
source	<xs:attribute name="taxId" type="xs:string"/>

attribute Parcel/@class

type	parcelClass
properties	isRef  0
source	<xs:attribute name="class" type="parcelClass"/>

attribute Parcel/@useOfParcel

type	useOfParcelType
properties	isRef  0
source	<xs:attribute name="useOfParcel" type="useOfParcelType"/>

attribute Parcel/@parcelFormat

type	parcelFormat
properties	isRef  0
source	<xs:attribute name="parcelFormat" type="parcelFormat"/>

attribute Parcel/@buildingNo

type	xs:string
properties	isRef  0
source	<xs:attribute name="buildingNo" type="xs:string"/>

attribute Parcel/@buildingLevelNo

type	xs:string
properties	isRef  0
source	<xs:attribute name="buildingLevelNo" type="xs:string"/>

attribute Parcel/@volume

type	xs:string
properties	isRef  0
source	<xs:attribute name="volume" type="xs:string"/>

attribute Parcel/@pclRef

type	parcelNameRef
properties	isRef  0
source	<xs:attribute name="pclRef" type="parcelNameRef"/>

attribute Parcel/@lotEntitlements

type	xs:string
properties	isRef  0
source	<xs:attribute name="lotEntitlements" type="xs:string"/>

attribute Parcel/@liabilityApportionment

type	xs:string
properties	isRef  0
source	<xs:attribute name="liabilityApportionment" type="xs:string"/>
