element VolumeGeom

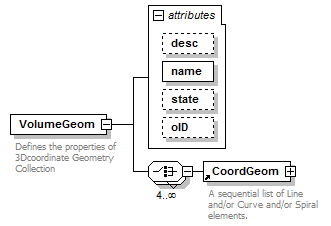

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CoordGeom
used by	element  Parcel
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string required         state stateType          oID xs:string
annotation	documentation Defines the properties of 3Dcoordinate Geometry Collection
source	<xs:element name="VolumeGeom">   <xs:annotation>     <xs:documentation>Defines the properties of 3Dcoordinate Geometry Collection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice minOccurs="4" maxOccurs="unbounded">       <xs:element ref="CoordGeom"/>     </xs:choice>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="oID" type="xs:string"/>   </xs:complexType> </xs:element>

attribute VolumeGeom/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute VolumeGeom/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute VolumeGeom/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute VolumeGeom/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>
