element Spiral

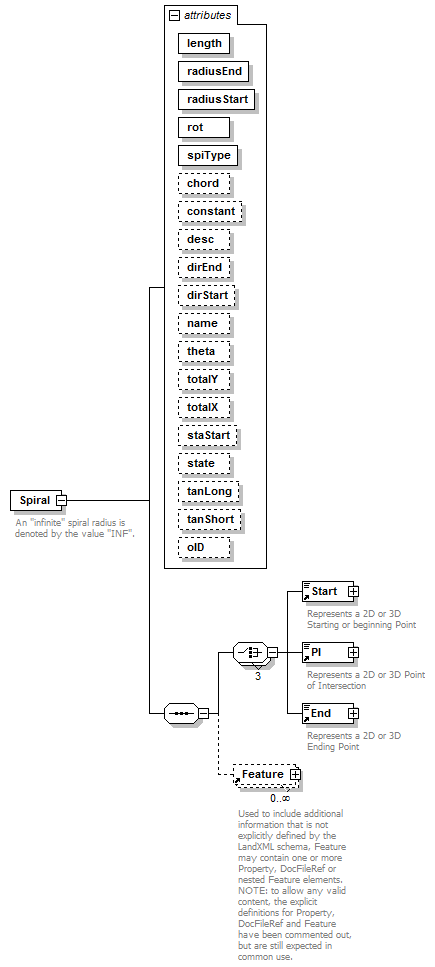

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start PI End Feature
used by	elements  ConnSpiral CoordGeom InSpiral OutSpiral
attributes	Name   Type   Use   Default   Fixed   annotation length xs:double required         radiusEnd xs:double required         radiusStart xs:double required         rot clockwise required         spiType spiralType required         chord xs:double          constant xs:double          desc xs:string          dirEnd direction          dirStart direction          name xs:string          theta angle          totalY xs:double          totalX xs:double          staStart xs:double          state stateType          tanLong xs:double          tanShort xs:double          oID xs:string
annotation	documentation An "infinite" spiral radius is denoted by the value "INF". documentation This conforms to XML Schema which defines infinity as "INF" or "-INF" for all numeric datatypes
source	<xs:element name="Spiral">   <xs:annotation>     <xs:documentation>An "infinite" spiral radius is denoted by the value "INF". </xs:documentation>     <xs:documentation>This conforms to XML Schema which defines infinity as "INF" or "-INF" for all numeric datatypes </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="3" maxOccurs="3">         <xs:element ref="Start"/>         <xs:element ref="PI"/>         <xs:element ref="End"/>       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="length" type="xs:double" use="required"/>     <xs:attribute name="radiusEnd" type="xs:double" use="required"/>     <xs:attribute name="radiusStart" type="xs:double" use="required"/>     <xs:attribute name="rot" type="clockwise" use="required"/>     <xs:attribute name="spiType" type="spiralType" use="required"/>     <xs:attribute name="chord" type="xs:double"/>     <xs:attribute name="constant" type="xs:double"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="dirEnd" type="direction"/>     <xs:attribute name="dirStart" type="direction"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="theta" type="angle"/>     <xs:attribute name="totalY" type="xs:double"/>     <xs:attribute name="totalX" type="xs:double"/>     <xs:attribute name="staStart" type="xs:double"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="tanLong" type="xs:double"/>     <xs:attribute name="tanShort" type="xs:double"/>     <xs:attribute name="oID" type="xs:string"/>   </xs:complexType> </xs:element>

attribute Spiral/@length

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="length" type="xs:double" use="required"/>

attribute Spiral/@radiusEnd

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="radiusEnd" type="xs:double" use="required"/>

attribute Spiral/@radiusStart

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="radiusStart" type="xs:double" use="required"/>

attribute Spiral/@rot

type	clockwise
properties	isRef  0 use  required
facets	enumeration  cw enumeration  ccw
source	<xs:attribute name="rot" type="clockwise" use="required"/>

attribute Spiral/@spiType

type	spiralType
properties	isRef  0 use  required
facets	enumeration  biquadratic enumeration  bloss enumeration  clothoid enumeration  cosine enumeration  cubic enumeration  sinusoid enumeration  revBiquadratic enumeration  revBloss enumeration  revCosine enumeration  revSinusoid enumeration  sineHalfWave enumeration  biquadraticParabola enumeration  cubicParabola enumeration  japaneseCubic enumeration  radioid enumeration  weinerBogen
source	<xs:attribute name="spiType" type="spiralType" use="required"/>

attribute Spiral/@chord

type	xs:double
properties	isRef  0
source	<xs:attribute name="chord" type="xs:double"/>

attribute Spiral/@constant

type	xs:double
properties	isRef  0
source	<xs:attribute name="constant" type="xs:double"/>

attribute Spiral/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Spiral/@dirEnd

type	direction
properties	isRef  0
source	<xs:attribute name="dirEnd" type="direction"/>

attribute Spiral/@dirStart

type	direction
properties	isRef  0
source	<xs:attribute name="dirStart" type="direction"/>

attribute Spiral/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Spiral/@theta

type	angle
properties	isRef  0
source	<xs:attribute name="theta" type="angle"/>

attribute Spiral/@totalY

type	xs:double
properties	isRef  0
source	<xs:attribute name="totalY" type="xs:double"/>

attribute Spiral/@totalX

type	xs:double
properties	isRef  0
source	<xs:attribute name="totalX" type="xs:double"/>

attribute Spiral/@staStart

type	xs:double
properties	isRef  0
source	<xs:attribute name="staStart" type="xs:double"/>

attribute Spiral/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute Spiral/@tanLong

type	xs:double
properties	isRef  0
source	<xs:attribute name="tanLong" type="xs:double"/>

attribute Spiral/@tanShort

type	xs:double
properties	isRef  0
source	<xs:attribute name="tanShort" type="xs:double"/>

attribute Spiral/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>
