element Curve

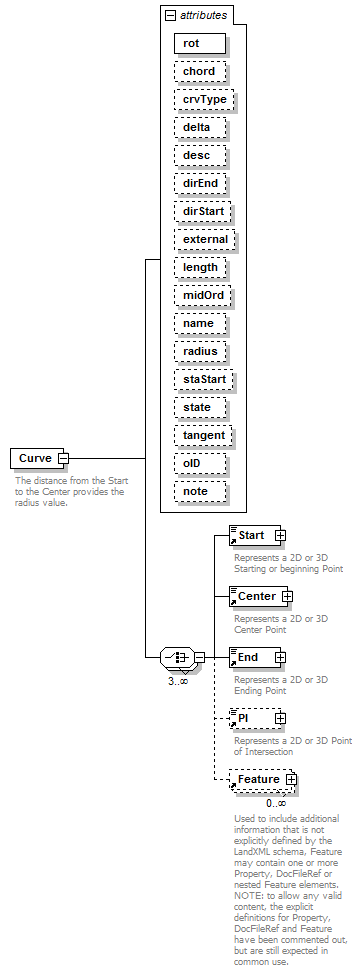

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start Center End PI Feature
used by	elements  CoordGeom Curve1 Curve2
attributes	Name   Type   Use   Default   Fixed   annotation rot clockwise required         chord xs:double          crvType curveType          delta angle          desc xs:string          dirEnd direction          dirStart direction          external xs:double          length xs:double          midOrd xs:double          name xs:string          radius xs:double          staStart xs:double          state stateType          tangent xs:double          oID xs:string          note xs:string
annotation	documentation The distance from the Start to the Center provides the radius value. documentation The rotation attribute "rot" defines whether the arc travels clockwise or counter-clockwise from the Start to End point.
source	<xs:element name="Curve">   <xs:annotation>     <xs:documentation>The distance from the Start to the Center provides the radius value.</xs:documentation>     <xs:documentation>The rotation attribute "rot" defines whether the arc travels clockwise or counter-clockwise from the Start to End point.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice minOccurs="3" maxOccurs="unbounded">       <xs:element ref="Start"/>       <xs:element ref="Center"/>       <xs:element ref="End"/>       <xs:element ref="PI" minOccurs="0"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="rot" type="clockwise" use="required"/>     <xs:attribute name="chord" type="xs:double"/>     <xs:attribute name="crvType" type="curveType"/>     <xs:attribute name="delta" type="angle"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="dirEnd" type="direction"/>     <xs:attribute name="dirStart" type="direction"/>     <xs:attribute name="external" type="xs:double"/>     <xs:attribute name="length" type="xs:double"/>     <xs:attribute name="midOrd" type="xs:double"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="radius" type="xs:double"/>     <xs:attribute name="staStart" type="xs:double"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="tangent" type="xs:double"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="note" type="xs:string"/>   </xs:complexType> </xs:element>

attribute Curve/@rot

type	clockwise
properties	isRef  0 use  required
facets	enumeration  cw enumeration  ccw
source	<xs:attribute name="rot" type="clockwise" use="required"/>

attribute Curve/@chord

type	xs:double
properties	isRef  0
source	<xs:attribute name="chord" type="xs:double"/>

attribute Curve/@crvType

type	curveType
properties	isRef  0
facets	enumeration  arc enumeration  chord
source	<xs:attribute name="crvType" type="curveType"/>

attribute Curve/@delta

type	angle
properties	isRef  0
source	<xs:attribute name="delta" type="angle"/>

attribute Curve/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Curve/@dirEnd

type	direction
properties	isRef  0
source	<xs:attribute name="dirEnd" type="direction"/>

attribute Curve/@dirStart

type	direction
properties	isRef  0
source	<xs:attribute name="dirStart" type="direction"/>

attribute Curve/@external

type	xs:double
properties	isRef  0
source	<xs:attribute name="external" type="xs:double"/>

attribute Curve/@length

type	xs:double
properties	isRef  0
source	<xs:attribute name="length" type="xs:double"/>

attribute Curve/@midOrd

type	xs:double
properties	isRef  0
source	<xs:attribute name="midOrd" type="xs:double"/>

attribute Curve/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Curve/@radius

type	xs:double
properties	isRef  0
source	<xs:attribute name="radius" type="xs:double"/>

attribute Curve/@staStart

type	xs:double
properties	isRef  0
source	<xs:attribute name="staStart" type="xs:double"/>

attribute Curve/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute Curve/@tangent

type	xs:double
properties	isRef  0
source	<xs:attribute name="tangent" type="xs:double"/>

attribute Curve/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute Curve/@note

type	xs:string
properties	isRef  0
source	<xs:attribute name="note" type="xs:string"/>
