element Zone

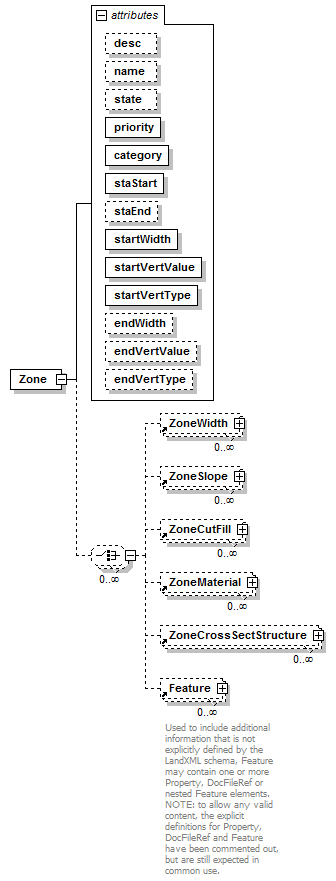

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	ZoneWidth ZoneSlope ZoneCutFill ZoneMaterial ZoneCrossSectStructure Feature
used by	element  Zones
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          state stateType          priority xs:int required         category zoneCategoryType required         staStart station required         staEnd station          startWidth xs:double required         startVertValue xs:double required         startVertType zoneVertType required         endWidth xs:double          endVertValue xs:double          endVertType zoneVertType
source	<xs:element name="Zone">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="ZoneWidth" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="ZoneSlope" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="ZoneCutFill" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="ZoneMaterial" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="ZoneCrossSectStructure" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="priority" type="xs:int" use="required"/>     <xs:attribute name="category" type="zoneCategoryType" use="required"/>     <xs:attribute name="staStart" type="station" use="required"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="startWidth" type="xs:double" use="required"/>     <xs:attribute name="startVertValue" type="xs:double" use="required"/>     <xs:attribute name="startVertType" type="zoneVertType" use="required"/>     <xs:attribute name="endWidth" type="xs:double"/>     <xs:attribute name="endVertValue" type="xs:double"/>     <xs:attribute name="endVertType" type="zoneVertType"/>   </xs:complexType> </xs:element>

attribute Zone/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Zone/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Zone/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute Zone/@priority

type	xs:int
properties	isRef  0 use  required
source	<xs:attribute name="priority" type="xs:int" use="required"/>

attribute Zone/@category

type	zoneCategoryType
properties	isRef  0 use  required
facets	enumeration  road surface enumeration  road subsurface enumeration  road shoulder enumeration  road foreSlope enumeration  road backSlope enumeration  road curb-gutter enumeration  bridge surface enumeration  bridge body enumeration  sidewalk enumeration  ground enumeration  ditch enumeration  wall enumeration  channel enumeration  bike facilities enumeration  obstruction offset enumeration  longitudinal barrier enumeration  sound barrier enumeration  bridge abutment enumeration  vertical pillar
source	<xs:attribute name="category" type="zoneCategoryType" use="required"/>

attribute Zone/@staStart

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staStart" type="station" use="required"/>

attribute Zone/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute Zone/@startWidth

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="startWidth" type="xs:double" use="required"/>

attribute Zone/@startVertValue

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="startVertValue" type="xs:double" use="required"/>

attribute Zone/@startVertType

type	zoneVertType
properties	isRef  0 use  required
facets	enumeration  slope enumeration  vertical distance
source	<xs:attribute name="startVertType" type="zoneVertType" use="required"/>

attribute Zone/@endWidth

type	xs:double
properties	isRef  0
source	<xs:attribute name="endWidth" type="xs:double"/>

attribute Zone/@endVertValue

type	xs:double
properties	isRef  0
source	<xs:attribute name="endVertValue" type="xs:double"/>

attribute Zone/@endVertType

type	zoneVertType
properties	isRef  0
facets	enumeration  slope enumeration  vertical distance
source	<xs:attribute name="endVertType" type="zoneVertType"/>
