element ZoneWidth

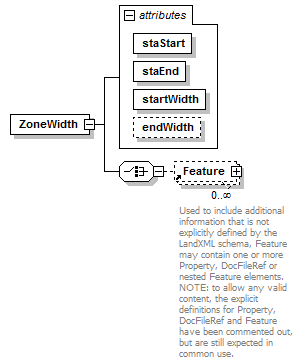

diagram LandXML-1.2Doc_p210.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstationrequired
staEndstationrequired
startWidthxs:doublerequired
endWidthxs:double
source <xs:element name="ZoneWidth">

<xs:complexType>

<xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station" use="required"/>

<xs:attribute name="staEnd" type="station" use="required"/>

<xs:attribute name="startWidth" type="xs:double" use="required"/>

<xs:attribute name="endWidth" type="xs:double"/>

</xs:complexType>
</xs:element>

attribute ZoneWidth/@staStart
type station
properties
isRef 0
use required
source <xs:attribute name="staStart" type="station" use="required"/>

attribute ZoneWidth/@staEnd
type station
properties
isRef 0
use required
source <xs:attribute name="staEnd" type="station" use="required"/>

attribute ZoneWidth/@startWidth
type xs:double
properties
isRef 0
use required
source <xs:attribute name="startWidth" type="xs:double" use="required"/>

attribute ZoneWidth/@endWidth
type xs:double
properties
isRef 0
source <xs:attribute name="endWidth" type="xs:double"/>
