element ZoneCrossSectStructure

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PntList2D Feature
used by	element  Zone
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          innerConnectPnt crossSectionPnt required         outerConnectPnt crossSectionPnt required         offsetMode zoneOffsetType    zone      startOffset offsetDistance    0.0      startOffsetElev offsetElevation    0.0      endOffset offsetDistance    0.0      endOffsetElev offsetElevation    0.0      transition zoneTransitionType    parallel      placement zonePlacementType    dependent      catalogReference xs:anyURI optional

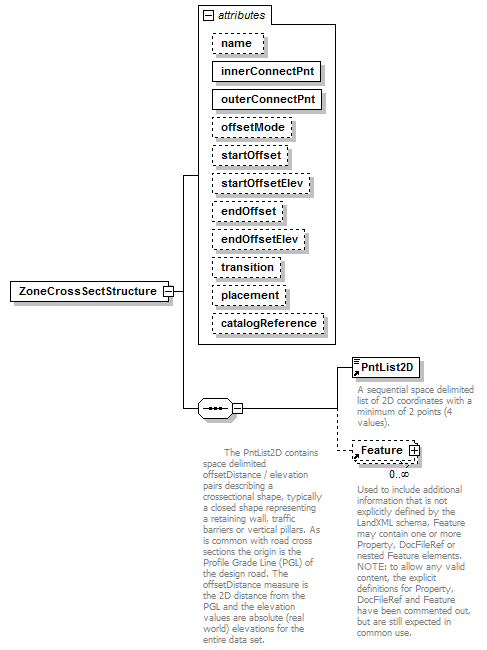

source	<xs:element name="ZoneCrossSectStructure">   <xs:complexType>     <xs:sequence>       <xs:annotation>         <xs:documentation>         The PntList2D contains space delimited offsetDistance / elevation pairs describing a crossectional shape, typically a closed shape representing a retaining wall, traffic barriers or vertical pillars. As is common with road cross sections the origin is the Profile Grade Line (PGL) of the design road. The offsetDistance measure is the 2D distance from the PGL and the elevation values are absolute (real world) elevations for the entire data set.</xs:documentation>       </xs:annotation>       <xs:element ref="PntList2D"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="innerConnectPnt" type="crossSectionPnt" use="required"/>     <xs:attribute name="outerConnectPnt" type="crossSectionPnt" use="required"/>     <xs:attribute name="offsetMode" type="zoneOffsetType" default="zone"/>     <xs:attribute name="startOffset" type="offsetDistance" default="0.0"/>     <xs:attribute name="startOffsetElev" type="offsetElevation" default="0.0"/>     <xs:attribute name="endOffset" type="offsetDistance" default="0.0"/>     <xs:attribute name="endOffsetElev" type="offsetElevation" default="0.0"/>     <xs:attribute name="transition" type="zoneTransitionType" default="parallel"/>     <xs:attribute name="placement" type="zonePlacementType" default="dependent"/>     <xs:attribute name="catalogReference" type="xs:anyURI" use="optional"/>   </xs:complexType> </xs:element>

attribute ZoneCrossSectStructure/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute ZoneCrossSectStructure/@innerConnectPnt

type	crossSectionPnt
properties	isRef  0 use  required
facets	length  2
source	<xs:attribute name="innerConnectPnt" type="crossSectionPnt" use="required"/>

attribute ZoneCrossSectStructure/@outerConnectPnt

type	crossSectionPnt
properties	isRef  0 use  required
facets	length  2
source	<xs:attribute name="outerConnectPnt" type="crossSectionPnt" use="required"/>

attribute ZoneCrossSectStructure/@offsetMode

type	zoneOffsetType
properties	isRef  0 default  zone
facets	enumeration  centerline enumeration  zone
source	<xs:attribute name="offsetMode" type="zoneOffsetType" default="zone"/>

attribute ZoneCrossSectStructure/@startOffset

type	offsetDistance
properties	isRef  0 default  0.0
source	<xs:attribute name="startOffset" type="offsetDistance" default="0.0"/>

attribute ZoneCrossSectStructure/@startOffsetElev

type	offsetElevation
properties	isRef  0 default  0.0
source	<xs:attribute name="startOffsetElev" type="offsetElevation" default="0.0"/>

attribute ZoneCrossSectStructure/@endOffset

type	offsetDistance
properties	isRef  0 default  0.0
source	<xs:attribute name="endOffset" type="offsetDistance" default="0.0"/>

attribute ZoneCrossSectStructure/@endOffsetElev

type	offsetElevation
properties	isRef  0 default  0.0
source	<xs:attribute name="endOffsetElev" type="offsetElevation" default="0.0"/>

attribute ZoneCrossSectStructure/@transition

type	zoneTransitionType
properties	isRef  0 default  parallel
facets	enumeration  parallel enumeration  linear
source	<xs:attribute name="transition" type="zoneTransitionType" default="parallel"/>

attribute ZoneCrossSectStructure/@placement

type	zonePlacementType
properties	isRef  0 default  dependent
facets	enumeration  dependent enumeration  independent
source	<xs:attribute name="placement" type="zonePlacementType" default="dependent"/>

attribute ZoneCrossSectStructure/@catalogReference

type	xs:anyURI
properties	isRef  0 use  optional
source	<xs:attribute name="catalogReference" type="xs:anyURI" use="optional"/>
