element ZoneSlope

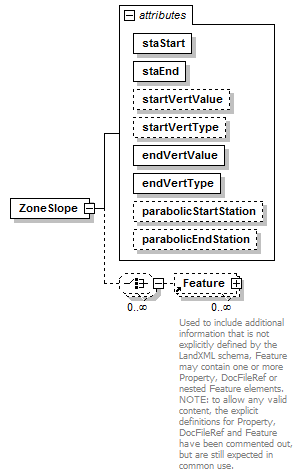

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Zone
attributes	Name   Type   Use   Default   Fixed   annotation staStart station required         staEnd station required         startVertValue xs:double          startVertType zoneVertType          endVertValue xs:double required         endVertType zoneVertType required         parabolicStartStation station          parabolicEndStation station
source	<xs:element name="ZoneSlope">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station" use="required"/>     <xs:attribute name="staEnd" type="station" use="required"/>     <xs:attribute name="startVertValue" type="xs:double"/>     <xs:attribute name="startVertType" type="zoneVertType"/>     <xs:attribute name="endVertValue" type="xs:double" use="required"/>     <xs:attribute name="endVertType" type="zoneVertType" use="required"/>     <xs:attribute name="parabolicStartStation" type="station"/>     <xs:attribute name="parabolicEndStation" type="station"/>     <!-- changeType is a flag that indicates the use of slope or vertical change it can be either "slope" or "vertDistance"-->   </xs:complexType> </xs:element>

attribute ZoneSlope/@staStart

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staStart" type="station" use="required"/>

attribute ZoneSlope/@staEnd

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staEnd" type="station" use="required"/>

attribute ZoneSlope/@startVertValue

type	xs:double
properties	isRef  0
source	<xs:attribute name="startVertValue" type="xs:double"/>

attribute ZoneSlope/@startVertType

type	zoneVertType
properties	isRef  0
facets	enumeration  slope enumeration  vertical distance
source	<xs:attribute name="startVertType" type="zoneVertType"/>

attribute ZoneSlope/@endVertValue

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="endVertValue" type="xs:double" use="required"/>

attribute ZoneSlope/@endVertType

type	zoneVertType
properties	isRef  0 use  required
facets	enumeration  slope enumeration  vertical distance
source	<xs:attribute name="endVertType" type="zoneVertType" use="required"/>

attribute ZoneSlope/@parabolicStartStation

type	station
properties	isRef  0
source	<xs:attribute name="parabolicStartStation" type="station"/>

attribute ZoneSlope/@parabolicEndStation

type	station
properties	isRef  0
source	<xs:attribute name="parabolicEndStation" type="station"/>
