element Surface

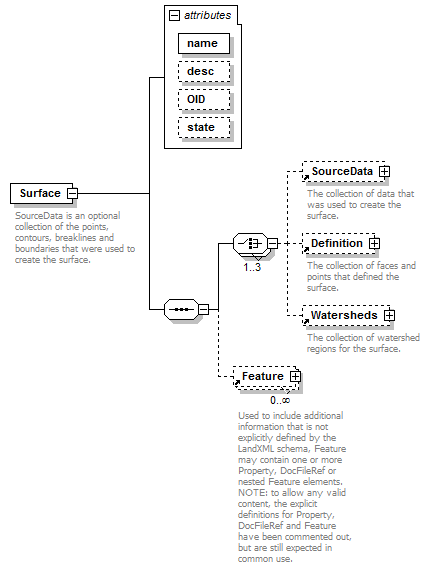

diagram LandXML-1.2Doc_p176.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children SourceData Definition Watersheds Feature
used by
element Surfaces
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:stringrequired
descxs:string
OIDxs:string
statestateType
annotation
documentation
SourceData is an optional collection of the points, contours, breaklines and boundaries that were used to create the surface.
documentation
Definition is a collection of points and faces that define the surface.
documentation
Watersheds is a collection the watershed boundaries for the surface.
source <xs:element name="Surface">

<xs:annotation>

<xs:documentation>SourceData is an optional collection of the points, contours, breaklines and boundaries that were used to create the surface.</xs:documentation>

<xs:documentation>Definition is a collection of points and faces that define the surface.</xs:documentation>

<xs:documentation>Watersheds is a collection the watershed boundaries for the surface.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:choice maxOccurs="3">

<xs:element ref="SourceData" minOccurs="0"/>

<xs:element ref="Definition" minOccurs="0"/>

<xs:element ref="Watersheds" minOccurs="0"/>

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="OID" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>
</xs:element>

attribute Surface/@name
type xs:string
properties
isRef 0
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute Surface/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute Surface/@OID
type xs:string
properties
isRef 0
source <xs:attribute name="OID" type="xs:string"/>

attribute Surface/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>
