element Definition

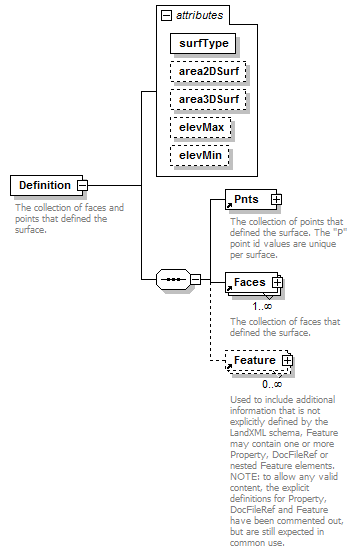

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Pnts Faces Feature
used by	element  Surface
attributes	Name   Type   Use   Default   Fixed   annotation surfType surfTypeEnum required         area2DSurf xs:double          area3DSurf xs:double          elevMax xs:double          elevMin xs:double
annotation	documentation The collection of faces and points that defined the surface.
source	<xs:element name="Definition">   <xs:annotation>     <xs:documentation>The collection of faces and points that defined the surface.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Pnts"/>       <xs:element ref="Faces" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="surfType" type="surfTypeEnum" use="required"/>     <xs:attribute name="area2DSurf" type="xs:double"/>     <xs:attribute name="area3DSurf" type="xs:double"/>     <xs:attribute name="elevMax" type="xs:double"/>     <xs:attribute name="elevMin" type="xs:double"/>   </xs:complexType> </xs:element>

attribute Definition/@surfType

type	surfTypeEnum
properties	isRef  0 use  required
facets	enumeration  TIN enumeration  grid
source	<xs:attribute name="surfType" type="surfTypeEnum" use="required"/>

attribute Definition/@area2DSurf

type	xs:double
properties	isRef  0
source	<xs:attribute name="area2DSurf" type="xs:double"/>

attribute Definition/@area3DSurf

type	xs:double
properties	isRef  0
source	<xs:attribute name="area3DSurf" type="xs:double"/>

attribute Definition/@elevMax

type	xs:double
properties	isRef  0
source	<xs:attribute name="elevMax" type="xs:double"/>

attribute Definition/@elevMin

type	xs:double
properties	isRef  0
source	<xs:attribute name="elevMin" type="xs:double"/>
