element Surfaces

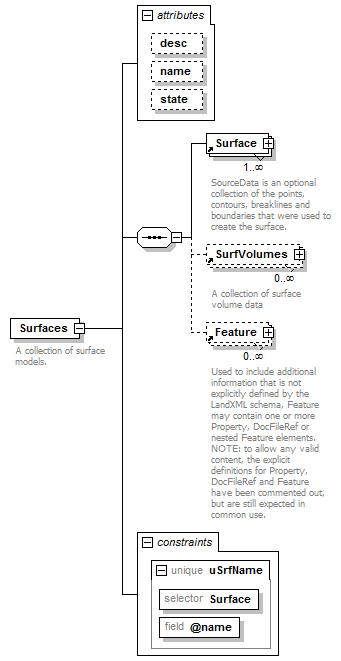

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Surface SurfVolumes Feature
used by	element  LandXML
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          state stateType
identity constraints	Name   Refer   Selector   Field(s)   unique   uSrfName      Surface   @name
annotation	documentation A collection of surface models.
source	<xs:element name="Surfaces">   <xs:annotation>     <xs:documentation>A collection of surface models.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Surface" maxOccurs="unbounded"/>       <xs:element ref="SurfVolumes" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType>   <xs:unique name="uSrfName">     <xs:selector xpath="Surface"/>     <xs:field xpath="@name"/>   </xs:unique> </xs:element>

attribute Surfaces/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Surfaces/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Surfaces/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
