element SurfVolumes

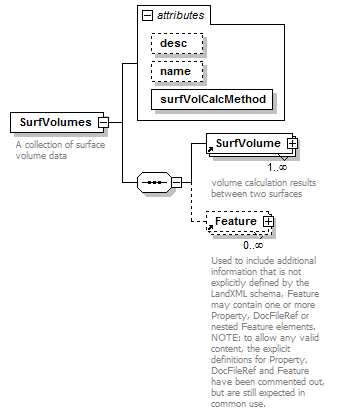

diagram LandXML-1.2Doc_p179.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children SurfVolume Feature
used by
element Surfaces
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
namexs:string
surfVolCalcMethodsurfVolCMethodTyperequired
annotation
documentation
A collection of surface volume data
source <xs:element name="SurfVolumes">

<xs:annotation>

<xs:documentation>A collection of surface volume data</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="SurfVolume" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="surfVolCalcMethod" type="surfVolCMethodType" use="required"/>

</xs:complexType>
</xs:element>

attribute SurfVolumes/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute SurfVolumes/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute SurfVolumes/@surfVolCalcMethod
type surfVolCMethodType
properties
isRef 0
use required
facets
enumeration grid
enumeration composite
source <xs:attribute name="surfVolCalcMethod" type="surfVolCMethodType" use="required"/>
