element SurfVolume

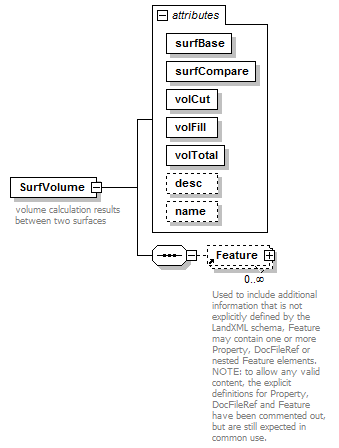

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  SurfVolumes
attributes	Name   Type   Use   Default   Fixed   annotation surfBase surfaceNameRef required         surfCompare surfaceNameRef required         volCut xs:double required         volFill xs:double required         volTotal xs:double required         desc xs:string          name xs:string
annotation	documentation volume calculation results between two surfaces
source	<xs:element name="SurfVolume">   <xs:annotation>     <xs:documentation>volume calculation results between two surfaces</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="surfBase" type="surfaceNameRef" use="required"/>     <xs:attribute name="surfCompare" type="surfaceNameRef" use="required"/>     <xs:attribute name="volCut" type="xs:double" use="required"/>     <xs:attribute name="volFill" type="xs:double" use="required"/>     <xs:attribute name="volTotal" type="xs:double" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>   </xs:complexType> </xs:element>

attribute SurfVolume/@surfBase

type	surfaceNameRef
properties	isRef  0 use  required
source	<xs:attribute name="surfBase" type="surfaceNameRef" use="required"/>

attribute SurfVolume/@surfCompare

type	surfaceNameRef
properties	isRef  0 use  required
source	<xs:attribute name="surfCompare" type="surfaceNameRef" use="required"/>

attribute SurfVolume/@volCut

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="volCut" type="xs:double" use="required"/>

attribute SurfVolume/@volFill

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="volFill" type="xs:double" use="required"/>

attribute SurfVolume/@volTotal

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="volTotal" type="xs:double" use="required"/>

attribute SurfVolume/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute SurfVolume/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>
