element SourceData

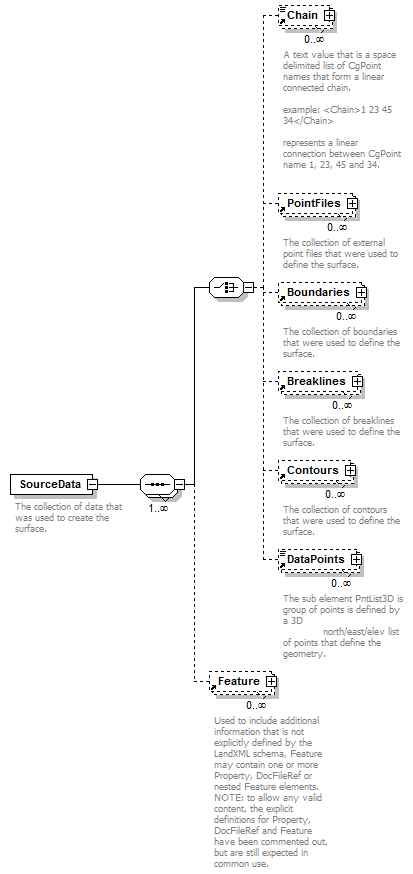

diagram LandXML-1.2Doc_p164.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Chain PointFiles Boundaries Breaklines Contours DataPoints Feature
used by
element Surface
annotation
documentation
The collection of data that was used to create the surface.
source <xs:element name="SourceData">

<xs:annotation>

<xs:documentation>The collection of data that was used to create the surface.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:choice>

<xs:element ref="Chain" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="PointFiles" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Boundaries" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Breaklines" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Contours" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="DataPoints" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>
