element DataPoints

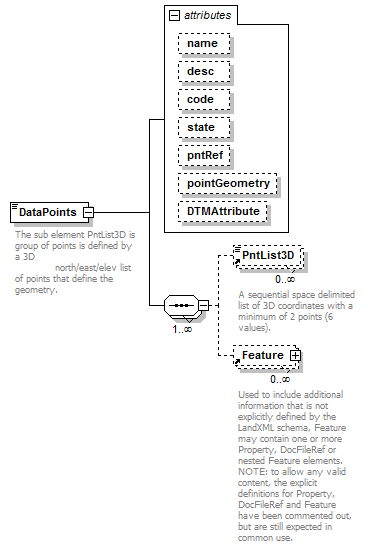

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex mixed  true
children	PntList3D Feature
used by	element  SourceData
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          pointGeometry pointGeometryType          DTMAttribute DTMAttributeType
annotation	documentation The sub element PntList3D is group of points is defined by a 3D north/east/elev list of points that define the geometry.
source	<xs:element name="DataPoints">   <xs:annotation>     <xs:documentation>The sub element PntList3D is group of points is defined by a 3D north/east/elev list of points that define the geometry.</xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:sequence maxOccurs="unbounded">       <xs:element ref="PntList3D" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="code" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="pntRef" type="pointNameRef"/>     <xs:attribute name="pointGeometry" type="pointGeometryType"/>     <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>   </xs:complexType> </xs:element>

attribute DataPoints/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute DataPoints/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute DataPoints/@code

type	xs:string
properties	isRef  0
source	<xs:attribute name="code" type="xs:string"/>

attribute DataPoints/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute DataPoints/@pntRef

type	pointNameRef
properties	isRef  0
source	<xs:attribute name="pntRef" type="pointNameRef"/>

attribute DataPoints/@pointGeometry

type	pointGeometryType
properties	isRef  0
facets	enumeration  point enumeration  curve
source	<xs:attribute name="pointGeometry" type="pointGeometryType"/>

attribute DataPoints/@DTMAttribute

type	DTMAttributeType
properties	isRef  0
facets	enumeration  determinebyfeature enumeration  donotinclude enumeration  spot enumeration  spotandbreak enumeration  void enumeration  drapevoid enumeration  breakvoid enumeration  island enumeration  boundary enumeration  contour enumeration  feature enumeration  ground enumeration  xsection enumeration  user
source	<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>
