element Breaklines

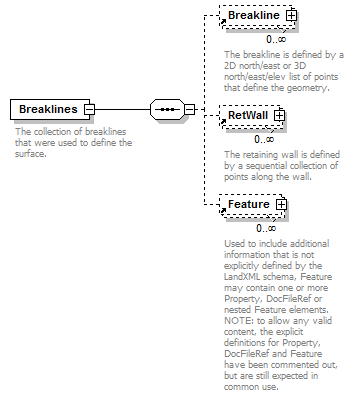

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Breakline RetWall Feature
used by	element  SourceData
annotation	documentation The collection of breaklines that were used to define the surface. documentation Use is optional.
source	<xs:element name="Breaklines">   <xs:annotation>     <xs:documentation>The collection of breaklines that were used to define the surface.</xs:documentation>     <xs:documentation>Use is optional.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Breakline" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="RetWall" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>
