element Struct

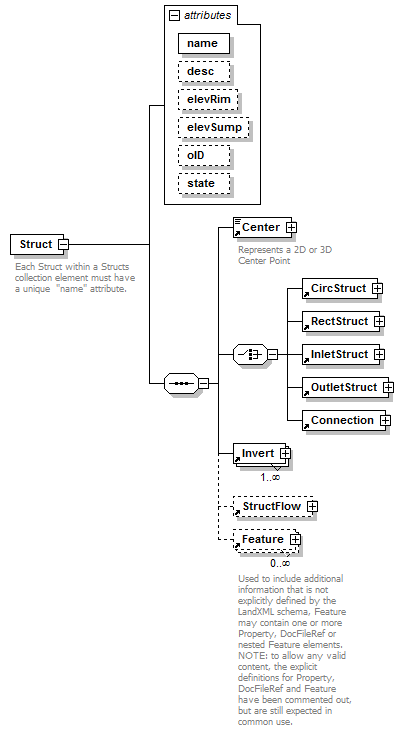

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Center CircStruct RectStruct InletStruct OutletStruct Connection Invert StructFlow Feature
used by	element  Structs
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         desc xs:string          elevRim xs:double          elevSump xs:double          oID xs:string          state stateType
annotation	documentation Each Struct within a Structs collection element must have a unique  "name" attribute. documentation The structure type is determined by the existance of one of the following elements: CircStruct or RectStruct. documentation The Center element will contain the "north east" coordinate text value or a CgPoint "refPnt" attribute. documentation Each Invert element contains a "refPipe" attribute to reference a Pipe element  "name"
source	<xs:element name="Struct">   <xs:annotation>     <xs:documentation>Each Struct within a Structs collection element must have a unique  "name" attribute.</xs:documentation>     <xs:documentation>The structure type is determined by the existance of one of the following elements: CircStruct or RectStruct.</xs:documentation>     <xs:documentation>The Center element will contain the "north east" coordinate text value or a CgPoint "refPnt" attribute.</xs:documentation>     <xs:documentation>Each Invert element contains a "refPipe" attribute to reference a Pipe element  "name"</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Center"/>       <xs:choice>         <xs:element ref="CircStruct"/>         <xs:element ref="RectStruct"/>         <xs:element ref="InletStruct"/>         <xs:element ref="OutletStruct"/>         <xs:element ref="Connection"/>       </xs:choice>       <xs:element ref="Invert" maxOccurs="unbounded"/>       <xs:element ref="StructFlow" minOccurs="0"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="elevRim" type="xs:double"/>     <xs:attribute name="elevSump" type="xs:double"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Struct/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Struct/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Struct/@elevRim

type	xs:double
properties	isRef  0
source	<xs:attribute name="elevRim" type="xs:double"/>

attribute Struct/@elevSump

type	xs:double
properties	isRef  0
source	<xs:attribute name="elevSump" type="xs:double"/>

attribute Struct/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute Struct/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
