element CircStruct

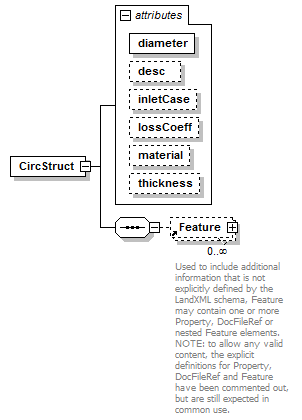

diagram LandXML-1.2Doc_p33.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Struct
attributes
Name  Type  Use  Default  Fixed  annotation
diameterxs:doublerequired
descxs:string
inletCase
lossCoeffxs:double
material
thicknessxs:double
source <xs:element name="CircStruct">

<xs:annotation>

<xs:documentation/>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="diameter" type="xs:double" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="inletCase"/>

<xs:attribute name="lossCoeff" type="xs:double"/>

<xs:attribute name="material"/>

<xs:attribute name="thickness" type="xs:double"/>

</xs:complexType>
</xs:element>

attribute CircStruct/@diameter
type xs:double
properties
isRef 0
use required
source <xs:attribute name="diameter" type="xs:double" use="required"/>

attribute CircStruct/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute CircStruct/@inletCase
properties
isRef 0
source <xs:attribute name="inletCase"/>

attribute CircStruct/@lossCoeff
type xs:double
properties
isRef 0
source <xs:attribute name="lossCoeff" type="xs:double"/>

attribute CircStruct/@material
properties
isRef 0
source <xs:attribute name="material"/>

attribute CircStruct/@thickness
type xs:double
properties
isRef 0
source <xs:attribute name="thickness" type="xs:double"/>
