element Structs

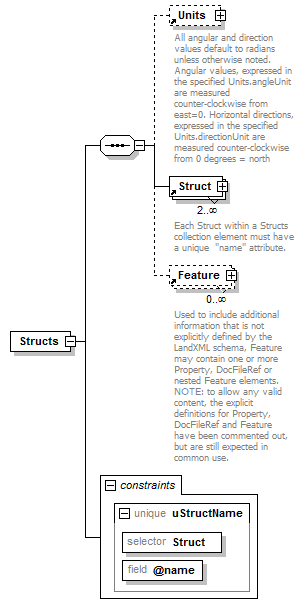

diagram LandXML-1.2Doc_p174.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Units Struct Feature
used by
element PipeNetwork
identity constraints
  Name  Refer  Selector  Field(s)
unique  uStructName    Struct  @name
source <xs:element name="Structs">

<xs:annotation>

<xs:documentation/>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Units" minOccurs="0"/>

<xs:element ref="Struct" minOccurs="2" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

<xs:unique name="uStructName">

<xs:selector xpath="Struct"/>

<xs:field xpath="@name"/>

</xs:unique>
</xs:element>
