element Pipe

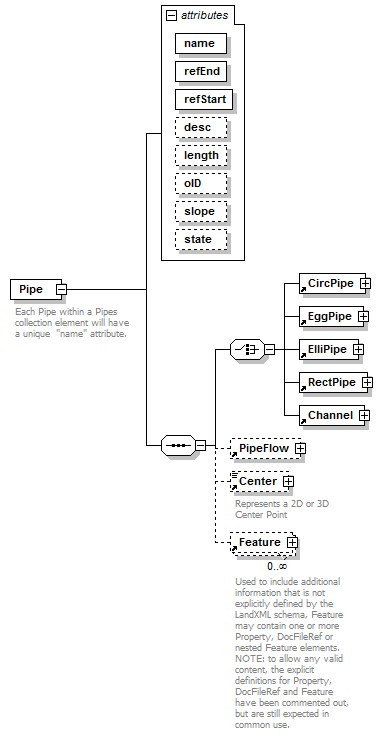

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CircPipe EggPipe ElliPipe RectPipe Channel PipeFlow Center Feature
used by	element  Pipes
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         refEnd structNameRef required         refStart structNameRef required         desc xs:string          length xs:double          oID xs:string          slope xs:double          state stateType
annotation	documentation Each Pipe within a Pipes collection element will have a unique  "name" attribute. documentation The pipe type is determined by the existance of one of the following elements: CircPipe, ElliPipe or RectPipe. documentation The "startRef and "endRef" attributes reference Struct "name" values. documentation The start and end invert elevations for the pipe are defined in the Invert elements of referenced structures. documentation Since a struct may have more than one Invert element, the Invert "pipeRef" attribute is used to select the correct invert element.
source	<xs:element name="Pipe">   <xs:annotation>     <xs:documentation>Each Pipe within a Pipes collection element will have a unique  "name" attribute.</xs:documentation>     <xs:documentation>The pipe type is determined by the existance of one of the following elements: CircPipe, ElliPipe or RectPipe.</xs:documentation>     <xs:documentation>The "startRef and "endRef" attributes reference Struct "name" values.</xs:documentation>     <xs:documentation>The start and end invert elevations for the pipe are defined in the Invert elements of referenced structures.</xs:documentation>     <xs:documentation>Since a struct may have more than one Invert element, the Invert "pipeRef" attribute is used to select the correct invert element.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element ref="CircPipe"/>         <xs:element ref="EggPipe"/>         <xs:element ref="ElliPipe"/>         <xs:element ref="RectPipe"/>         <xs:element ref="Channel"/>       </xs:choice>       <xs:element ref="PipeFlow" minOccurs="0"/>       <xs:element ref="Center" minOccurs="0"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       <!-- <Center> point of the Pipe is the point of center on the curved pipe arc.  If this optional element is specified, then the pipe starts at refStart, passes through the <Center> point, and end at refEnd. -->     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="refEnd" type="structNameRef" use="required"/>     <xs:attribute name="refStart" type="structNameRef" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="length" type="xs:double"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="slope" type="xs:double"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Pipe/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Pipe/@refEnd

type	structNameRef
properties	isRef  0 use  required
source	<xs:attribute name="refEnd" type="structNameRef" use="required"/>

attribute Pipe/@refStart

type	structNameRef
properties	isRef  0 use  required
source	<xs:attribute name="refStart" type="structNameRef" use="required"/>

attribute Pipe/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Pipe/@length

type	xs:double
properties	isRef  0
source	<xs:attribute name="length" type="xs:double"/>

attribute Pipe/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute Pipe/@slope

type	xs:double
properties	isRef  0
source	<xs:attribute name="slope" type="xs:double"/>

attribute Pipe/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
