element ElliPipe

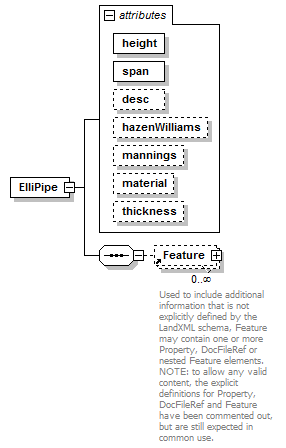

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Pipe
attributes	Name   Type   Use   Default   Fixed   annotation height xs:double required         span xs:double required         desc xs:string          hazenWilliams xs:double          mannings xs:double          material          thickness xs:double
source	<xs:element name="ElliPipe">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="height" type="xs:double" use="required"/>     <xs:attribute name="span" type="xs:double" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="hazenWilliams" type="xs:double"/>     <xs:attribute name="mannings" type="xs:double"/>     <xs:attribute name="material"/>     <xs:attribute name="thickness" type="xs:double"/>   </xs:complexType> </xs:element>

attribute ElliPipe/@height

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="height" type="xs:double" use="required"/>

attribute ElliPipe/@span

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="span" type="xs:double" use="required"/>

attribute ElliPipe/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute ElliPipe/@hazenWilliams

type	xs:double
properties	isRef  0
source	<xs:attribute name="hazenWilliams" type="xs:double"/>

attribute ElliPipe/@mannings

type	xs:double
properties	isRef  0
source	<xs:attribute name="mannings" type="xs:double"/>

attribute ElliPipe/@material

properties	isRef  0
source	<xs:attribute name="material"/>

attribute ElliPipe/@thickness

type	xs:double
properties	isRef  0
source	<xs:attribute name="thickness" type="xs:double"/>
