element Pipes

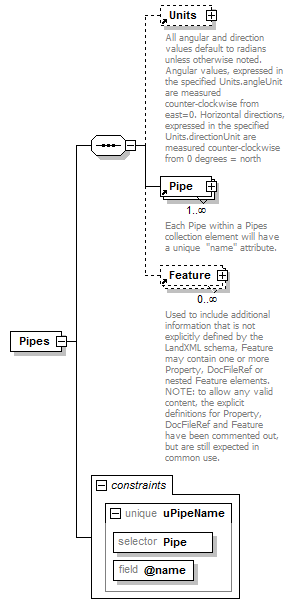

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Units Pipe Feature
used by	element  PipeNetwork
identity constraints	Name   Refer   Selector   Field(s)   unique   uPipeName      Pipe   @name
source	<xs:element name="Pipes">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Units" minOccurs="0"/>       <xs:element ref="Pipe" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType>   <xs:unique name="uPipeName">     <xs:selector xpath="Pipe"/>     <xs:field xpath="@name"/>   </xs:unique> </xs:element>
