element ObservationGroup

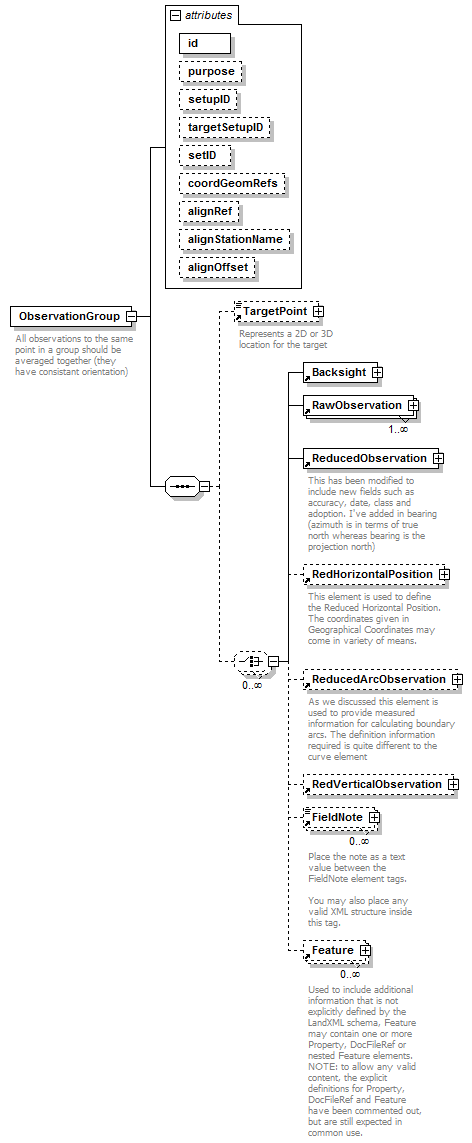

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TargetPoint Backsight RawObservation ReducedObservation RedHorizontalPosition ReducedArcObservation RedVerticalObservation FieldNote Feature
used by	elements  ControlChecks InstrumentSetup Survey
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         purpose purposeType          setupID xs:IDREF          targetSetupID xs:IDREF          setID          coordGeomRefs coordGeomNameRefs          alignRef alignmentNameRef          alignStationName xs:string          alignOffset offsetDistance
annotation	documentation All observations to the same point in a group should be averaged together (they have consistant orientation)
source	<xs:element name="ObservationGroup">   <xs:annotation>     <xs:documentation>All observations to the same point in a group should be averaged together (they have consistant orientation)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="TargetPoint" minOccurs="0"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="Backsight"/>         <xs:element ref="RawObservation" maxOccurs="unbounded"/>         <xs:element ref="ReducedObservation"/>         <xs:element ref="RedHorizontalPosition" minOccurs="0"/>         <xs:element ref="ReducedArcObservation" minOccurs="0"/>         <xs:element ref="RedVerticalObservation" minOccurs="0"/>         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID" use="required"/>     <xs:attribute name="purpose" type="purposeType"/>     <xs:attribute name="setupID" type="xs:IDREF"/>     <xs:attribute name="targetSetupID" type="xs:IDREF"/>     <xs:attribute name="setID"/>     <xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>     <xs:attribute name="alignRef" type="alignmentNameRef"/>     <xs:attribute name="alignStationName" type="xs:string"/>     <xs:attribute name="alignOffset" type="offsetDistance"/>     <!-- coordGeomRefs identifies one or more 'name' values that link to specific <Line>, <Curve>, <Spiral> or <IrregularLine> in a <CoordGeom> element. This allows linking an survey observation to specific <Parcel>.<CoordGeom> based geometry. -->     <!-- alignRef is the name of the alignment.        alignStationName is the station value where the rod reading is taken.        alignOffset is the signed (+/-) distance from the CL of the referenced alignment.  -->   </xs:complexType> </xs:element>

attribute ObservationGroup/@id

type	xs:ID
properties	isRef  0 use  required
source	<xs:attribute name="id" type="xs:ID" use="required"/>

attribute ObservationGroup/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute ObservationGroup/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>

attribute ObservationGroup/@targetSetupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="targetSetupID" type="xs:IDREF"/>

attribute ObservationGroup/@setID

properties	isRef  0
source	<xs:attribute name="setID"/>

attribute ObservationGroup/@coordGeomRefs

type	coordGeomNameRefs
properties	isRef  0
source	<xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>

attribute ObservationGroup/@alignRef

type	alignmentNameRef
properties	isRef  0
source	<xs:attribute name="alignRef" type="alignmentNameRef"/>

attribute ObservationGroup/@alignStationName

type	xs:string
properties	isRef  0
source	<xs:attribute name="alignStationName" type="xs:string"/>

attribute ObservationGroup/@alignOffset

type	offsetDistance
properties	isRef  0
source	<xs:attribute name="alignOffset" type="offsetDistance"/>
