element InstrumentSetup

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	InstrumentPoint Backsight TargetSetup RawObservation ObservationGroup ControlChecks FieldNote Feature
used by	element  Survey
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         instrumentDetailsID xs:IDREF          stationName xs:string required         instrumentHeight xs:double required         orientationAzimuth direction          circleAzimuth direction          status observationStatusType

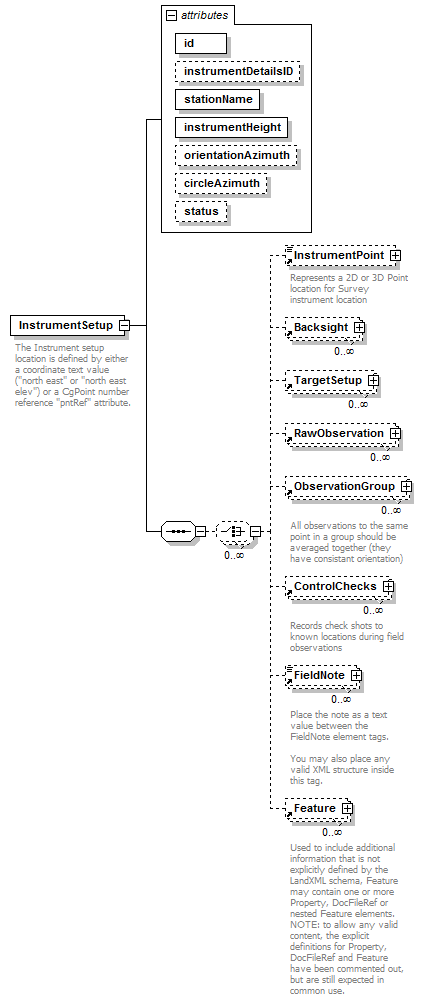

annotation	documentation The Instrument setup location is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.
source	<xs:element name="InstrumentSetup">   <xs:annotation>     <xs:documentation>The Instrument setup location is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="InstrumentPoint" minOccurs="0"/>         <xs:element ref="Backsight" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="TargetSetup" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="RawObservation" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="ObservationGroup" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="ControlChecks" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID" use="required"/>     <xs:attribute name="instrumentDetailsID" type="xs:IDREF"/>     <xs:attribute name="stationName" type="xs:string" use="required"/>     <xs:attribute name="instrumentHeight" type="xs:double" use="required"/>     <xs:attribute name="orientationAzimuth" type="direction"/>     <xs:attribute name="circleAzimuth" type="direction"/>     <xs:attribute name="status" type="observationStatusType"/>   </xs:complexType> </xs:element>

attribute InstrumentSetup/@id

type	xs:ID
properties	isRef  0 use  required
source	<xs:attribute name="id" type="xs:ID" use="required"/>

attribute InstrumentSetup/@instrumentDetailsID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="instrumentDetailsID" type="xs:IDREF"/>

attribute InstrumentSetup/@stationName

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="stationName" type="xs:string" use="required"/>

attribute InstrumentSetup/@instrumentHeight

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="instrumentHeight" type="xs:double" use="required"/>

attribute InstrumentSetup/@orientationAzimuth

type	direction
properties	isRef  0
source	<xs:attribute name="orientationAzimuth" type="direction"/>

attribute InstrumentSetup/@circleAzimuth

type	direction
properties	isRef  0
source	<xs:attribute name="circleAzimuth" type="direction"/>

attribute InstrumentSetup/@status

type	observationStatusType
properties	isRef  0
facets	enumeration  modified enumeration  deleted
source	<xs:attribute name="status" type="observationStatusType"/>
