element TargetSetup

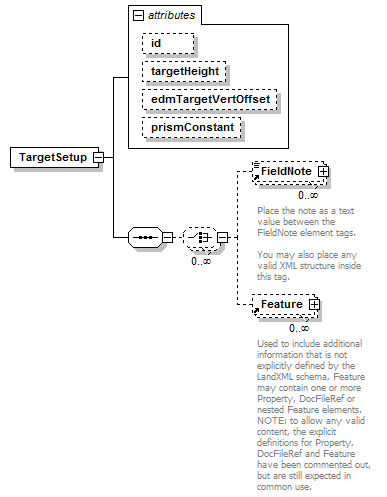

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	FieldNote Feature
used by	elements  GPSSetup InstrumentSetup LaserSetup Survey
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          targetHeight xs:double          edmTargetVertOffset xs:double          prismConstant xs:double
source	<xs:element name="TargetSetup">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID"/>     <xs:attribute name="targetHeight" type="xs:double"/>     <xs:attribute name="edmTargetVertOffset" type="xs:double"/>     <xs:attribute name="prismConstant" type="xs:double"/>     <!-- To allow for older style EDM's -->   </xs:complexType> </xs:element>

attribute TargetSetup/@id

type	xs:ID
properties	isRef  0
source	<xs:attribute name="id" type="xs:ID"/>

attribute TargetSetup/@targetHeight

type	xs:double
properties	isRef  0
source	<xs:attribute name="targetHeight" type="xs:double"/>

attribute TargetSetup/@edmTargetVertOffset

type	xs:double
properties	isRef  0
source	<xs:attribute name="edmTargetVertOffset" type="xs:double"/>

attribute TargetSetup/@prismConstant

type	xs:double
properties	isRef  0
source	<xs:attribute name="prismConstant" type="xs:double"/>
