element ReducedArcObservation

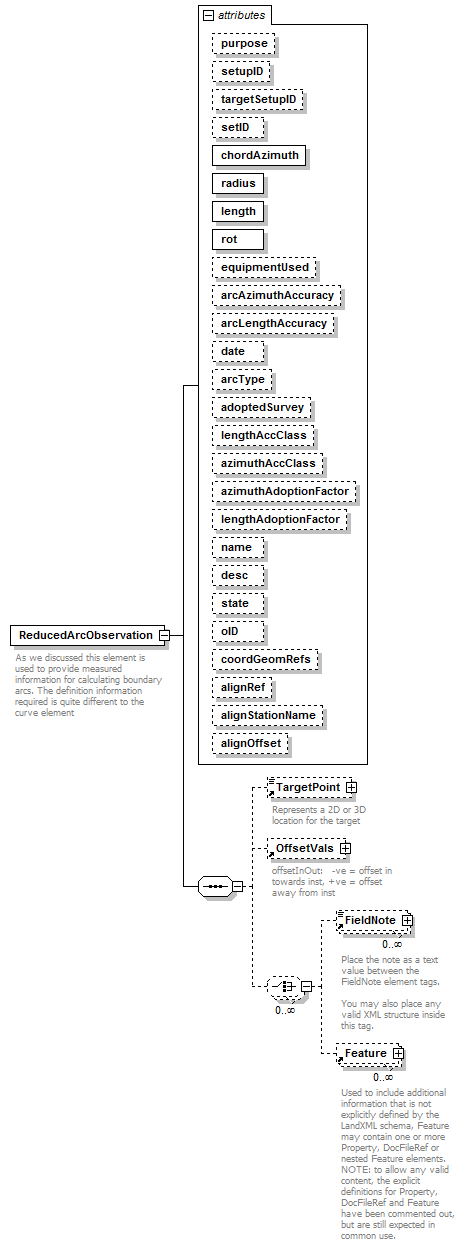

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TargetPoint OffsetVals FieldNote Feature
used by	element  ObservationGroup
attributes	Name   Type   Use   Default   Fixed   annotation purpose purposeType          setupID xs:IDREF          targetSetupID xs:IDREF          setID          chordAzimuth direction required         radius xs:double required         length xs:double required         rot clockwise required         equipmentUsed equipmentType          arcAzimuthAccuracy xs:double          arcLengthAccuracy xs:double          date xs:date          arcType xs:string          adoptedSurvey xs:string          lengthAccClass xs:string          azimuthAccClass xs:string          azimuthAdoptionFactor xs:double          lengthAdoptionFactor xs:double          name xs:string          desc xs:string          state stateType          oID xs:string          coordGeomRefs coordGeomNameRefs          alignRef alignmentNameRef          alignStationName xs:string          alignOffset offsetDistance
annotation	documentation As we discussed this element is used to provide measured information for calculating boundary arcs. The definition information required is quite different to the curve element
source	<xs:element name="ReducedArcObservation">   <xs:annotation>     <xs:documentation>As we discussed this element is used to provide measured information for calculating boundary arcs. The definition information required is quite different to the curve element</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="TargetPoint" minOccurs="0"/>       <xs:element ref="OffsetVals" minOccurs="0"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="purpose" type="purposeType"/>     <xs:attribute name="setupID" type="xs:IDREF"/>     <xs:attribute name="targetSetupID" type="xs:IDREF"/>     <xs:attribute name="setID"/>     <xs:attribute name="chordAzimuth" type="direction" use="required"/>     <xs:attribute name="radius" type="xs:double" use="required"/>     <xs:attribute name="length" type="xs:double" use="required"/>     <xs:attribute name="rot" type="clockwise" use="required"/>     <xs:attribute name="equipmentUsed" type="equipmentType"/>     <xs:attribute name="arcAzimuthAccuracy" type="xs:double"/>     <xs:attribute name="arcLengthAccuracy" type="xs:double"/>     <xs:attribute name="date" type="xs:date"/>     <xs:attribute name="arcType" type="xs:string"/>     <xs:attribute name="adoptedSurvey" type="xs:string"/>     <xs:attribute name="lengthAccClass" type="xs:string"/>     <xs:attribute name="azimuthAccClass" type="xs:string"/>     <xs:attribute name="azimuthAdoptionFactor" type="xs:double"/>     <xs:attribute name="lengthAdoptionFactor" type="xs:double"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>     <xs:attribute name="alignRef" type="alignmentNameRef"/>     <xs:attribute name="alignStationName" type="xs:string"/>     <xs:attribute name="alignOffset" type="offsetDistance"/>     <!-- coordGeomRefs identifies one or more 'name' values that link to specific <Line>, <Curve>, <Spiral> or <IrregularLine> in a <CoordGeom> element. This allows linking  an survey observation to specific <Parcel>.<CoordGeom> based geometry. -->     <!-- alignRef is the name of the alignment.               alignStationName is the station value where the rod reading is taken.        alignOffset is the signed (+/-) distance from the CL of the referenced alignment.  -->   </xs:complexType> </xs:element>

attribute ReducedArcObservation/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute ReducedArcObservation/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>

attribute ReducedArcObservation/@targetSetupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="targetSetupID" type="xs:IDREF"/>

attribute ReducedArcObservation/@setID

properties	isRef  0
source	<xs:attribute name="setID"/>

attribute ReducedArcObservation/@chordAzimuth

type	direction
properties	isRef  0 use  required
source	<xs:attribute name="chordAzimuth" type="direction" use="required"/>

attribute ReducedArcObservation/@radius

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="radius" type="xs:double" use="required"/>

attribute ReducedArcObservation/@length

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="length" type="xs:double" use="required"/>

attribute ReducedArcObservation/@rot

type	clockwise
properties	isRef  0 use  required
facets	enumeration  cw enumeration  ccw
source	<xs:attribute name="rot" type="clockwise" use="required"/>

attribute ReducedArcObservation/@equipmentUsed

type	equipmentType
properties	isRef  0
source	<xs:attribute name="equipmentUsed" type="equipmentType"/>

attribute ReducedArcObservation/@arcAzimuthAccuracy

type	xs:double
properties	isRef  0
source	<xs:attribute name="arcAzimuthAccuracy" type="xs:double"/>

attribute ReducedArcObservation/@arcLengthAccuracy

type	xs:double
properties	isRef  0
source	<xs:attribute name="arcLengthAccuracy" type="xs:double"/>

attribute ReducedArcObservation/@date

type	xs:date
properties	isRef  0
source	<xs:attribute name="date" type="xs:date"/>

attribute ReducedArcObservation/@arcType

type	xs:string
properties	isRef  0
source	<xs:attribute name="arcType" type="xs:string"/>

attribute ReducedArcObservation/@adoptedSurvey

type	xs:string
properties	isRef  0
source	<xs:attribute name="adoptedSurvey" type="xs:string"/>

attribute ReducedArcObservation/@lengthAccClass

type	xs:string
properties	isRef  0
source	<xs:attribute name="lengthAccClass" type="xs:string"/>

attribute ReducedArcObservation/@azimuthAccClass

type	xs:string
properties	isRef  0
source	<xs:attribute name="azimuthAccClass" type="xs:string"/>

attribute ReducedArcObservation/@azimuthAdoptionFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="azimuthAdoptionFactor" type="xs:double"/>

attribute ReducedArcObservation/@lengthAdoptionFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="lengthAdoptionFactor" type="xs:double"/>

attribute ReducedArcObservation/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute ReducedArcObservation/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute ReducedArcObservation/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute ReducedArcObservation/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute ReducedArcObservation/@coordGeomRefs

type	coordGeomNameRefs
properties	isRef  0
source	<xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>

attribute ReducedArcObservation/@alignRef

type	alignmentNameRef
properties	isRef  0
source	<xs:attribute name="alignRef" type="alignmentNameRef"/>

attribute ReducedArcObservation/@alignStationName

type	xs:string
properties	isRef  0
source	<xs:attribute name="alignStationName" type="xs:string"/>

attribute ReducedArcObservation/@alignOffset

type	offsetDistance
properties	isRef  0
source	<xs:attribute name="alignOffset" type="offsetDistance"/>
