element Intersection

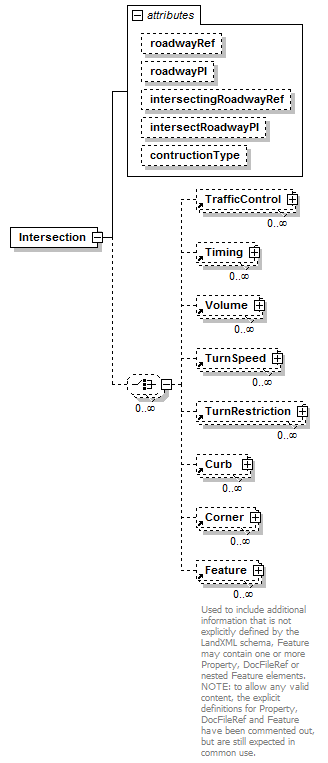

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TrafficControl Timing Volume TurnSpeed TurnRestriction Curb Corner Feature
used by	element  Intersections
attributes	Name   Type   Use   Default   Fixed   annotation roadwayRef roadwayNameRef          roadwayPI station          intersectingRoadwayRef roadwayNameRef          intersectRoadwayPI station          contructionType intersectionConstructionType
source	<xs:element name="Intersection">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="TrafficControl" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Timing" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Volume" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="TurnSpeed" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="TurnRestriction" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Curb" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Corner" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="roadwayRef" type="roadwayNameRef"/>     <xs:attribute name="roadwayPI" type="station"/>     <xs:attribute name="intersectingRoadwayRef" type="roadwayNameRef"/>     <xs:attribute name="intersectRoadwayPI" type="station"/>     <xs:attribute name="contructionType" type="intersectionConstructionType"/>   </xs:complexType> </xs:element>

attribute Intersection/@roadwayRef

type	roadwayNameRef
properties	isRef  0
source	<xs:attribute name="roadwayRef" type="roadwayNameRef"/>

attribute Intersection/@roadwayPI

type	station
properties	isRef  0
source	<xs:attribute name="roadwayPI" type="station"/>

attribute Intersection/@intersectingRoadwayRef

type	roadwayNameRef
properties	isRef  0
source	<xs:attribute name="intersectingRoadwayRef" type="roadwayNameRef"/>

attribute Intersection/@intersectRoadwayPI

type	station
properties	isRef  0
source	<xs:attribute name="intersectRoadwayPI" type="station"/>

attribute Intersection/@contructionType

type	intersectionConstructionType
properties	isRef  0
facets	enumeration  existing enumeration  improvement enumeration  new
source	<xs:attribute name="contructionType" type="intersectionConstructionType"/>
