element TrafficControl

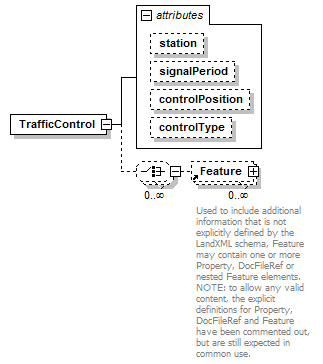

diagram LandXML-1.2Doc_p190.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Intersection
attributes
Name  Type  Use  Default  Fixed  annotation
stationstation
signalPeriodxs:double
controlPositiontrafficControlPosition
controlTypetrafficControlType
source <xs:element name="TrafficControl">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="station" type="station"/>

<xs:attribute name="signalPeriod" type="xs:double"/>

<xs:attribute name="controlPosition" type="trafficControlPosition"/>

<xs:attribute name="controlType" type="trafficControlType"/>

</xs:complexType>
</xs:element>

attribute TrafficControl/@station
type station
properties
isRef 0
source <xs:attribute name="station" type="station"/>

attribute TrafficControl/@signalPeriod
type xs:double
properties
isRef 0
source <xs:attribute name="signalPeriod" type="xs:double"/>

attribute TrafficControl/@controlPosition
type trafficControlPosition
properties
isRef 0
facets
enumeration side
enumeration overhead
source <xs:attribute name="controlPosition" type="trafficControlPosition"/>

attribute TrafficControl/@controlType
type trafficControlType
properties
isRef 0
facets
enumeration none
enumeration signal
enumeration stop
enumeration yield
source <xs:attribute name="controlType" type="trafficControlType"/>
