element Volume

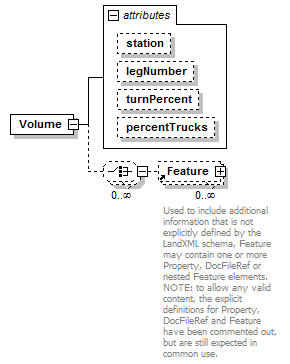

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Intersection
attributes	Name   Type   Use   Default   Fixed   annotation station station          legNumber xs:int          turnPercent xs:double          percentTrucks xs:double
source	<xs:element name="Volume">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="station" type="station"/>     <xs:attribute name="legNumber" type="xs:int"/>     <xs:attribute name="turnPercent" type="xs:double"/>     <xs:attribute name="percentTrucks" type="xs:double"/>   </xs:complexType> </xs:element>

attribute Volume/@station

type	station
properties	isRef  0
source	<xs:attribute name="station" type="station"/>

attribute Volume/@legNumber

type	xs:int
properties	isRef  0
source	<xs:attribute name="legNumber" type="xs:int"/>

attribute Volume/@turnPercent

type	xs:double
properties	isRef  0
source	<xs:attribute name="turnPercent" type="xs:double"/>

attribute Volume/@percentTrucks

type	xs:double
properties	isRef  0
source	<xs:attribute name="percentTrucks" type="xs:double"/>
