element TestObservation

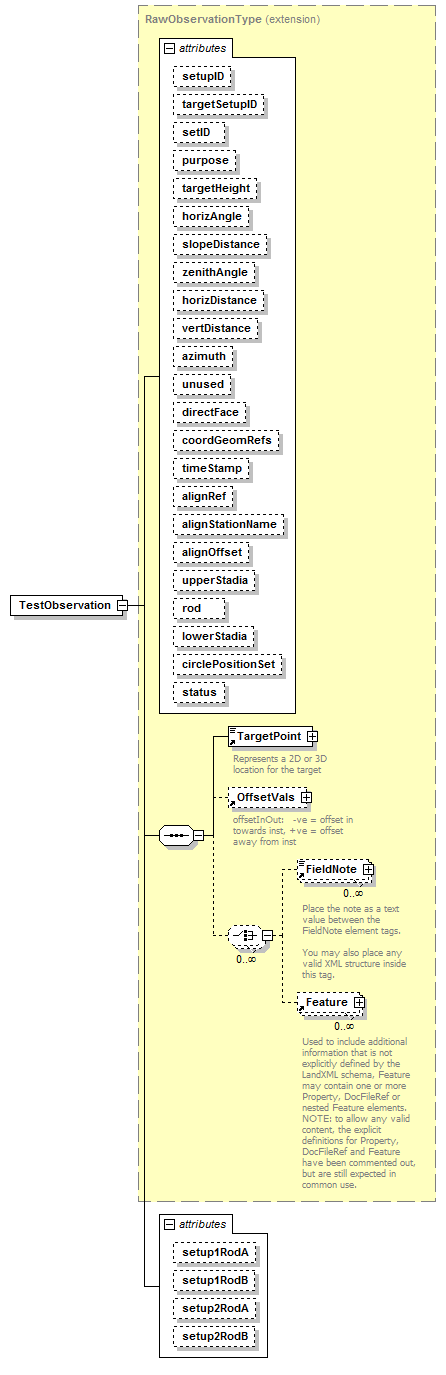

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of RawObservationType
properties	content  complex mixed  false
children	TargetPoint OffsetVals FieldNote Feature
used by	element  ControlChecks
attributes	Name   Type   Use   Default   Fixed   annotation setupID xs:IDREF          targetSetupID xs:IDREF          setID          purpose purposeType          targetHeight xs:double          horizAngle angle optional         slopeDistance xs:double optional         zenithAngle zenithAngle optional         horizDistance xs:double          vertDistance xs:double          azimuth direction optional         unused xs:boolean          directFace xs:boolean          coordGeomRefs coordGeomNameRefs          timeStamp xs:dateTime          alignRef alignmentNameRef          alignStationName xs:string          alignOffset offsetDistance          upperStadia xs:double          rod xs:double          lowerStadia xs:double          circlePositionSet xs:double          status observationStatusType          setup1RodA xs:double          setup1RodB xs:double          setup2RodA xs:double          setup2RodB xs:double
source	<xs:element name="TestObservation">   <xs:complexType mixed="false">     <xs:complexContent mixed="false">       <xs:extension base="RawObservationType">         <xs:attribute name="setup1RodA" type="xs:double"/>         <xs:attribute name="setup1RodB" type="xs:double"/>         <xs:attribute name="setup2RodA" type="xs:double"/>         <xs:attribute name="setup2RodB" type="xs:double"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TestObservation/@setup1RodA

type	xs:double
properties	isRef  0
source	<xs:attribute name="setup1RodA" type="xs:double"/>

attribute TestObservation/@setup1RodB

type	xs:double
properties	isRef  0
source	<xs:attribute name="setup1RodB" type="xs:double"/>

attribute TestObservation/@setup2RodA

type	xs:double
properties	isRef  0
source	<xs:attribute name="setup2RodA" type="xs:double"/>

attribute TestObservation/@setup2RodB

type	xs:double
properties	isRef  0
source	<xs:attribute name="setup2RodB" type="xs:double"/>
