complexType RawObservationType

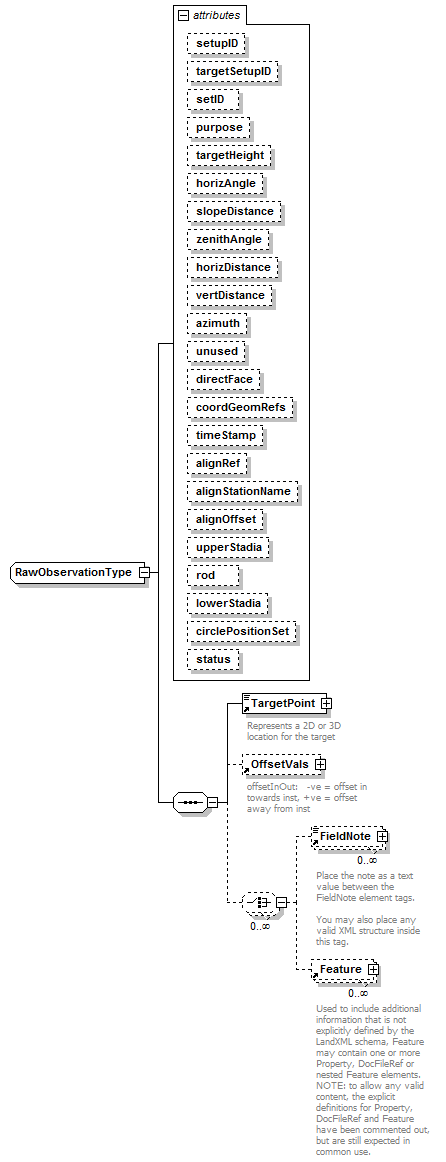

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
children	TargetPoint OffsetVals FieldNote Feature
used by	elements  RawObservation TestObservation
attributes	Name   Type   Use   Default   Fixed   annotation setupID xs:IDREF          targetSetupID xs:IDREF          setID          purpose purposeType          targetHeight xs:double          horizAngle angle optional         slopeDistance xs:double optional         zenithAngle zenithAngle optional         horizDistance xs:double          vertDistance xs:double          azimuth direction optional         unused xs:boolean          directFace xs:boolean          coordGeomRefs coordGeomNameRefs          timeStamp xs:dateTime          alignRef alignmentNameRef          alignStationName xs:string          alignOffset offsetDistance          upperStadia xs:double          rod xs:double          lowerStadia xs:double          circlePositionSet xs:double          status observationStatusType
source	<xs:complexType name="RawObservationType">   <xs:sequence>     <xs:element ref="TargetPoint"/>     <xs:element ref="OffsetVals" minOccurs="0"/>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="setupID" type="xs:IDREF"/>   <xs:attribute name="targetSetupID" type="xs:IDREF"/>   <xs:attribute name="setID"/>   <xs:attribute name="purpose" type="purposeType"/>   <xs:attribute name="targetHeight" type="xs:double"/>   <xs:attribute name="horizAngle" type="angle" use="optional"/>   <xs:attribute name="slopeDistance" type="xs:double" use="optional"/>   <xs:attribute name="zenithAngle" type="zenithAngle" use="optional"/>   <xs:attribute name="horizDistance" type="xs:double"/>   <xs:attribute name="vertDistance" type="xs:double"/>   <xs:attribute name="azimuth" type="direction" use="optional"/>   <xs:attribute name="unused" type="xs:boolean"/>   <xs:attribute name="directFace" type="xs:boolean"/>   <xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>   <xs:attribute name="timeStamp" type="xs:dateTime"/>   <xs:attribute name="alignRef" type="alignmentNameRef"/>   <xs:attribute name="alignStationName" type="xs:string"/>   <xs:attribute name="alignOffset" type="offsetDistance"/>   <xs:attribute name="upperStadia" type="xs:double"/>   <xs:attribute name="rod" type="xs:double"/>   <xs:attribute name="lowerStadia" type="xs:double"/>   <xs:attribute name="circlePositionSet" type="xs:double"/>   <xs:attribute name="status" type="observationStatusType"/>   <!-- FDOT SURVEY ADDTIONS -->   <!-- FDOT notes on RawObservations additions  Where: alignRef is the name of the alignment. alignStationName is the station value where the rod reading is taken. alignOffset is the signed (+/-) distance from the CL of the referenced alignment. 3-wire level loop attributes: upperStadia is the upper stadia hair rod reading. rod is the middle hair rod reading. lowerStadia is the lower stadia hair rod reading. circlePositionSet represents the position of the reading circle.                 This optional attribute (assumed to be "1.0"), unless multiple reading                circle positions were present from the same setup record.               ‘unused’ = boolean attribute to indicate the record is not used. 'directFace' = indicates the scope is flipped – true if the scope is not flipped, false if it is. -->   <!-- coordGeomRefs identifies one or more 'name' values that link to specific <Line>, <Curve>, <Spiral> or <IrregularLine> in a <CoordGeom> element. This allows linking an survey observation to specific <Parcel>.<CoordGeom> based geometry. --> </xs:complexType>

attribute RawObservationType/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>

attribute RawObservationType/@targetSetupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="targetSetupID" type="xs:IDREF"/>

attribute RawObservationType/@setID

properties	isRef  0
source	<xs:attribute name="setID"/>

attribute RawObservationType/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute RawObservationType/@targetHeight

type	xs:double
properties	isRef  0
source	<xs:attribute name="targetHeight" type="xs:double"/>

attribute RawObservationType/@horizAngle

type	angle
properties	isRef  0 use  optional
source	<xs:attribute name="horizAngle" type="angle" use="optional"/>

attribute RawObservationType/@slopeDistance

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="slopeDistance" type="xs:double" use="optional"/>

attribute RawObservationType/@zenithAngle

type	zenithAngle
properties	isRef  0 use  optional
source	<xs:attribute name="zenithAngle" type="zenithAngle" use="optional"/>

attribute RawObservationType/@horizDistance

type	xs:double
properties	isRef  0
source	<xs:attribute name="horizDistance" type="xs:double"/>

attribute RawObservationType/@vertDistance

type	xs:double
properties	isRef  0
source	<xs:attribute name="vertDistance" type="xs:double"/>

attribute RawObservationType/@azimuth

type	direction
properties	isRef  0 use  optional
source	<xs:attribute name="azimuth" type="direction" use="optional"/>

attribute RawObservationType/@unused

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="unused" type="xs:boolean"/>

attribute RawObservationType/@directFace

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="directFace" type="xs:boolean"/>

attribute RawObservationType/@coordGeomRefs

type	coordGeomNameRefs
properties	isRef  0
source	<xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>

attribute RawObservationType/@timeStamp

type	xs:dateTime
properties	isRef  0
source	<xs:attribute name="timeStamp" type="xs:dateTime"/>

attribute RawObservationType/@alignRef

type	alignmentNameRef
properties	isRef  0
source	<xs:attribute name="alignRef" type="alignmentNameRef"/>

attribute RawObservationType/@alignStationName

type	xs:string
properties	isRef  0
source	<xs:attribute name="alignStationName" type="xs:string"/>

attribute RawObservationType/@alignOffset

type	offsetDistance
properties	isRef  0
source	<xs:attribute name="alignOffset" type="offsetDistance"/>

attribute RawObservationType/@upperStadia

type	xs:double
properties	isRef  0
source	<xs:attribute name="upperStadia" type="xs:double"/>

attribute RawObservationType/@rod

type	xs:double
properties	isRef  0
source	<xs:attribute name="rod" type="xs:double"/>

attribute RawObservationType/@lowerStadia

type	xs:double
properties	isRef  0
source	<xs:attribute name="lowerStadia" type="xs:double"/>

attribute RawObservationType/@circlePositionSet

type	xs:double
properties	isRef  0
source	<xs:attribute name="circlePositionSet" type="xs:double"/>

attribute RawObservationType/@status

type	observationStatusType
properties	isRef  0
facets	enumeration  modified enumeration  deleted
source	<xs:attribute name="status" type="observationStatusType"/>
