element SurveyHeader

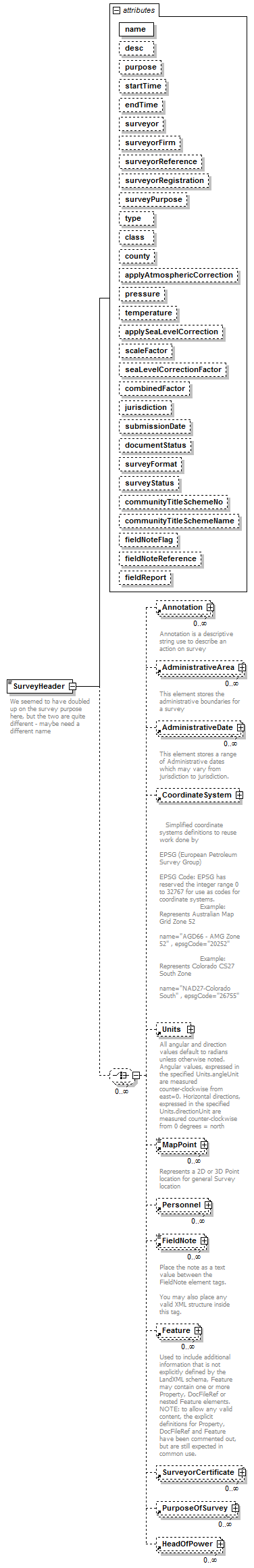

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex mixed  true
children	Annotation AdministrativeArea AdministrativeDate CoordinateSystem Units MapPoint Personnel FieldNote Feature SurveyorCertificate PurposeOfSurvey HeadOfPower
used by	element  Survey
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         desc xs:string          purpose purposeType          startTime xs:dateTime          endTime xs:dateTime          surveyor xs:string          surveyorFirm xs:string          surveyorReference xs:string          surveyorRegistration xs:string          surveyPurpose xs:string          type surveyType          class xs:string          county xs:string          applyAtmosphericCorrection xs:boolean          pressure xs:double          temperature xs:double          applySeaLevelCorrection xs:boolean          scaleFactor xs:double          seaLevelCorrectionFactor xs:double          combinedFactor xs:double          jurisdiction jurisdictionType          submissionDate xs:date          documentStatus documentStatusType          surveyFormat surveyFormatType          surveyStatus surveyStatusType          communityTitleSchemeNo xs:int          communityTitleSchemeName xs:string          fieldNoteFlag xs:boolean          fieldNoteReference xs:string          fieldReport xs:string
annotation	documentation We seemed to have doubled up on the survey purpose here, but the two are quite different - maybe need a different name
source	<xs:element name="SurveyHeader">   <xs:annotation>     <xs:documentation>We seemed to have doubled up on the survey purpose here, but the two are quite different - maybe need a different name</xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Annotation" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="AdministrativeArea" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="AdministrativeDate" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="CoordinateSystem" minOccurs="0"/>       <xs:element ref="Units" minOccurs="0"/>       <xs:element ref="MapPoint" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Personnel" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="SurveyorCertificate" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="PurposeOfSurvey" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="HeadOfPower" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="purpose" type="purposeType"/>     <xs:attribute name="startTime" type="xs:dateTime"/>     <xs:attribute name="endTime" type="xs:dateTime"/>     <xs:attribute name="surveyor" type="xs:string"/>     <xs:attribute name="surveyorFirm" type="xs:string"/>     <xs:attribute name="surveyorReference" type="xs:string"/>     <xs:attribute name="surveyorRegistration" type="xs:string"/>     <xs:attribute name="surveyPurpose" type="xs:string"/>     <xs:attribute name="type" type="surveyType"/>     <xs:attribute name="class" type="xs:string"/>     <xs:attribute name="county" type="xs:string"/>     <xs:attribute name="applyAtmosphericCorrection" type="xs:boolean"/>     <xs:attribute name="pressure" type="xs:double"/>     <xs:attribute name="temperature" type="xs:double"/>     <xs:attribute name="applySeaLevelCorrection" type="xs:boolean"/>     <xs:attribute name="scaleFactor" type="xs:double"/>     <xs:attribute name="seaLevelCorrectionFactor" type="xs:double"/>     <xs:attribute name="combinedFactor" type="xs:double"/>     <xs:attribute name="jurisdiction" type="jurisdictionType"/>     <xs:attribute name="submissionDate" type="xs:date"/>     <xs:attribute name="documentStatus" type="documentStatusType"/>     <xs:attribute name="surveyFormat" type="surveyFormatType"/>     <xs:attribute name="surveyStatus" type="surveyStatusType"/>     <xs:attribute name="communityTitleSchemeNo" type="xs:int"/>     <xs:attribute name="communityTitleSchemeName" type="xs:string"/>     <xs:attribute name="fieldNoteFlag" type="xs:boolean"/>     <xs:attribute name="fieldNoteReference" type="xs:string"/>     <xs:attribute name="fieldReport" type="xs:string"/>   </xs:complexType> </xs:element>

attribute SurveyHeader/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute SurveyHeader/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute SurveyHeader/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute SurveyHeader/@startTime

type	xs:dateTime
properties	isRef  0
source	<xs:attribute name="startTime" type="xs:dateTime"/>

attribute SurveyHeader/@endTime

type	xs:dateTime
properties	isRef  0
source	<xs:attribute name="endTime" type="xs:dateTime"/>

attribute SurveyHeader/@surveyor

type	xs:string
properties	isRef  0
source	<xs:attribute name="surveyor" type="xs:string"/>

attribute SurveyHeader/@surveyorFirm

type	xs:string
properties	isRef  0
source	<xs:attribute name="surveyorFirm" type="xs:string"/>

attribute SurveyHeader/@surveyorReference

type	xs:string
properties	isRef  0
source	<xs:attribute name="surveyorReference" type="xs:string"/>

attribute SurveyHeader/@surveyorRegistration

type	xs:string
properties	isRef  0
source	<xs:attribute name="surveyorRegistration" type="xs:string"/>

attribute SurveyHeader/@surveyPurpose

type	xs:string
properties	isRef  0
source	<xs:attribute name="surveyPurpose" type="xs:string"/>

attribute SurveyHeader/@type

type	surveyType
properties	isRef  0
facets	enumeration  compiled enumeration  computed enumeration  surveyed
source	<xs:attribute name="type" type="surveyType"/>

attribute SurveyHeader/@class

type	xs:string
properties	isRef  0
source	<xs:attribute name="class" type="xs:string"/>

attribute SurveyHeader/@county

type	xs:string
properties	isRef  0
source	<xs:attribute name="county" type="xs:string"/>

attribute SurveyHeader/@applyAtmosphericCorrection

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="applyAtmosphericCorrection" type="xs:boolean"/>

attribute SurveyHeader/@pressure

type	xs:double
properties	isRef  0
source	<xs:attribute name="pressure" type="xs:double"/>

attribute SurveyHeader/@temperature

type	xs:double
properties	isRef  0
source	<xs:attribute name="temperature" type="xs:double"/>

attribute SurveyHeader/@applySeaLevelCorrection

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="applySeaLevelCorrection" type="xs:boolean"/>

attribute SurveyHeader/@scaleFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="scaleFactor" type="xs:double"/>

attribute SurveyHeader/@seaLevelCorrectionFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="seaLevelCorrectionFactor" type="xs:double"/>

attribute SurveyHeader/@combinedFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="combinedFactor" type="xs:double"/>

attribute SurveyHeader/@jurisdiction

type	jurisdictionType
properties	isRef  0
source	<xs:attribute name="jurisdiction" type="jurisdictionType"/>

attribute SurveyHeader/@submissionDate

type	xs:date
properties	isRef  0
source	<xs:attribute name="submissionDate" type="xs:date"/>

attribute SurveyHeader/@documentStatus

type	documentStatusType
properties	isRef  0
source	<xs:attribute name="documentStatus" type="documentStatusType"/>

attribute SurveyHeader/@surveyFormat

type	surveyFormatType
properties	isRef  0
source	<xs:attribute name="surveyFormat" type="surveyFormatType"/>

attribute SurveyHeader/@surveyStatus

type	surveyStatusType
properties	isRef  0
source	<xs:attribute name="surveyStatus" type="surveyStatusType"/>

attribute SurveyHeader/@communityTitleSchemeNo

type	xs:int
properties	isRef  0
source	<xs:attribute name="communityTitleSchemeNo" type="xs:int"/>

attribute SurveyHeader/@communityTitleSchemeName

type	xs:string
properties	isRef  0
source	<xs:attribute name="communityTitleSchemeName" type="xs:string"/>

attribute SurveyHeader/@fieldNoteFlag

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="fieldNoteFlag" type="xs:boolean"/>

attribute SurveyHeader/@fieldNoteReference

type	xs:string
properties	isRef  0
source	<xs:attribute name="fieldNoteReference" type="xs:string"/>

attribute SurveyHeader/@fieldReport

type	xs:string
properties	isRef  0
source	<xs:attribute name="fieldReport" type="xs:string"/>
