element CoordinateSystem

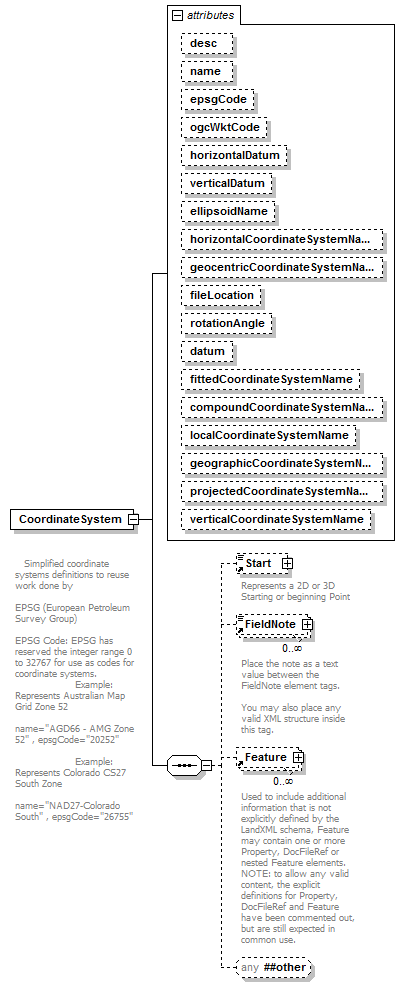

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start FieldNote Feature
used by	elements  LandXML SurveyHeader
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          epsgCode xs:string          ogcWktCode xs:string          horizontalDatum xs:string          verticalDatum xs:string          ellipsoidName xs:string          horizontalCoordinateSystemName xs:string          geocentricCoordinateSystemName xs:string          fileLocation xs:anyURI          rotationAngle angle          datum xs:string          fittedCoordinateSystemName xs:string          compoundCoordinateSystemName xs:string          localCoordinateSystemName xs:string          geographicCoordinateSystemName xs:string          projectedCoordinateSystemName xs:string          verticalCoordinateSystemName xs:string
annotation	documentation     Simplified coordinate systems definitions to reuse work done by EPSG (European Petroleum Survey Group) EPSG Code: EPSG has reserved the integer range 0 to 32767 for use as codes for coordinate systems.                     Example: Represents Australian Map Grid Zone 52                      name="AGD66 - AMG Zone 52" , epsgCode="20252"                     Example: Represents Colorado CS27 South Zone                      name="NAD27-Colorado South" , epsgCode="26755"
source	<xs:element name="CoordinateSystem">   <xs:annotation>     <xs:documentation>     Simplified coordinate systems definitions to reuse work done by EPSG (European Petroleum Survey Group) EPSG Code: EPSG has reserved the integer range 0 to 32767 for use as codes for coordinate systems.                     Example: Represents Australian Map Grid Zone 52                      name="AGD66 - AMG Zone 52" , epsgCode="20252"                     Example: Represents Colorado CS27 South Zone                      name="NAD27-Colorado South" , epsgCode="26755" </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Start" minOccurs="0"/>       <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       <xs:any namespace="##other" processContents="skip" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="epsgCode" type="xs:string"/>     <xs:attribute name="ogcWktCode" type="xs:string"/>     <xs:attribute name="horizontalDatum" type="xs:string"/>     <xs:attribute name="verticalDatum" type="xs:string"/>     <xs:attribute name="ellipsoidName" type="xs:string"/>     <xs:attribute name="horizontalCoordinateSystemName" type="xs:string"/>     <xs:attribute name="geocentricCoordinateSystemName" type="xs:string"/>     <xs:attribute name="fileLocation" type="xs:anyURI"/>     <xs:attribute name="rotationAngle" type="angle"/>     <xs:attribute name="datum" type="xs:string"/>     <xs:attribute name="fittedCoordinateSystemName" type="xs:string"/>     <xs:attribute name="compoundCoordinateSystemName" type="xs:string"/>     <xs:attribute name="localCoordinateSystemName" type="xs:string"/>     <xs:attribute name="geographicCoordinateSystemName" type="xs:string"/>     <xs:attribute name="projectedCoordinateSystemName" type="xs:string"/>     <xs:attribute name="verticalCoordinateSystemName" type="xs:string"/>     <!--  The attributes below are provided for backward compatibility only and should no longer be used. -->   </xs:complexType> </xs:element>

attribute CoordinateSystem/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute CoordinateSystem/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute CoordinateSystem/@epsgCode

type	xs:string
properties	isRef  0
source	<xs:attribute name="epsgCode" type="xs:string"/>

attribute CoordinateSystem/@ogcWktCode

type	xs:string
properties	isRef  0
source	<xs:attribute name="ogcWktCode" type="xs:string"/>

attribute CoordinateSystem/@horizontalDatum

type	xs:string
properties	isRef  0
source	<xs:attribute name="horizontalDatum" type="xs:string"/>

attribute CoordinateSystem/@verticalDatum

type	xs:string
properties	isRef  0
source	<xs:attribute name="verticalDatum" type="xs:string"/>

attribute CoordinateSystem/@ellipsoidName

type	xs:string
properties	isRef  0
source	<xs:attribute name="ellipsoidName" type="xs:string"/>

attribute CoordinateSystem/@horizontalCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="horizontalCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@geocentricCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="geocentricCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@fileLocation

type	xs:anyURI
properties	isRef  0
source	<xs:attribute name="fileLocation" type="xs:anyURI"/>

attribute CoordinateSystem/@rotationAngle

type	angle
properties	isRef  0
source	<xs:attribute name="rotationAngle" type="angle"/>

attribute CoordinateSystem/@datum

type	xs:string
properties	isRef  0
source	<xs:attribute name="datum" type="xs:string"/>

attribute CoordinateSystem/@fittedCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="fittedCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@compoundCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="compoundCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@localCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="localCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@geographicCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="geographicCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@projectedCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="projectedCoordinateSystemName" type="xs:string"/>

attribute CoordinateSystem/@verticalCoordinateSystemName

type	xs:string
properties	isRef  0
source	<xs:attribute name="verticalCoordinateSystemName" type="xs:string"/>
