element RetWallPnt

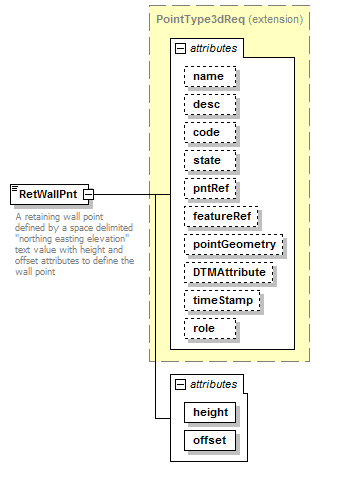

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of PointType3dReq
properties	content  complex mixed  true
used by	element  RetWall
facets	minLength  0 maxLength  3
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          featureRef featureNameRef optional         pointGeometry pointGeometryType          DTMAttribute DTMAttributeType          timeStamp xs:dateTime optional         role surveyRoleType optional         height xs:double required         offset xs:double required
annotation	documentation A retaining wall point defined by a space delimited "northing easting elevation" text value with height and offset attributes to define the wall point documentation The height value is positive if the northing/easting/elevation point is at the bottom of the wall, negative if the point is at the top of the wall. documentation The offset value is negative for left and positive for right.
source	<xs:element name="RetWallPnt">   <xs:annotation>     <xs:documentation>A retaining wall point defined by a space delimited "northing easting elevation" text value with height and offset attributes to define the wall point</xs:documentation>     <xs:documentation>The height value is positive if the northing/easting/elevation point is at the bottom of the wall, negative if the point is at the top of the wall.</xs:documentation>     <xs:documentation>The offset value is negative for left and positive for right.</xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:simpleContent>       <xs:extension base="PointType3dReq">         <xs:attribute name="height" type="xs:double" use="required"/>         <xs:attribute name="offset" type="xs:double" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute RetWallPnt/@height

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="height" type="xs:double" use="required"/>

attribute RetWallPnt/@offset

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="offset" type="xs:double" use="required"/>
