complexType PointType3dReq

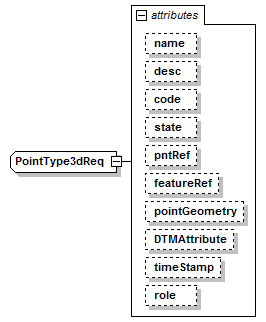

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of Point3dReq
properties	base  Point3dReq
used by	elements  Outlet RetWallPnt
facets	minLength  0 maxLength  3
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          featureRef featureNameRef optional         pointGeometry pointGeometryType          DTMAttribute DTMAttributeType          timeStamp xs:dateTime optional         role surveyRoleType optional
source	<xs:complexType name="PointType3dReq">   <xs:simpleContent>     <xs:extension base="Point3dReq">       <xs:attribute name="name" type="xs:string"/>       <xs:attribute name="desc" type="xs:string"/>       <xs:attribute name="code" type="xs:string"/>       <xs:attribute name="state" type="stateType"/>       <xs:attribute name="pntRef" type="pointNameRef"/>       <xs:attribute name="featureRef" type="featureNameRef" use="optional"/>       <xs:attribute name="pointGeometry" type="pointGeometryType"/>       <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>       <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>       <xs:attribute name="role" type="surveyRoleType" use="optional"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute PointType3dReq/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute PointType3dReq/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute PointType3dReq/@code

type	xs:string
properties	isRef  0
source	<xs:attribute name="code" type="xs:string"/>

attribute PointType3dReq/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute PointType3dReq/@pntRef

type	pointNameRef
properties	isRef  0
source	<xs:attribute name="pntRef" type="pointNameRef"/>

attribute PointType3dReq/@featureRef

type	featureNameRef
properties	isRef  0 use  optional
source	<xs:attribute name="featureRef" type="featureNameRef" use="optional"/>

attribute PointType3dReq/@pointGeometry

type	pointGeometryType
properties	isRef  0
facets	enumeration  point enumeration  curve
source	<xs:attribute name="pointGeometry" type="pointGeometryType"/>

attribute PointType3dReq/@DTMAttribute

type	DTMAttributeType
properties	isRef  0
facets	enumeration  determinebyfeature enumeration  donotinclude enumeration  spot enumeration  spotandbreak enumeration  void enumeration  drapevoid enumeration  breakvoid enumeration  island enumeration  boundary enumeration  contour enumeration  feature enumeration  ground enumeration  xsection enumeration  user
source	<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

attribute PointType3dReq/@timeStamp

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

attribute PointType3dReq/@role

type	surveyRoleType
properties	isRef  0 use  optional
facets	enumeration  measured enumeration  to stake out enumeration  staked out enumeration  calculated enumeration  assistance point enumeration  user entered point enumeration  control point
source	<xs:attribute name="role" type="surveyRoleType" use="optional"/>
