complexType PointType

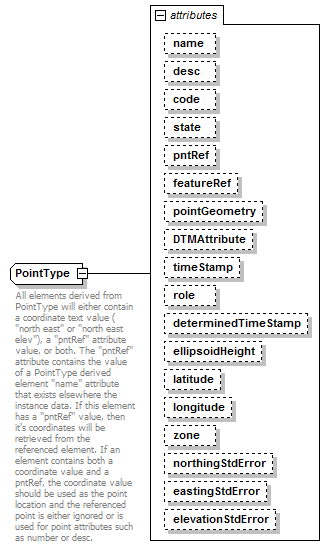

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of Point3dOpt
properties	base  Point3dOpt mixed  true
used by	elements  AddressPoint BacksightPoint Center CgPoint CrossSectPnt End InstrumentPoint Location MapPoint P PI Start TargetPoint
facets	minLength  0 maxLength  3
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          featureRef featureNameRef optional         pointGeometry pointGeometryType          DTMAttribute DTMAttributeType          timeStamp xs:dateTime optional         role surveyRoleType optional         determinedTimeStamp xs:dateTime optional         ellipsoidHeight ellipsoidHeightType optional         latitude latLongAngle optional         longitude latLongAngle optional         zone xs:string optional         northingStdError xs:double optional         eastingStdError xs:double optional         elevationStdError xs:double optional
annotation	documentation All elements derived from PointType will either contain a coordinate text value ( "north east" or "north east elev"), a "pntRef" attribute value, or both. The "pntRef" attribute contains the value of a PointType derived element "name" attribute that exists elsewhere the instance data. If this element has a "pntRef" value, then it's coordinates will be retrieved from the referenced element. If an element contains both a coordinate value and a pntRef, the coordinate value should be used as the point location and the referenced point is either ignored or is used for point attributes such as number or desc. documentation The featureRef attribute points to a specific named Feature element that contains feature data related to the point. The suggested form is to refer to a feature element within the same CgPoints group or parent element of the point element.
source	<xs:complexType name="PointType" mixed="true">   <xs:annotation>     <xs:documentation>All elements derived from PointType will either contain a coordinate text value ( "north east" or "north east elev"), a "pntRef" attribute value, or both. The "pntRef" attribute contains the value of a PointType derived element "name" attribute that exists elsewhere the instance data. If this element has a "pntRef" value, then it's coordinates will be retrieved from the referenced element. If an element contains both a coordinate value and a pntRef, the coordinate value should be used as the point location and the referenced point is either ignored or is used for point attributes such as number or desc.</xs:documentation>     <xs:documentation>The featureRef attribute points to a specific named Feature element that contains feature data related to the point. The suggested form is to refer to a feature element within the same CgPoints group or parent element of the point element. </xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="Point3dOpt">       <xs:attribute name="name" type="xs:string"/>       <xs:attribute name="desc" type="xs:string"/>       <xs:attribute name="code" type="xs:string"/>       <xs:attribute name="state" type="stateType"/>       <xs:attribute name="pntRef" type="pointNameRef"/>       <xs:attribute name="featureRef" type="featureNameRef" use="optional"/>       <xs:attribute name="pointGeometry" type="pointGeometryType"/>       <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>       <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>       <xs:attribute name="role" type="surveyRoleType" use="optional"/>       <xs:attribute name="determinedTimeStamp" type="xs:dateTime" use="optional"/>       <xs:attribute name="ellipsoidHeight" type="ellipsoidHeightType" use="optional"/>       <xs:attribute name="latitude" type="latLongAngle" use="optional"/>       <xs:attribute name="longitude" type="latLongAngle" use="optional"/>       <xs:attribute name="zone" type="xs:string" use="optional"/>       <xs:attribute name="northingStdError" type="xs:double" use="optional"/>       <xs:attribute name="eastingStdError" type="xs:double" use="optional"/>       <xs:attribute name="elevationStdError" type="xs:double" use="optional"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute PointType/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute PointType/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute PointType/@code

type	xs:string
properties	isRef  0
source	<xs:attribute name="code" type="xs:string"/>

attribute PointType/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute PointType/@pntRef

type	pointNameRef
properties	isRef  0
source	<xs:attribute name="pntRef" type="pointNameRef"/>

attribute PointType/@featureRef

type	featureNameRef
properties	isRef  0 use  optional
source	<xs:attribute name="featureRef" type="featureNameRef" use="optional"/>

attribute PointType/@pointGeometry

type	pointGeometryType
properties	isRef  0
facets	enumeration  point enumeration  curve
source	<xs:attribute name="pointGeometry" type="pointGeometryType"/>

attribute PointType/@DTMAttribute

type	DTMAttributeType
properties	isRef  0
facets	enumeration  determinebyfeature enumeration  donotinclude enumeration  spot enumeration  spotandbreak enumeration  void enumeration  drapevoid enumeration  breakvoid enumeration  island enumeration  boundary enumeration  contour enumeration  feature enumeration  ground enumeration  xsection enumeration  user
source	<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

attribute PointType/@timeStamp

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

attribute PointType/@role

type	surveyRoleType
properties	isRef  0 use  optional
facets	enumeration  measured enumeration  to stake out enumeration  staked out enumeration  calculated enumeration  assistance point enumeration  user entered point enumeration  control point
source	<xs:attribute name="role" type="surveyRoleType" use="optional"/>

attribute PointType/@determinedTimeStamp

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="determinedTimeStamp" type="xs:dateTime" use="optional"/>

attribute PointType/@ellipsoidHeight

type	ellipsoidHeightType
properties	isRef  0 use  optional
source	<xs:attribute name="ellipsoidHeight" type="ellipsoidHeightType" use="optional"/>

attribute PointType/@latitude

type	latLongAngle
properties	isRef  0 use  optional
source	<xs:attribute name="latitude" type="latLongAngle" use="optional"/>

attribute PointType/@longitude

type	latLongAngle
properties	isRef  0 use  optional
source	<xs:attribute name="longitude" type="latLongAngle" use="optional"/>

attribute PointType/@zone

type	xs:string
properties	isRef  0 use  optional
source	<xs:attribute name="zone" type="xs:string" use="optional"/>

attribute PointType/@northingStdError

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="northingStdError" type="xs:double" use="optional"/>

attribute PointType/@eastingStdError

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="eastingStdError" type="xs:double" use="optional"/>

attribute PointType/@elevationStdError

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="elevationStdError" type="xs:double" use="optional"/>
