Schema LandXML-2.0.xsd


schema location E:\LandXML Archives\LandXML\LandXML.org\schema\LandXML-2.0\LandXML-2.0.xsd
attributeFormDefault
elementFormDefault
targetNamespace http://www.landxml.org/schema/LandXML-2.0

Elements  Complex types  Simple types
AddressPoint  PointType  addressPointTypeType

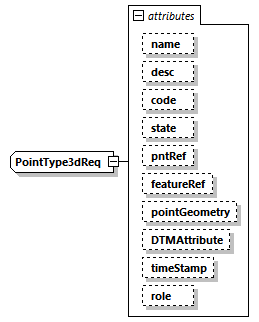

AdministrativeArea  PointType3dReq  addressTypeType
AdministrativeDate  RawObservationType  adminAreaTypeType
AdverseSE  adminDateTypeType
Alignment  adverseSEType
Alignments  alignmentNameRef
AlignPI  alignmentNameRefs
AlignPIs  angle

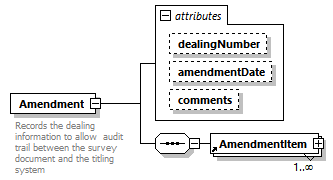

Amendment  angularType
AmendmentItem  annotationType
Annotation  area

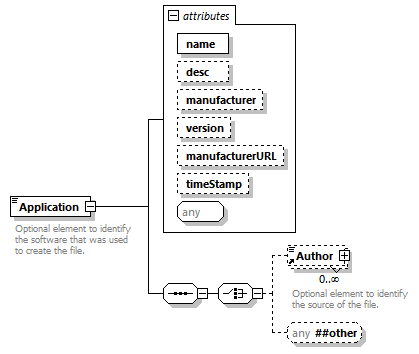

Application  beaconProtectionType

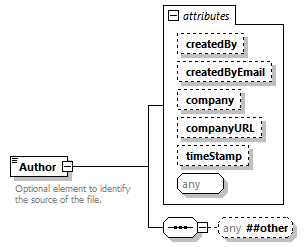

Author  beaconType

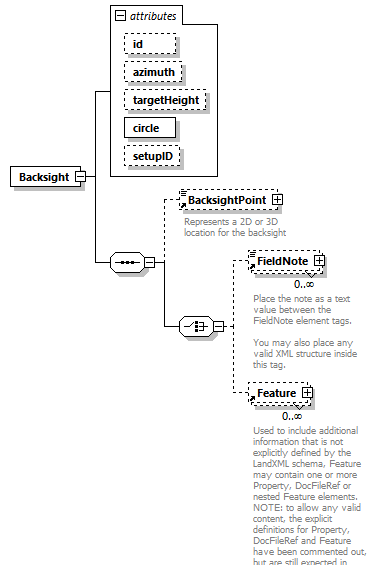

Backsight  breakLineType
BacksightPoint  bridgeProjectType
BeginRunoffSta  cgPointsNameRef
BeginRunoutSta  cgPointsNameRefs
BikeFacilities  ChainType
Boundaries  circularTaperShape
Boundary  clockwise

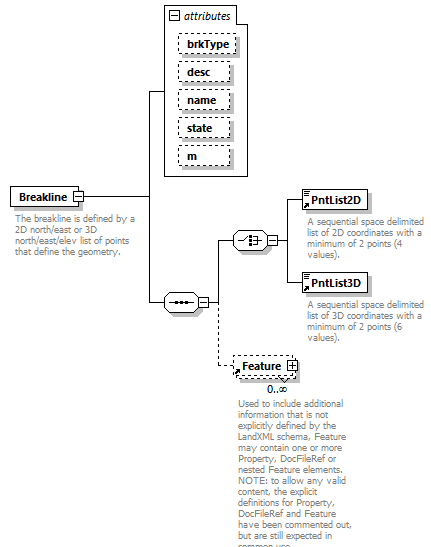

Breakline  connectionType
Breaklines  contructionPurposeType
BridgeElement  coordGeomNameRef

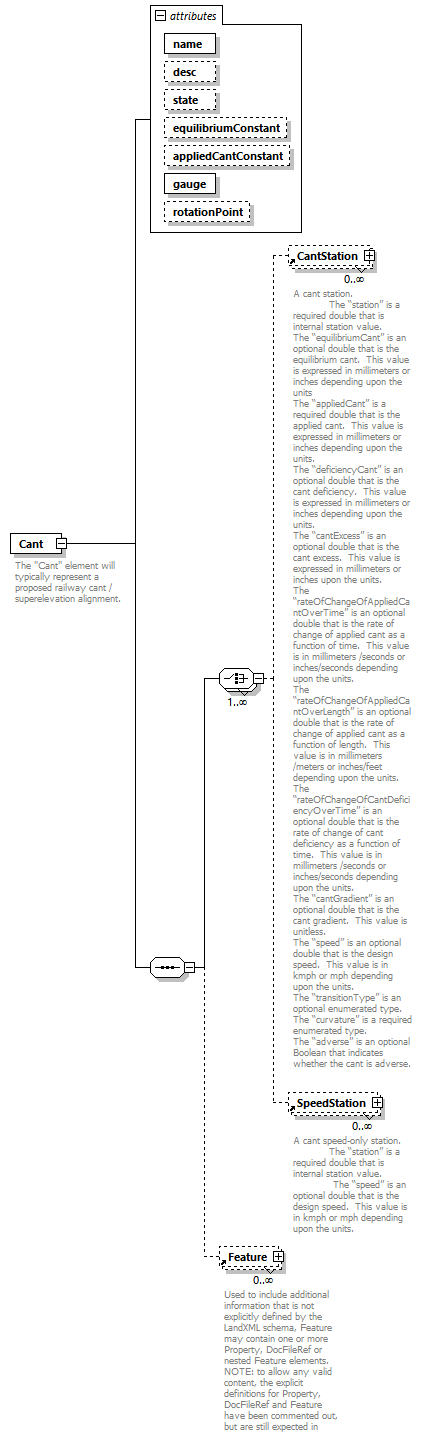

Cant  coordGeomNameRefs

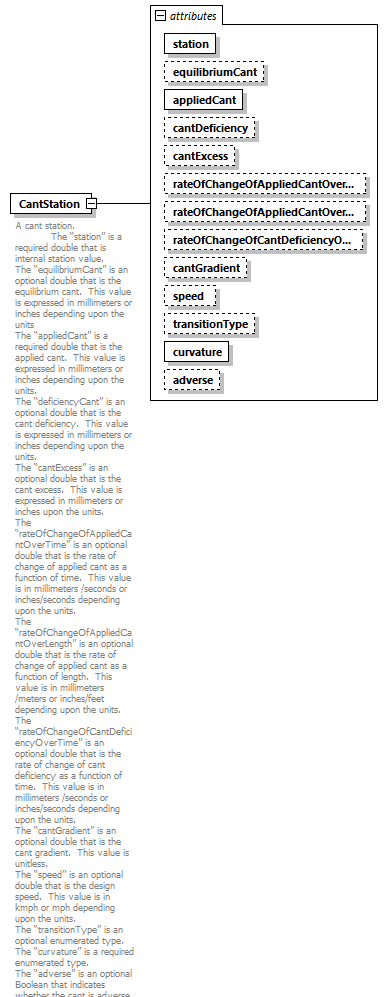

CantStation  cornerType

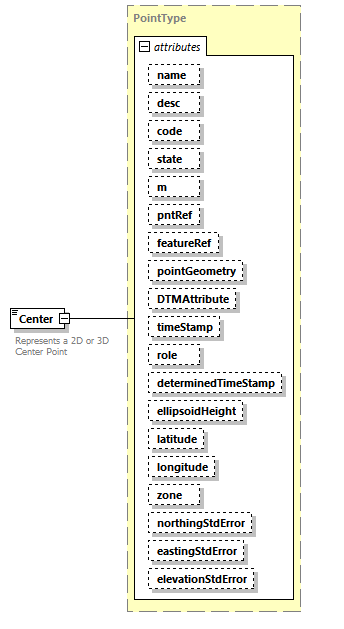

Center  crashIntersectionRelation
CgPoint  crashSeverityType
CgPoints  crossSectionPnt

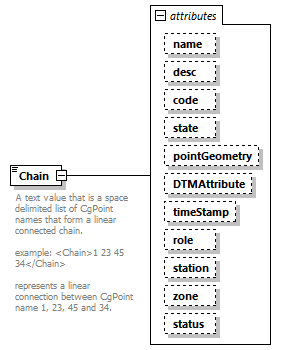

Chain  crossSectSurfaceArea

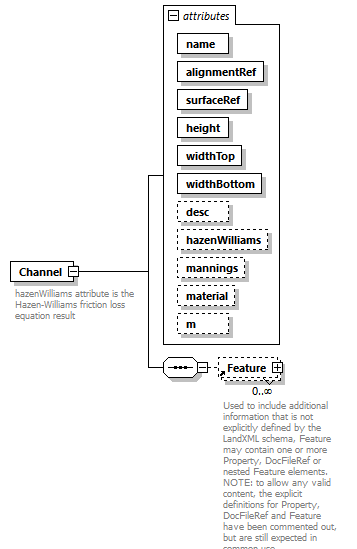

Channel  crossSectSurfaceVolume
CircCurve  crossSlope

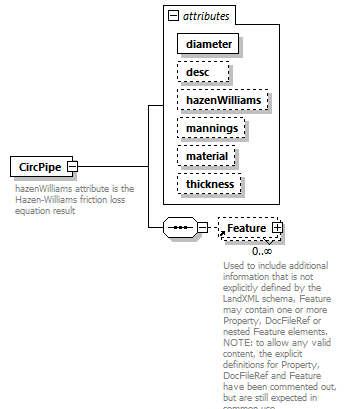

CircPipe  curbThroatType
CircStruct  curbType

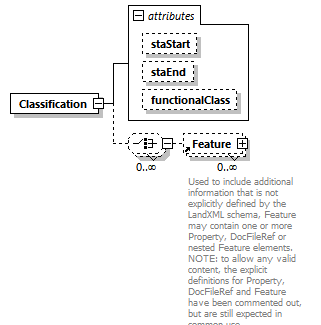

Classification  curveType

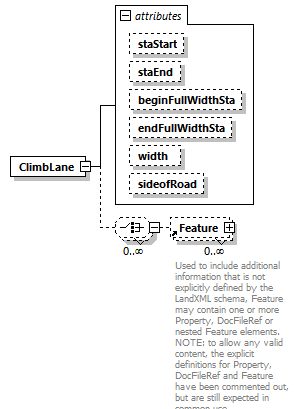

ClimbLane  dataFormatType
ComboInlet  DesignCrossSectionTemplateTableIndexRef
ComplexName  designLocationType

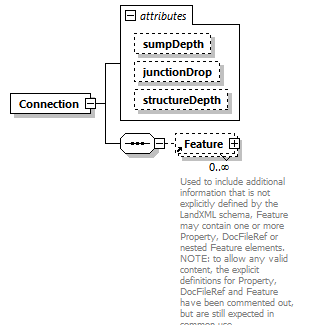

Connection  direction
ConnSpiral  ditchBottomShape

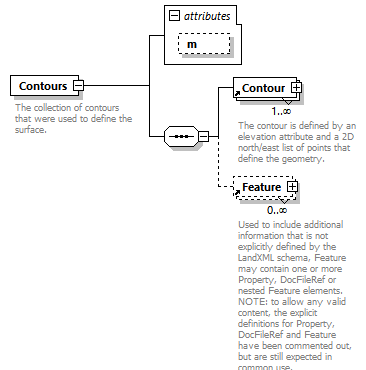

Contour  documentStatusType
Contours  drivewayDensity
ControlChecks  DTMAttributeType

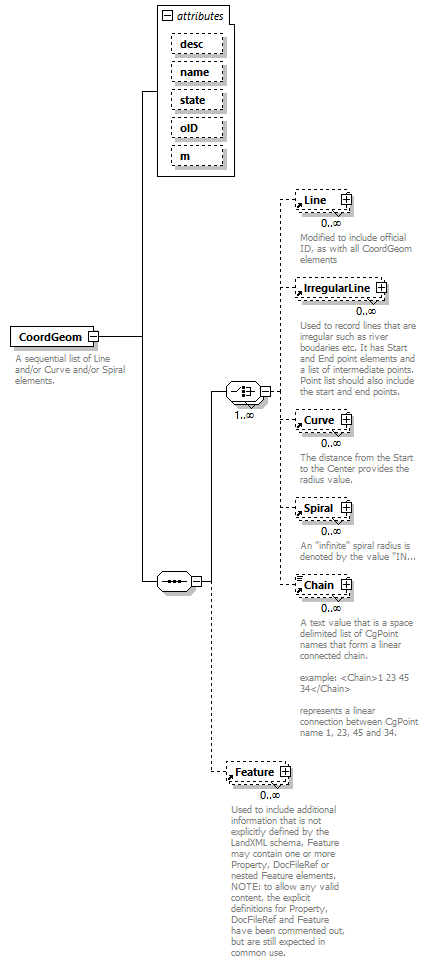

CoordGeom  elevationType
CoordinateSystem  ellipsoidHeightType

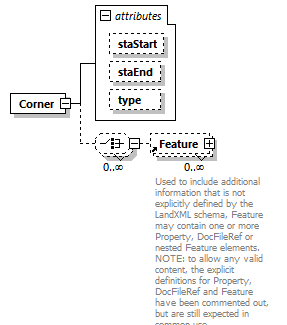

Corner  encodingType
Corrections  equipmentType
CrashData  exclusType
CrashHistory  FaceType
CrossSect  featureNameRef

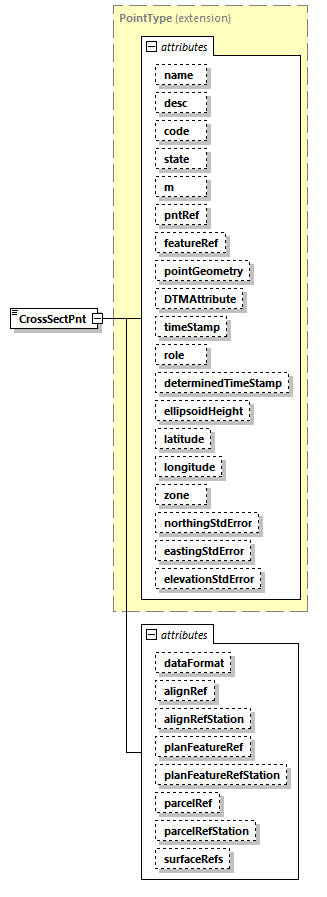

CrossSectPnt  flatTypeType

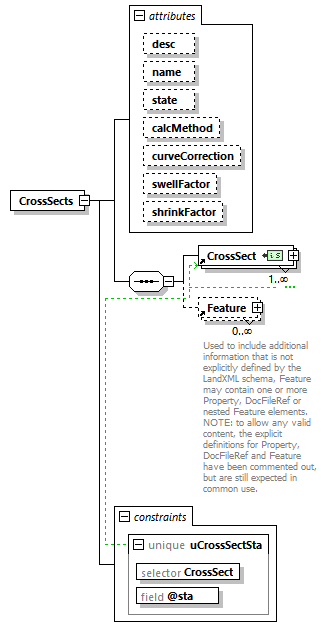

CrossSects  floorLevelTypeType
CrossSectSurf  functionalClassType

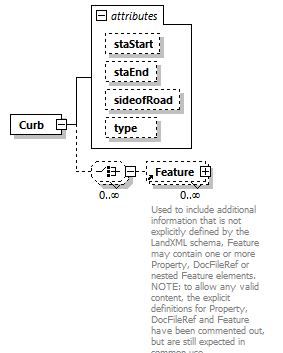

Curb  GPSSolutionFrequencyEnum

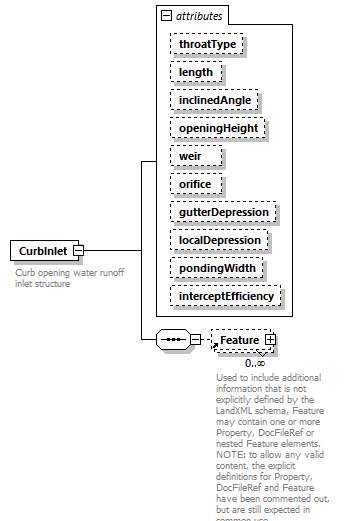

CurbInlet  GPSSolutionTypeEnum

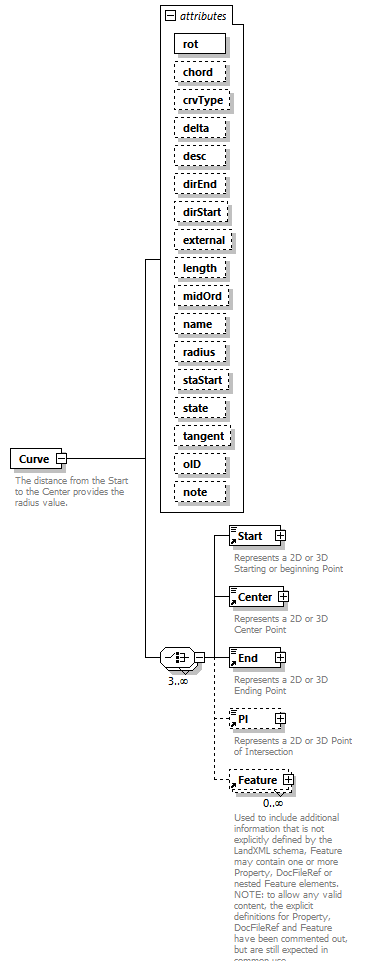

Curve  GPSTime
Curve1  gradeModelNameRef
Curve2  gradeModelNameRefs
DailyTrafficVolume  headOfPowerType

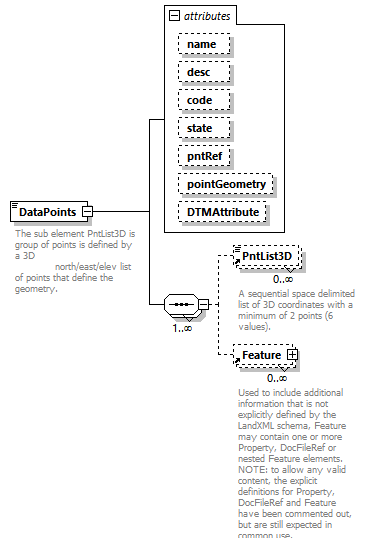

DataPoints  impArea
DecisionSightDistance  impDiameter

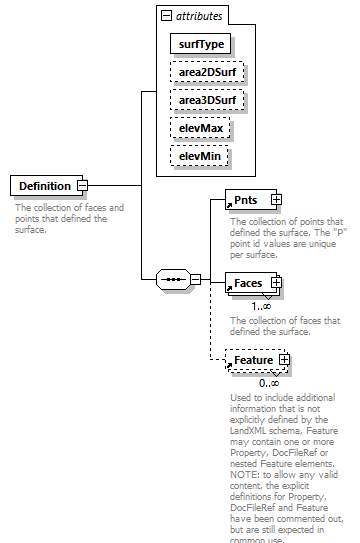

Definition  impFlow

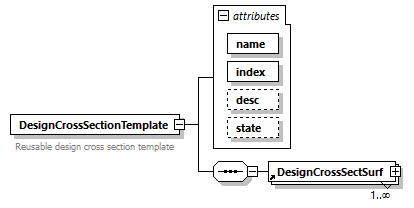

DesignCrossSectionTemplate  impHeight

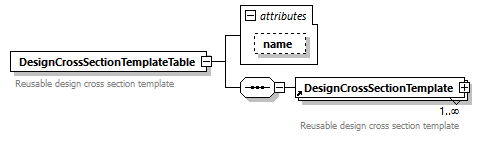

DesignCrossSectionTemplateTable  impLinear

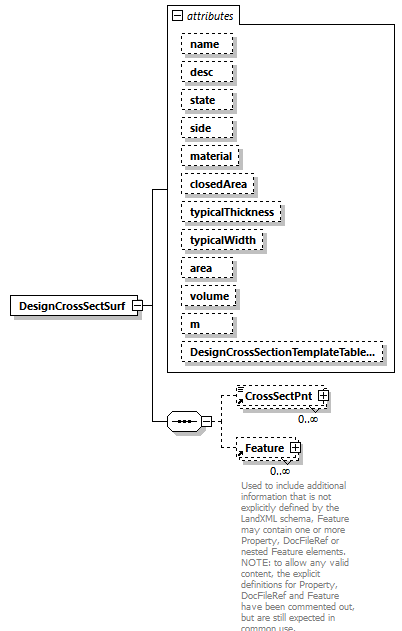

DesignCrossSectSurf  impPressure
DesignHour  impTemperature

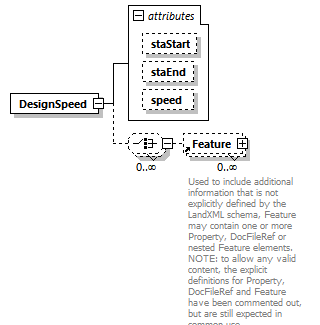

DesignSpeed  impVelocity

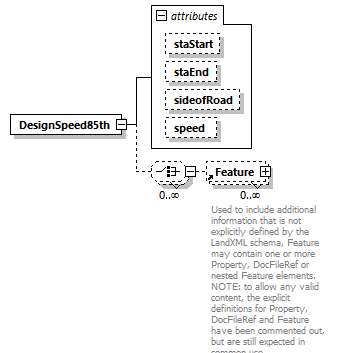

DesignSpeed85th  impVolume
Ditch  impWidth
DitchInlet  inletProfileType
DocFileRef  inOut
DrivewayDensity  intersectionConstructionType
EggPipe  jurisdictionType
ElliPipe  laneTaperType
End  latLongAngle
EndofRunoutSta  latLongAngularType

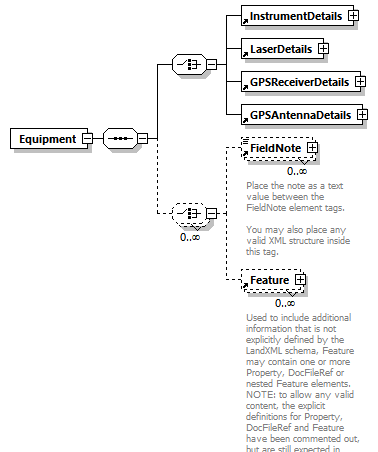

Equipment  lineTypes
Exclusions  maneuverType
F  materialTableIndexRef

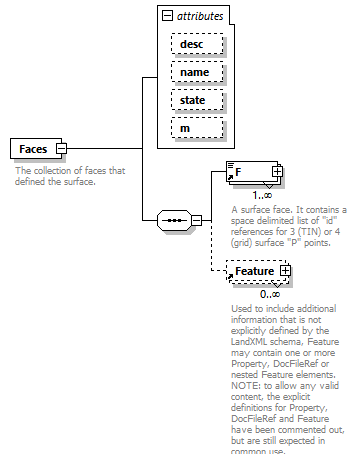

Faces  metArea
Feature  metDiameter

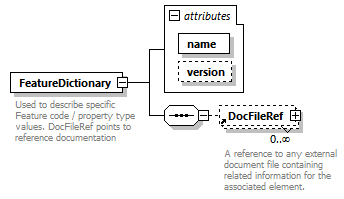

FeatureDictionary  metFlow
FieldNote  metHeight
Flowline  metLinear
Flowlines  metPressure
FullSuperelev  metTemperature
FullSuperSta  metVelocity
GPSAntennaDetails  metVolume

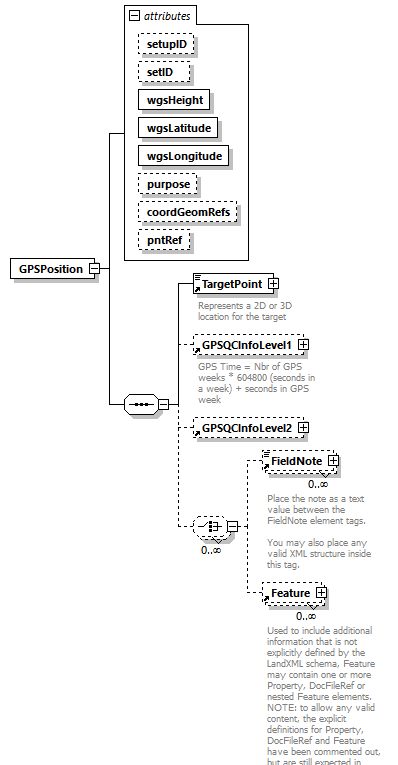

GPSPosition  metWidth
GPSQCInfoLevel1  monumentCategory

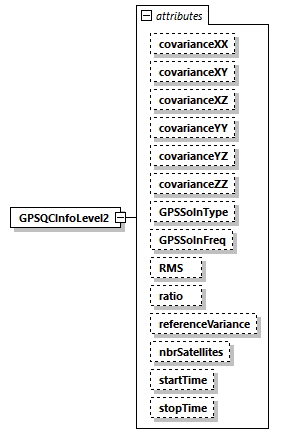

GPSQCInfoLevel2  monumentCondition

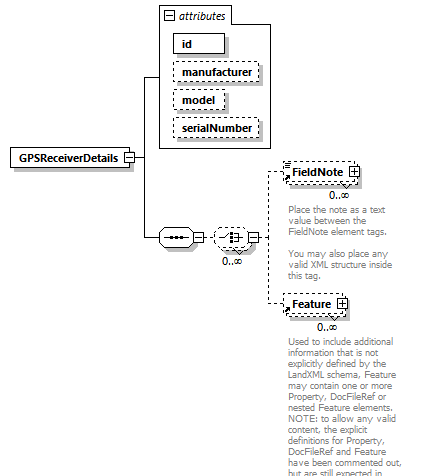

GPSReceiverDetails  monumentNameRef

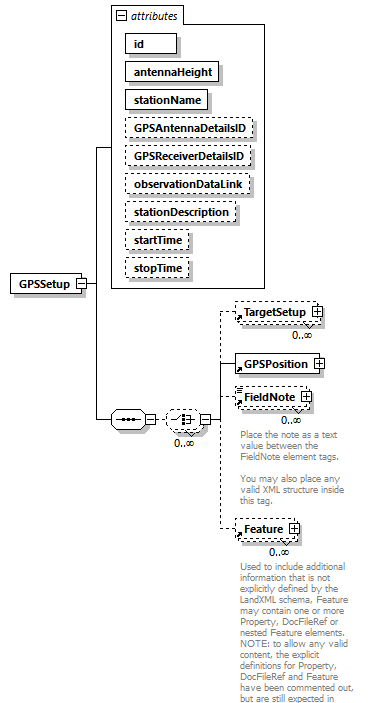

GPSSetup  monumentPurpose
GPSVector  monumentState

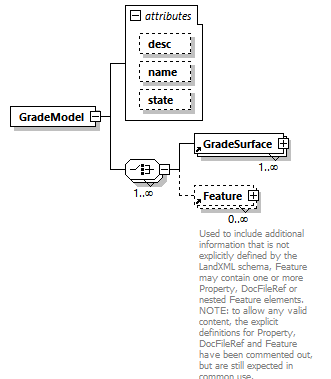

GradeModel  monumentType
GradeSurface  observationStatusType

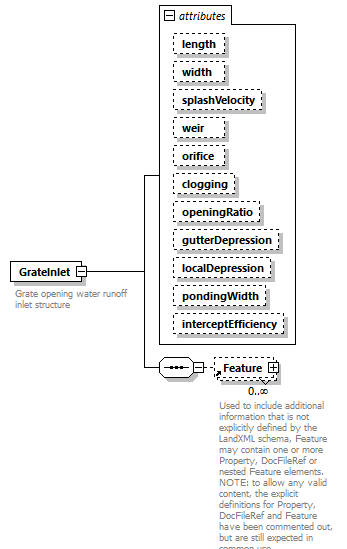

GrateInlet  observationType
HazardRating  offsetDistance
HeadOfPower  offsetElevation

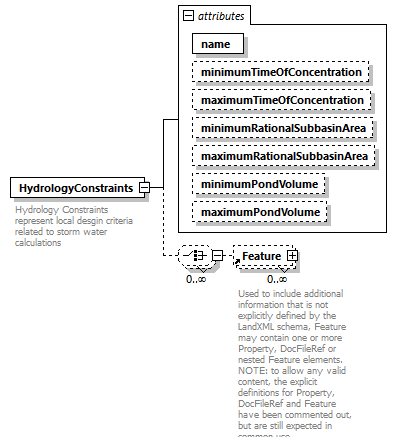

HydrologyConstraints  parcelClass
Imperial  parcelFormat

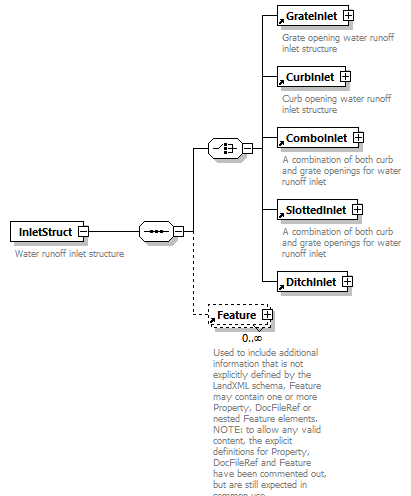

InletStruct  parcelNameRef
InSpiral  parcelNameRefs
InstrumentDetails  parcelStateType
InstrumentPoint  pavementSurfaceType

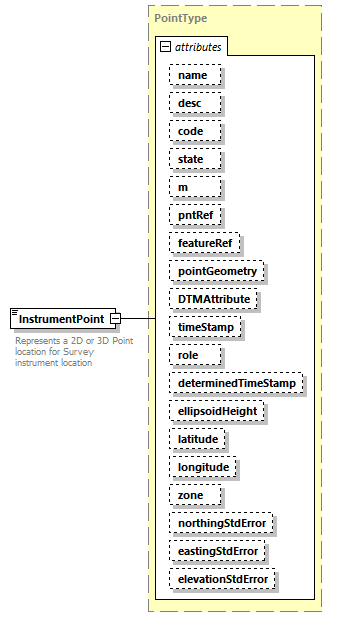

InstrumentSetup  pipeDiameter
Intersection  pipeFlow

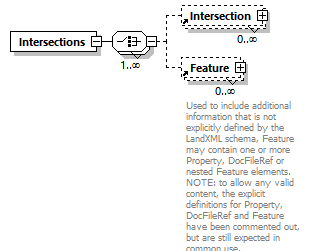

Intersections  pipeMaterialType
Invert  pipeModelNameRef

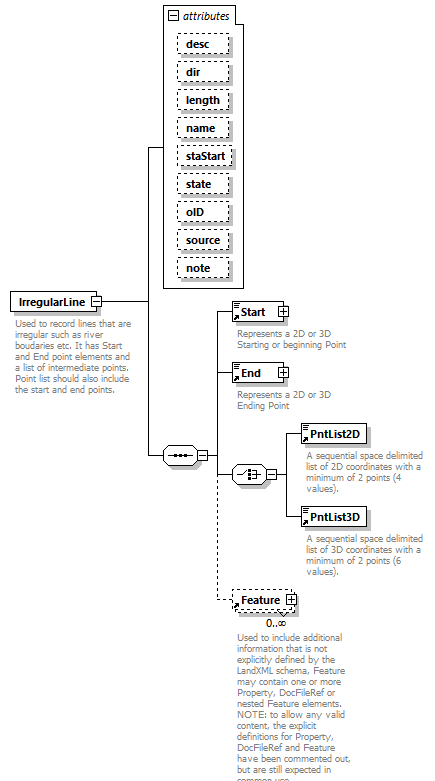

IrregularLine  pipeNameRef

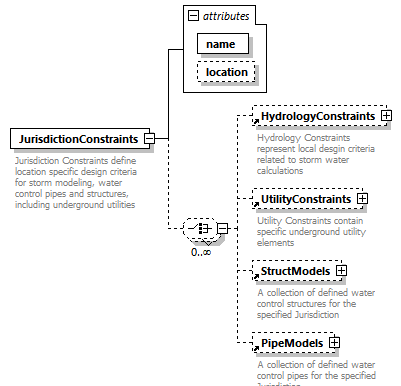

JurisdictionConstraints  pipeNameRefs
LandXML  pipeNetworkType
Lanes  planFeatureNameRef

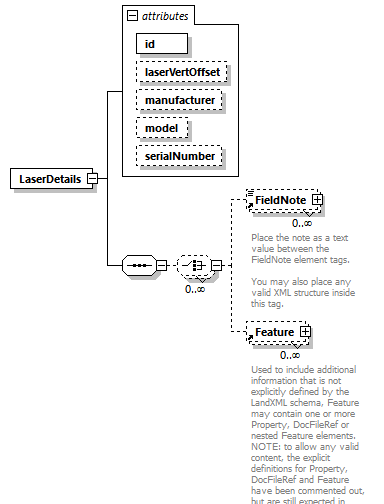

LaserDetails  planFeatureNameRefs
LaserSetup  Point
Line  Point2dReq

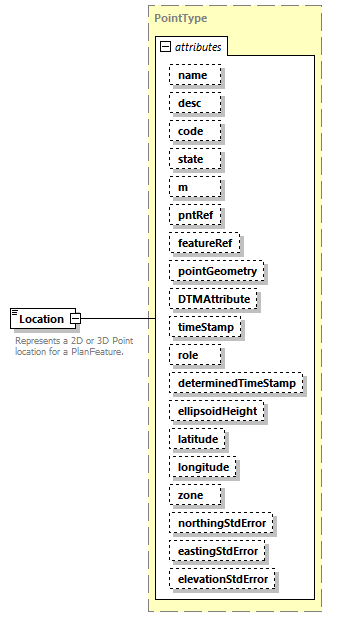

Location  Point3dOpt
LocationAddress  Point3dReq
MapPoint  pointGeometryType

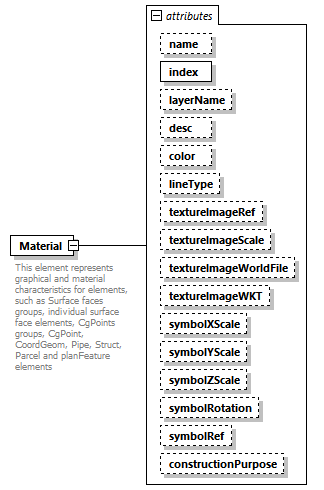

Material  pointNameRef
MaterialTable  pointNameRefs

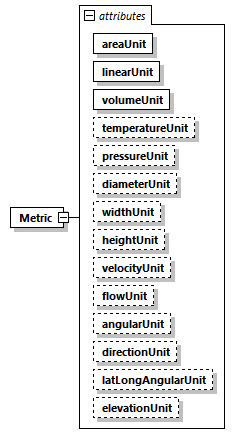

Metric  purposeType

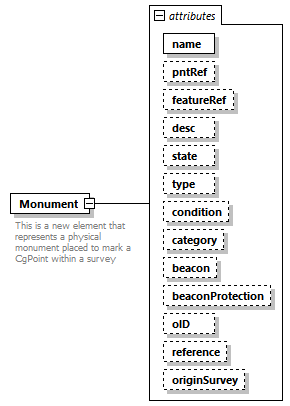

Monument  purpSurvType

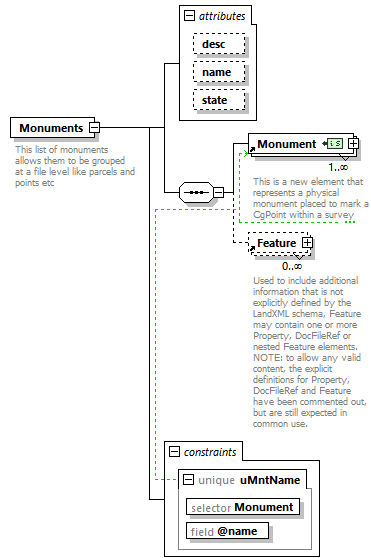

Monuments  registrationType
NoPassingZone  roadNameSuffixType

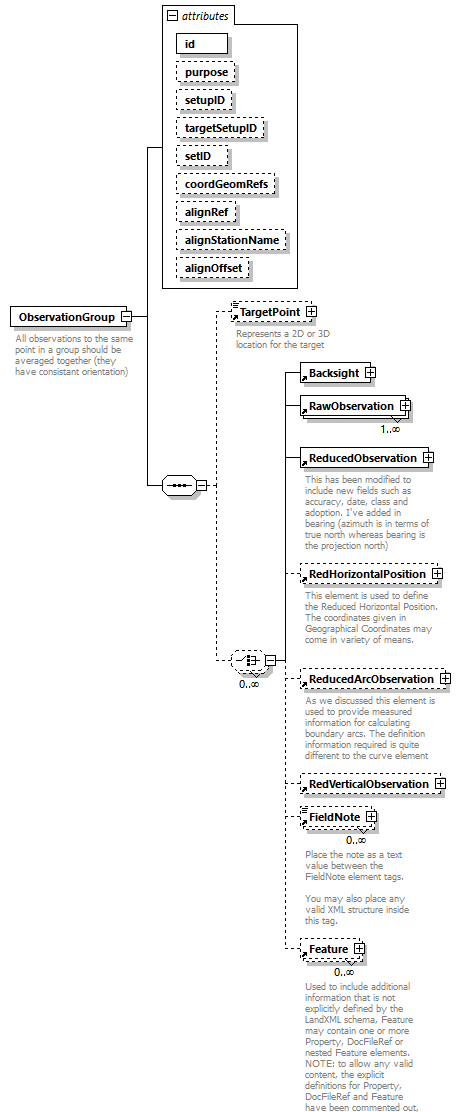

ObservationGroup  roadNameTypeType

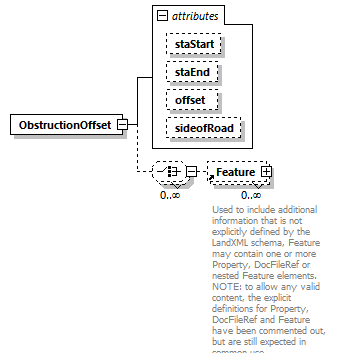

ObstructionOffset  roadSignType

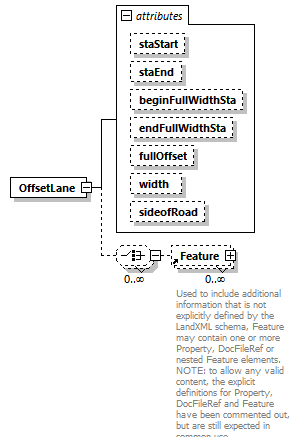

OffsetLane  roadTerrainType
OffsetVals  roadTypeType

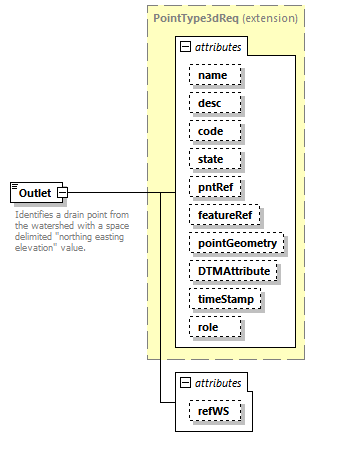

Outlet  roadwayNameRef
OutletStruct  roadwayNameRefs
OutSpiral  shoulderCategoryType

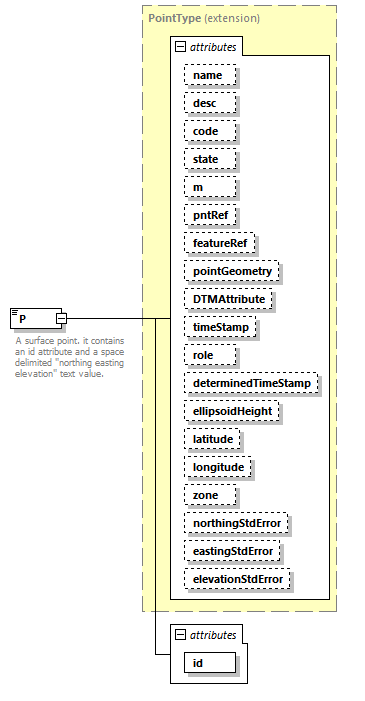

P  shoulderMaterialType
ParaCurve  sideofRoadType
Parcel  sideType
Parcels  slope
PassingLane  speed

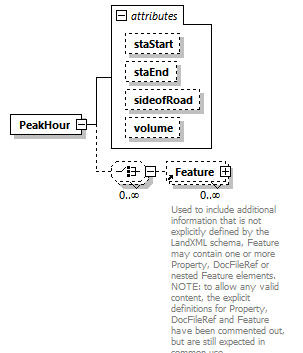

PeakHour  spiralType
Personnel  stateType

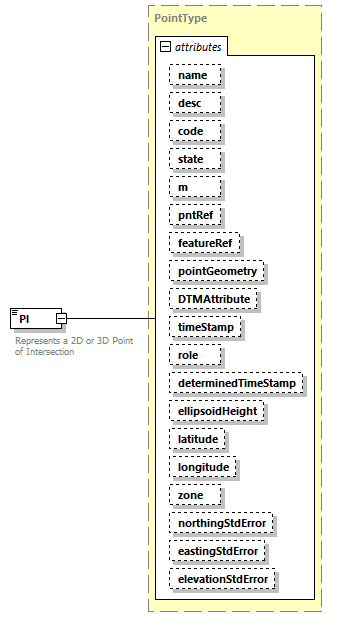

PI  station
Pipe  stationIncrementDirectionType

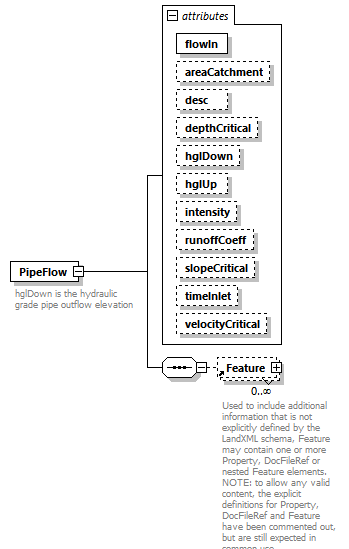

PipeFlow  stormWaterStructureType
PipeModel  structNameRef

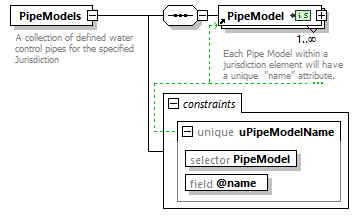

PipeModels  structNameRefs
PipeNetwork  structureModelNameRef
PipeNetworks  surfaceNameRef
Pipes  surfaceNameRefs

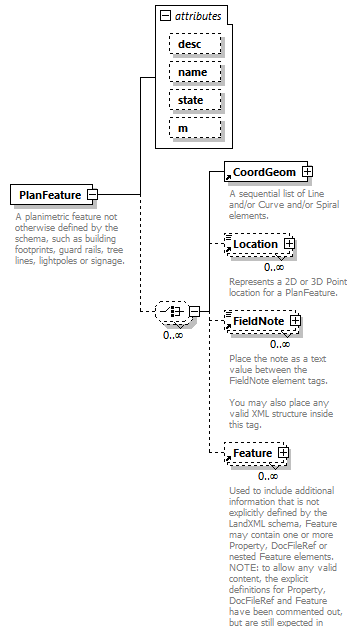

PlanFeature  surfBndType
PlanFeatures  surfFaceType
PntList2D  surfTypeEnum
PntList3D  surfVolCMethodType

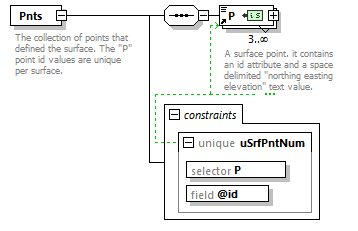

Pnts  surveyFormatType
PointFile  surveyorRoleType

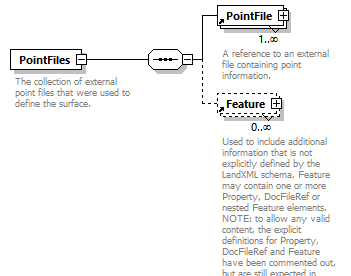

PointFiles  surveyRoleType

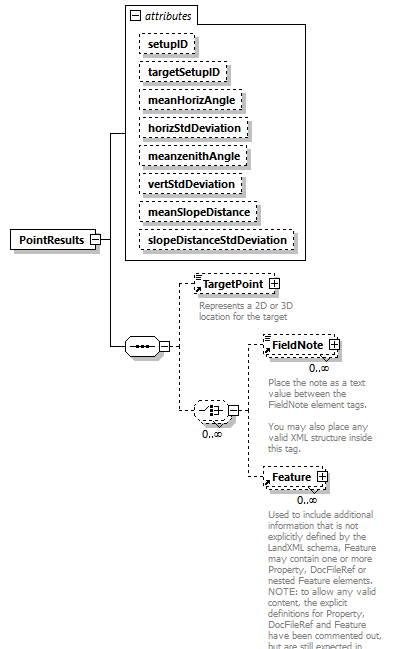

PointResults  surveyStatusType

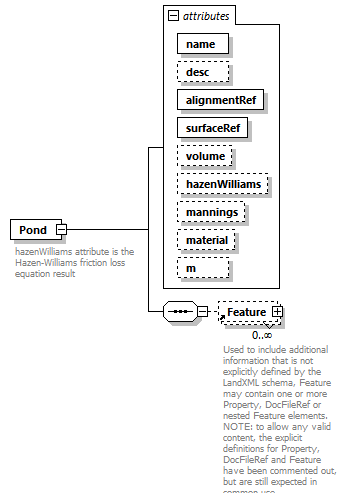

Pond  surveyType

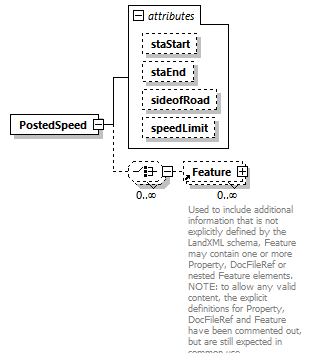

PostedSpeed  survPntType
ProfAlign  symbolType

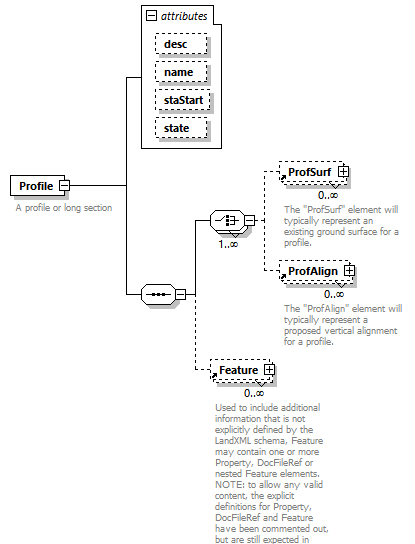

Profile  timeOfConcentration

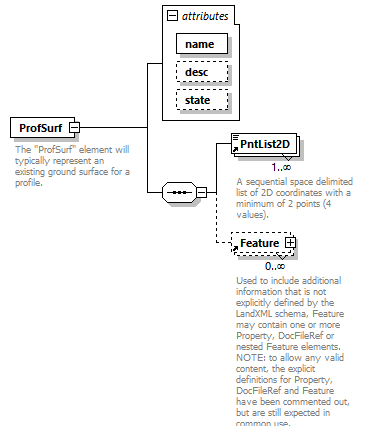

ProfSurf  titleTypeType

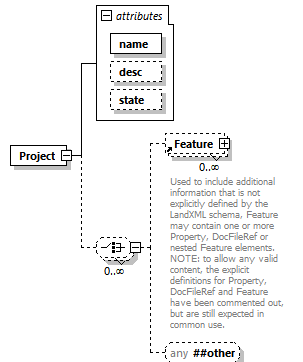

Project  trafficControlPosition
Property  trafficControlType
PurposeOfSurvey  trafficTurnRestriction
PVI  turnLaneType

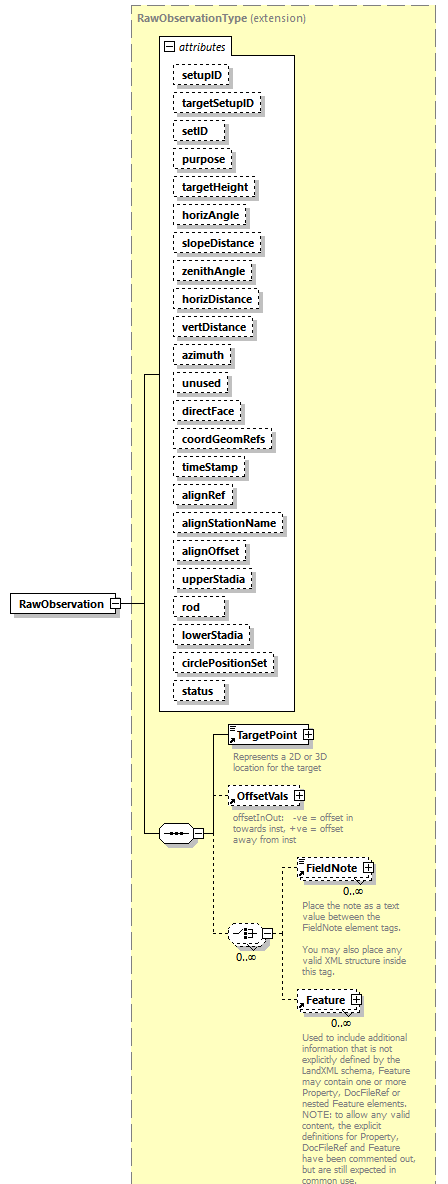

RawObservation  useOfParcelType
RectPipe  volume

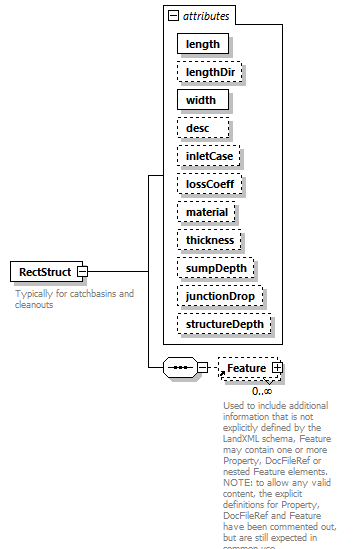

RectStruct  waterShedNameRef
RedHorizontalPosition  xsVolCalcMethodType
ReducedArcObservation  zenithAngle

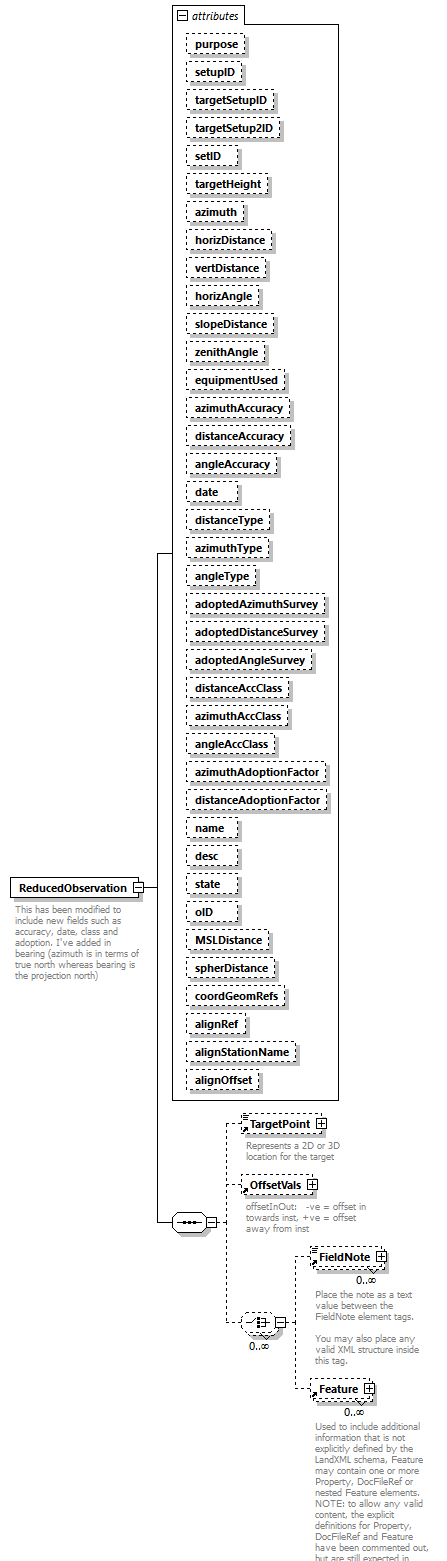

ReducedObservation  zoneCategoryType
RedVerticalObservation  zoneHingeType

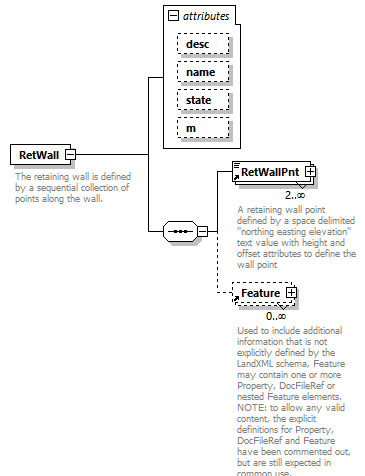

RetWall  zoneMaterialType

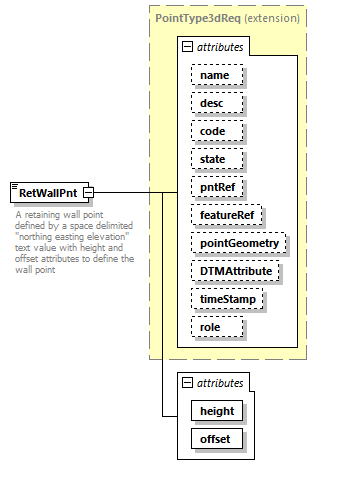

RetWallPnt  zoneNumberType
RoadName  zoneOffsetType

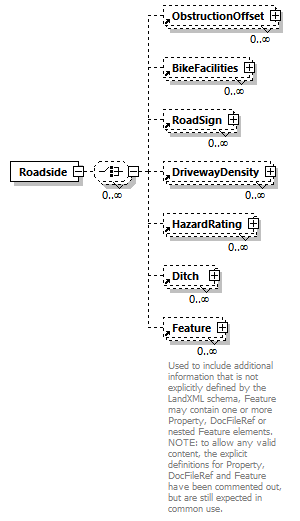

Roadside  zonePlacementType
RoadSign  zoneSurfaceType

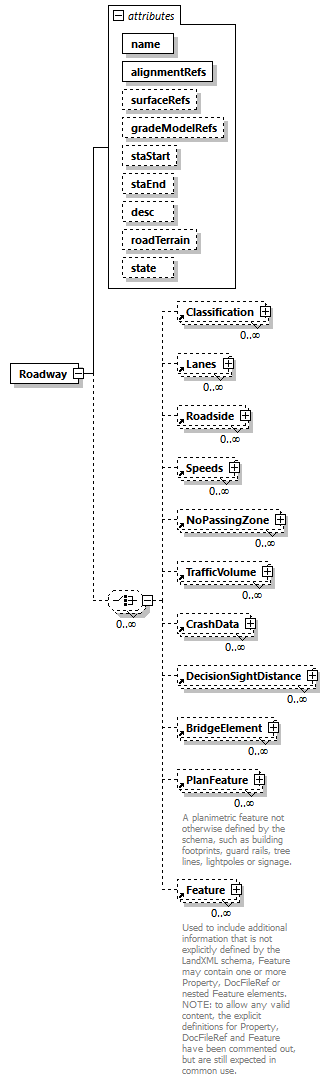

Roadway  zoneTransitionType

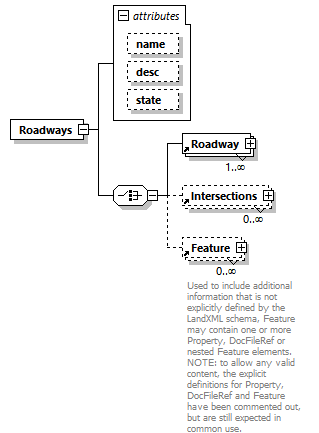

Roadways  zoneVertType
RunoffSta

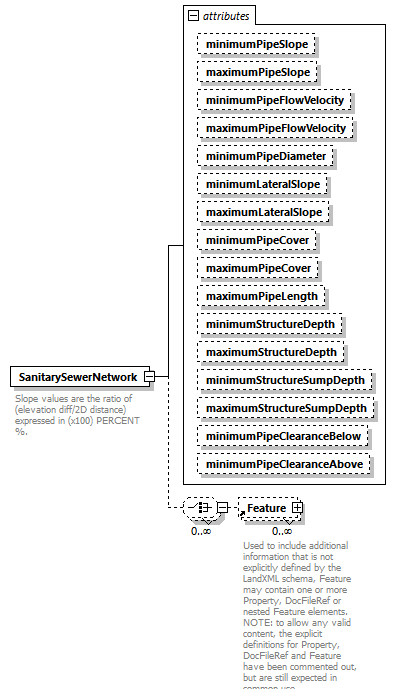

SanitarySewerNetwork

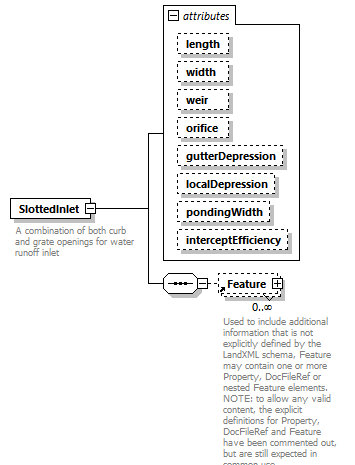

SlottedInlet

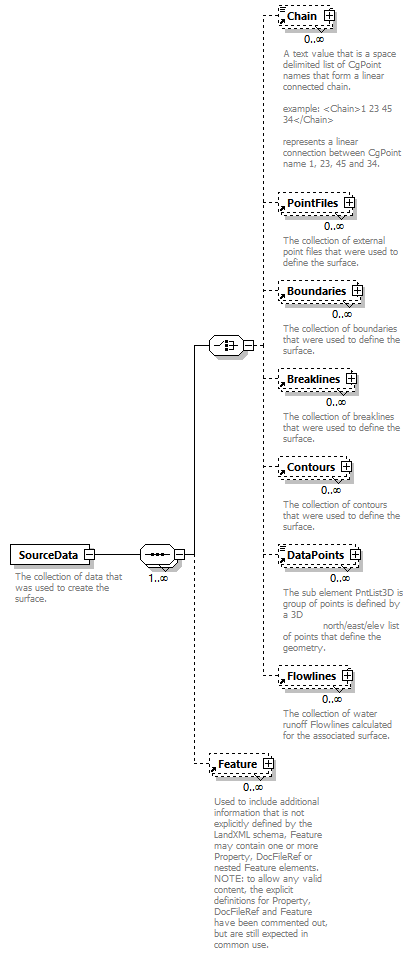

SourceData
Speeds
SpeedStation
Spiral
StaEquation
Start
StartofRunoutSta
Station

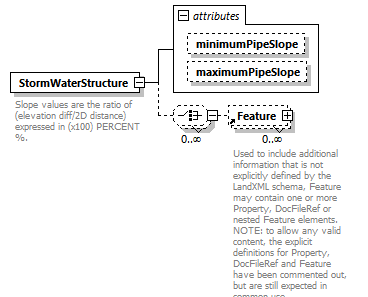

StormWaterNetwork
StormWaterStructure
Struct
StructFlow

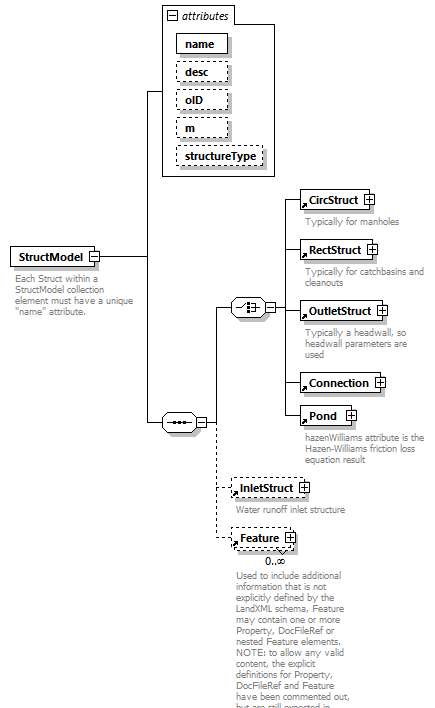

StructModel

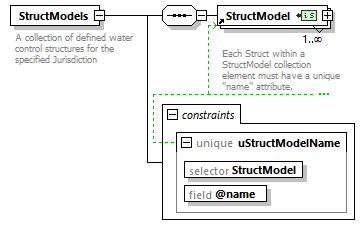

StructModels
Structs
Superelevation
SupplyGasNetwork

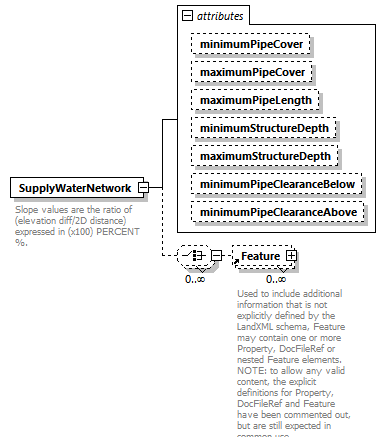

SupplyWaterNetwork

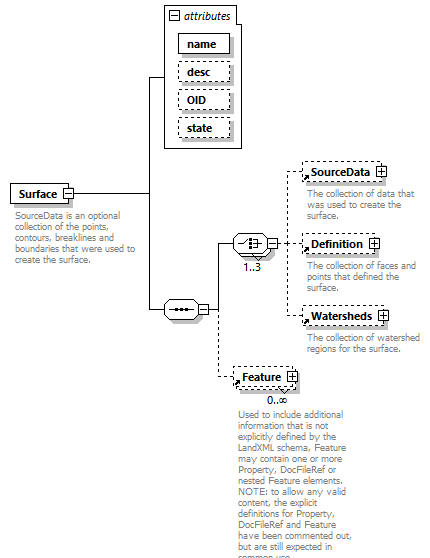

Surface
Surfaces
SurfVolume

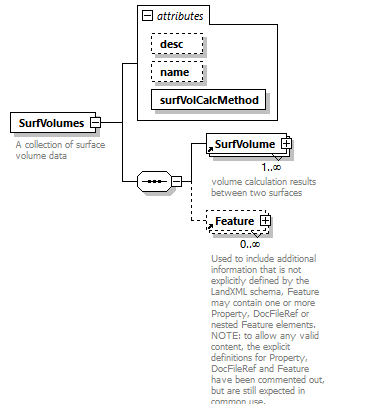

SurfVolumes

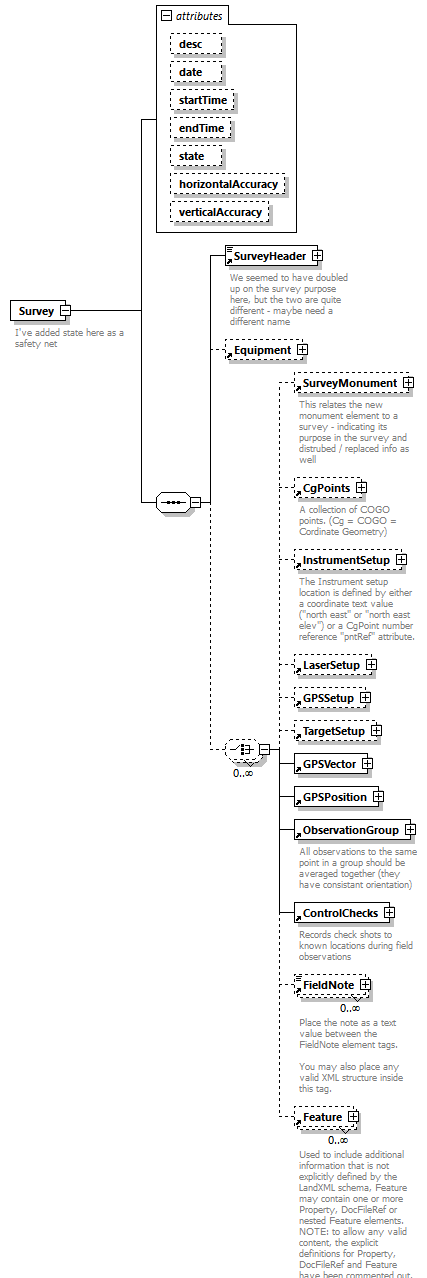

Survey
SurveyHeader

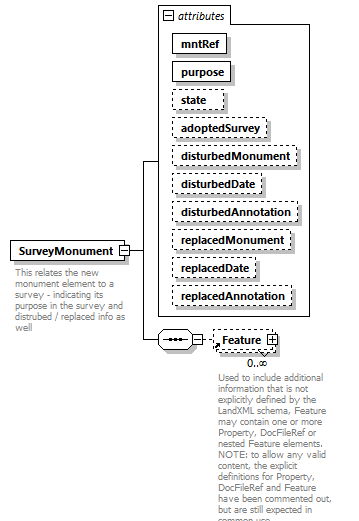

SurveyMonument
SurveyorCertificate
Symbol
SymbolHexString
SymbolTable
TargetPoint

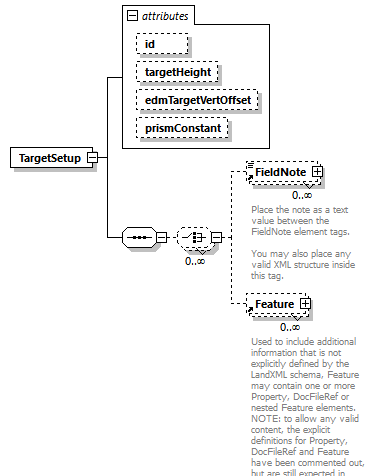

TargetSetup
TestObservation
TextureHexString

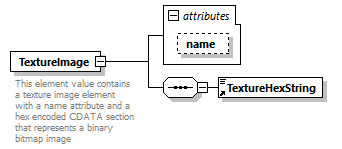

TextureImage
TextureImageNameRef
TextureImageTable
ThruLane

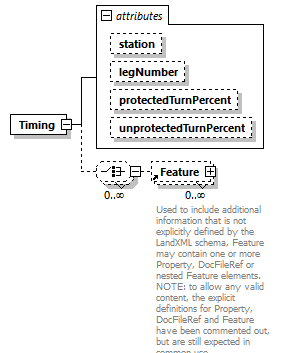

Timing
Title
TrafficControl
TrafficVolume

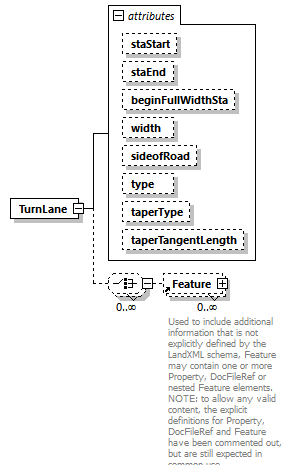

TurnLane
TurnRestriction

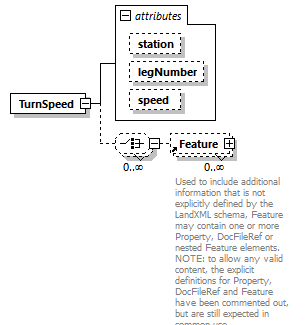

TurnSpeed

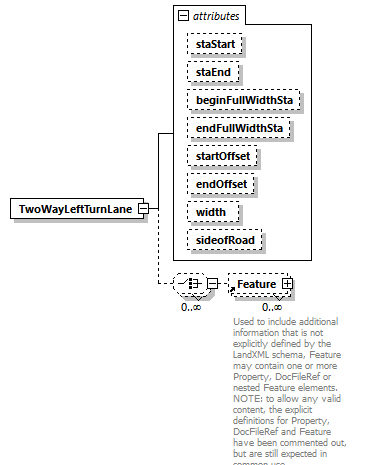

TwoWayLeftTurnLane
Units
UnsymParaCurve
UtilityConstraints
Volume

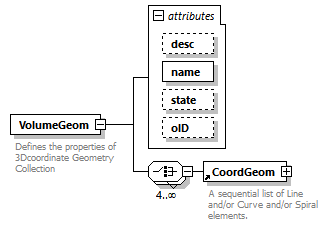

VolumeGeom
Watershed
Watersheds
WideningLane

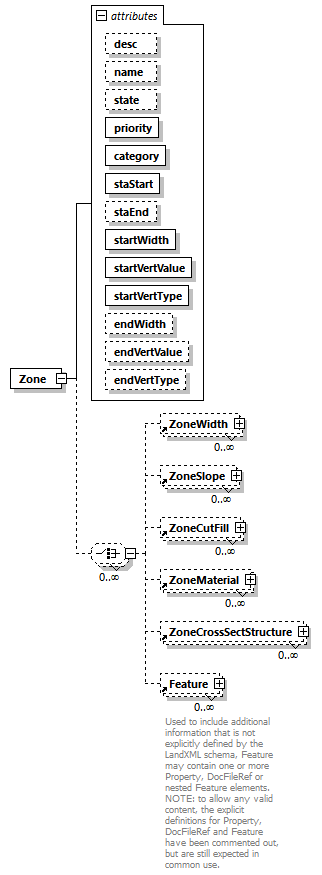

Zone

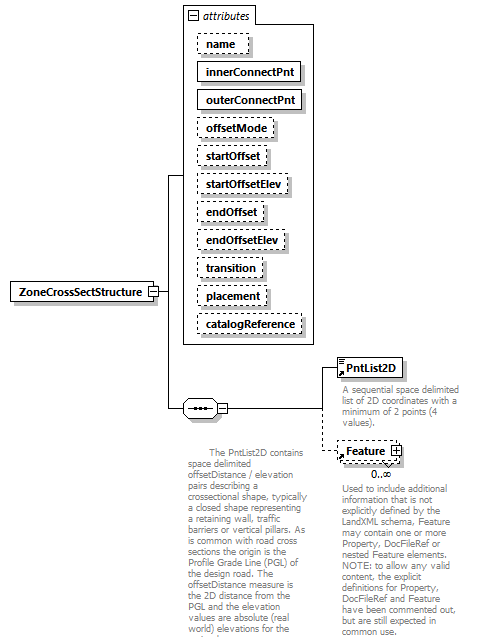

ZoneCrossSectStructure

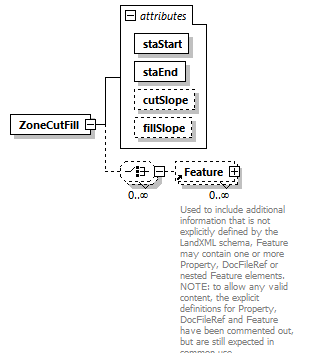

ZoneCutFill
ZoneHinge
ZoneMaterial
Zones

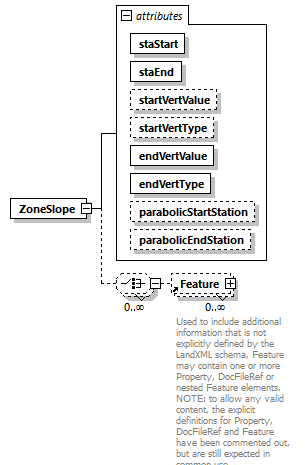

ZoneSlope
ZoneWidth


element AddressPoint

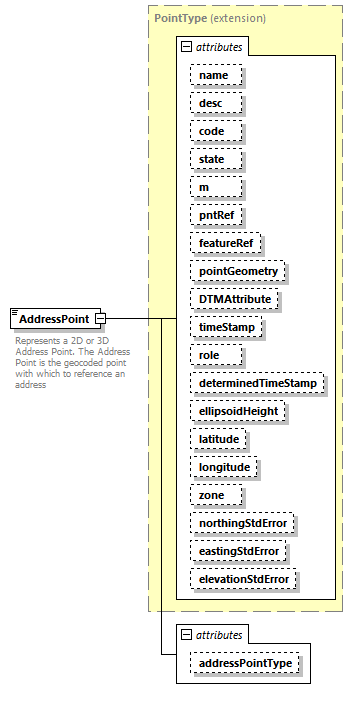

diagram LandXML-2.0_p1.png
namespace http://www.landxml.org/schema/LandXML-2.0
type extension of PointType
properties
content complex
used by
element LocationAddress
facets
Kind Value Annotation
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string
desc  xs:string
code  xs:string
state  stateType
m  materialTableIndexRef  optional
pntRef  pointNameRef
featureRef  featureNameRef  optional
pointGeometry  pointGeometryType
DTMAttribute  DTMAttributeType
timeStamp  xs:dateTime  optional
role  surveyRoleType  optional
determinedTimeStamp  xs:dateTime  optional
ellipsoidHeight  ellipsoidHeightType  optional
latitude  latLongAngle  optional
longitude  latLongAngle  optional
zone  xs:string  optional
northingStdError  xs:double  optional
eastingStdError  xs:double  optional
elevationStdError  xs:double  optional
addressPointType  addressPointTypeType
annotation
documentation
Represents a 2D or 3D Address Point. The Address Point is the geocoded point with which to reference an address
source <xs:element name="AddressPoint">

<xs:annotation>

<xs:documentation>Represents a 2D or 3D Address Point. The Address Point is the geocoded point with which to reference an address</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:simpleContent>

<xs:extension base="PointType">

<xs:attribute name="addressPointType" type="addressPointTypeType"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute AddressPoint/@addressPointType
type addressPointTypeType
source <xs:attribute name="addressPointType" type="addressPointTypeType"/>

element AdministrativeArea
diagram LandXML-2.0_p2.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
used by
elements LocationAddress SurveyHeader
attributes
Name  Type  Use  Default  Fixed  Annotation
adminAreaType  adminAreaTypeType  required
adminAreaName  xs:string
adminAreaCode  xs:string
pclRef  parcelNameRefs
annotation
documentation
This element stores the administrative boundaries for a survey
source <xs:element name="AdministrativeArea">

<xs:annotation>

<xs:documentation>This element stores the administrative boundaries for a survey</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attribute name="adminAreaType" type="adminAreaTypeType" use="required"/>

<xs:attribute name="adminAreaName" type="xs:string"/>

<xs:attribute name="adminAreaCode" type="xs:string"/>

<xs:attribute name="pclRef" type="parcelNameRefs"/>

</xs:complexType>
</xs:element>

attribute AdministrativeArea/@adminAreaType
type adminAreaTypeType
properties
use required
source <xs:attribute name="adminAreaType" type="adminAreaTypeType" use="required"/>

attribute AdministrativeArea/@adminAreaName
type xs:string
source <xs:attribute name="adminAreaName" type="xs:string"/>

attribute AdministrativeArea/@adminAreaCode
type xs:string
source <xs:attribute name="adminAreaCode" type="xs:string"/>

attribute AdministrativeArea/@pclRef
type parcelNameRefs
source <xs:attribute name="pclRef" type="parcelNameRefs"/>

element AdministrativeDate
diagram LandXML-2.0_p3.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
used by
element SurveyHeader
attributes
Name  Type  Use  Default  Fixed  Annotation
adminDateType  adminDateTypeType  required
adminDate  xs:date  required
annotation
documentation
This element stores a range of Administrative dates which may vary from jurisdiction to jurisdiction.
source <xs:element name="AdministrativeDate">

<xs:annotation>

<xs:documentation>This element stores a range of Administrative dates which may vary from jurisdiction to jurisdiction.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attribute name="adminDateType" type="adminDateTypeType" use="required"/>

<xs:attribute name="adminDate" type="xs:date" use="required"/>

</xs:complexType>
</xs:element>

attribute AdministrativeDate/@adminDateType
type adminDateTypeType
properties
use required
source <xs:attribute name="adminDateType" type="adminDateTypeType" use="required"/>

attribute AdministrativeDate/@adminDate
type xs:date
properties
use required
source <xs:attribute name="adminDate" type="xs:date" use="required"/>

element AdverseSE
diagram LandXML-2.0_p4.png
namespace http://www.landxml.org/schema/LandXML-2.0
type adverseSEType
properties
content simple
used by
element Superelevation
facets
Kind Value Annotation
enumeration non-adverse
enumeration adverse
source <xs:element name="AdverseSE" type="adverseSEType"/>

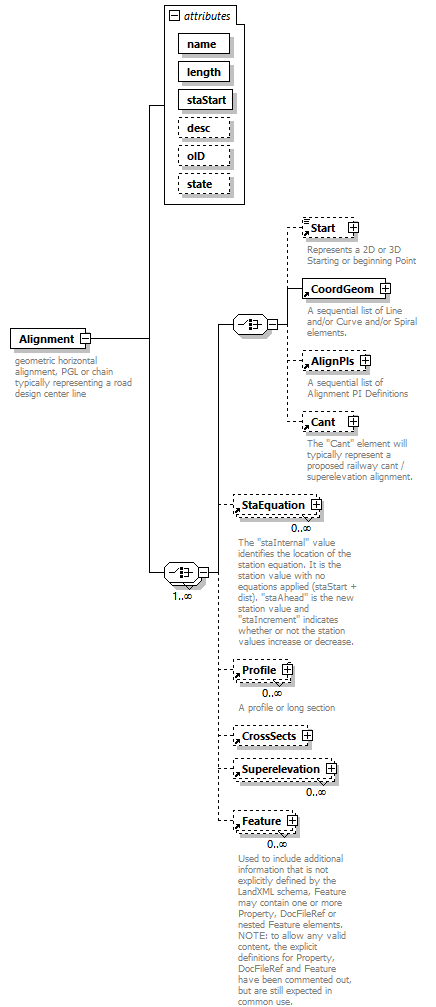

element Alignment
diagram LandXML-2.0_p5.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Start CoordGeom AlignPIs Cant StaEquation Profile CrossSects Superelevation Feature
used by
element Alignments
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string  required
length  xs:double  required
staStart  xs:double  required
desc  xs:string
oID  xs:string
state  stateType
annotation
documentation
geometric horizontal alignment, PGL or chain typically representing a road design center line
source <xs:element name="Alignment">

<xs:annotation>

<xs:documentation>geometric horizontal alignment, PGL or chain typically representing a road design center line</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:choice maxOccurs="unbounded">

<xs:choice>

<xs:element ref="Start" minOccurs="0"/>

<xs:element ref="CoordGeom"/>

<xs:element ref="AlignPIs" minOccurs="0"/>

<xs:element ref="Cant" minOccurs="0"/>

</xs:choice>

<xs:element ref="StaEquation" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Profile" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="CrossSects" minOccurs="0"/>

<xs:element ref="Superelevation" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="length" type="xs:double" use="required"/>

<xs:attribute name="staStart" type="xs:double" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="oID" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>
</xs:element>

attribute Alignment/@name
type xs:string
properties
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute Alignment/@length
type xs:double
properties
use required
source <xs:attribute name="length" type="xs:double" use="required"/>

attribute Alignment/@staStart
type xs:double
properties
use required
source <xs:attribute name="staStart" type="xs:double" use="required"/>

attribute Alignment/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Alignment/@oID
type xs:string
source <xs:attribute name="oID" type="xs:string"/>

attribute Alignment/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

element Alignments
diagram LandXML-2.0_p6.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Alignment Feature
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  Annotation
desc  xs:string
name  xs:string
state  stateType
identity constraints
  Name  Refer  Selector  Field(s)  Annotation
unique  uAlnName    Alignment  @name
annotation
documentation
A collection of horizontal Alignments
source <xs:element name="Alignments">

<xs:annotation>

<xs:documentation>A collection of horizontal Alignments</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Alignment" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>

<xs:unique name="uAlnName">

<xs:selector xpath="Alignment"/>

<xs:field xpath="@name"/>

</xs:unique>
</xs:element>

attribute Alignments/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Alignments/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute Alignments/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

element AlignPI
diagram LandXML-2.0_p7.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Station PI InSpiral Curve1 ConnSpiral Curve2 OutSpiral
used by
element AlignPIs
annotation
documentation
A Single Alignment PI Definition
source <xs:element name="AlignPI">

<xs:annotation>

<xs:documentation>A Single Alignment PI Definition</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:choice maxOccurs="unbounded">

<xs:element ref="Station"/>

<xs:element ref="PI"/>

<xs:element ref="InSpiral" minOccurs="0"/>

<xs:element ref="Curve1" minOccurs="0"/>

<xs:element ref="ConnSpiral" minOccurs="0"/>

<xs:element ref="Curve2" minOccurs="0"/>

<xs:element ref="OutSpiral" minOccurs="0"/>

</xs:choice>

</xs:complexType>
</xs:element>

element AlignPIs
diagram LandXML-2.0_p8.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children AlignPI
used by
element Alignment
annotation
documentation
A sequential list of Alignment PI Definitions
source <xs:element name="AlignPIs">

<xs:annotation>

<xs:documentation>A sequential list of Alignment PI Definitions</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence minOccurs="2" maxOccurs="unbounded">

<xs:element ref="AlignPI"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element Amendment
diagram LandXML-2.0_p9.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children AmendmentItem
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  Annotation
dealingNumber  xs:string
amendmentDate  xs:date
comments  xs:string
annotation
documentation
Records the dealing information to allow  audit trail between the survey document and the titling system
source <xs:element name="Amendment">

<xs:annotation>

<xs:documentation>Records the dealing information to allow  audit trail between the survey document and the titling system</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="AmendmentItem" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="dealingNumber" type="xs:string"/>

<xs:attribute name="amendmentDate" type="xs:date"/>

<xs:attribute name="comments" type="xs:string"/>

</xs:complexType>
</xs:element>

attribute Amendment/@dealingNumber
type xs:string
source <xs:attribute name="dealingNumber" type="xs:string"/>

attribute Amendment/@amendmentDate
type xs:date
source <xs:attribute name="amendmentDate" type="xs:date"/>

attribute Amendment/@comments
type xs:string
source <xs:attribute name="comments" type="xs:string"/>

element AmendmentItem
diagram LandXML-2.0_p10.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
used by
element Amendment
attributes
Name  Type  Use  Default  Fixed  Annotation
elementName  xs:string
oldName  xs:string
newName  xs:string
source <xs:element name="AmendmentItem">

<xs:complexType>

<xs:attribute name="elementName" type="xs:string"/>

<xs:attribute name="oldName" type="xs:string"/>

<xs:attribute name="newName" type="xs:string"/>

</xs:complexType>
</xs:element>

attribute AmendmentItem/@elementName
type xs:string
source <xs:attribute name="elementName" type="xs:string"/>

attribute AmendmentItem/@oldName
type xs:string
source <xs:attribute name="oldName" type="xs:string"/>

attribute AmendmentItem/@newName
type xs:string
source <xs:attribute name="newName" type="xs:string"/>

element Annotation
diagram LandXML-2.0_p11.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
used by
element SurveyHeader
attributes
Name  Type  Use  Default  Fixed  Annotation
type  annotationType  required
name  xs:string
desc  xs:string
pclRef  parcelNameRefs
annotation
documentation
Annotation is a descriptive string use to describe an action on survey
source <xs:element name="Annotation">

<xs:annotation>

<xs:documentation>Annotation is a descriptive string use to describe an action on survey</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attribute name="type" type="annotationType" use="required"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="pclRef" type="parcelNameRefs"/>

</xs:complexType>
</xs:element>

attribute Annotation/@type
type annotationType
properties
use required
source <xs:attribute name="type" type="annotationType" use="required"/>

attribute Annotation/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute Annotation/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Annotation/@pclRef
type parcelNameRefs
source <xs:attribute name="pclRef" type="parcelNameRefs"/>

element Application
diagram LandXML-2.0_p12.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
mixed true
children Author
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string  required
desc  xs:string
manufacturer  xs:string
version  xs:string
manufacturerURL  xs:string
timeStamp  xs:dateTime  optional
annotation
documentation
Optional element to identify the software that was used to create the file.
source <xs:element name="Application">

<xs:annotation>

<xs:documentation>Optional element to identify the software that was used to create the file.</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:sequence>

<xs:choice>

<xs:element ref="Author" minOccurs="0" maxOccurs="unbounded"/>

<xs:any namespace="##other" processContents="skip" minOccurs="0"/>

</xs:choice>

</xs:sequence>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="manufacturer" type="xs:string"/>

<xs:attribute name="version" type="xs:string"/>

<xs:attribute name="manufacturerURL" type="xs:string"/>

<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

<xs:anyAttribute/>

</xs:complexType>
</xs:element>

attribute Application/@name
type xs:string
properties
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute Application/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Application/@manufacturer
type xs:string
source <xs:attribute name="manufacturer" type="xs:string"/>

attribute Application/@version
type xs:string
source <xs:attribute name="version" type="xs:string"/>

attribute Application/@manufacturerURL
type xs:string
source <xs:attribute name="manufacturerURL" type="xs:string"/>

attribute Application/@timeStamp
type xs:dateTime
properties
use optional
source <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

element Author
diagram LandXML-2.0_p13.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
mixed true
used by
element Application
attributes
Name  Type  Use  Default  Fixed  Annotation
createdBy  xs:string
createdByEmail  xs:string
company  xs:string
companyURL  xs:string
timeStamp  xs:dateTime  optional
annotation
documentation
Optional element to identify the source of the file.
source <xs:element name="Author">

<xs:annotation>

<xs:documentation>Optional element to identify the source of the file.</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:sequence>

<xs:any namespace="##other" processContents="skip" minOccurs="0"/>

</xs:sequence>

<xs:attribute name="createdBy" type="xs:string"/>

<xs:attribute name="createdByEmail" type="xs:string"/>

<xs:attribute name="company" type="xs:string"/>

<xs:attribute name="companyURL" type="xs:string"/>

<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

<xs:anyAttribute/>

</xs:complexType>
</xs:element>

attribute Author/@createdBy
type xs:string
source <xs:attribute name="createdBy" type="xs:string"/>

attribute Author/@createdByEmail
type xs:string
source <xs:attribute name="createdByEmail" type="xs:string"/>

attribute Author/@company
type xs:string
source <xs:attribute name="company" type="xs:string"/>

attribute Author/@companyURL
type xs:string
source <xs:attribute name="companyURL" type="xs:string"/>

attribute Author/@timeStamp
type xs:dateTime
properties
use optional
source <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

element Backsight
diagram LandXML-2.0_p14.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children BacksightPoint FieldNote Feature
used by
elements InstrumentSetup LaserSetup ObservationGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID
azimuth  direction
targetHeight  xs:double
circle  angle  required
setupID  xs:IDREF
source <xs:element name="Backsight">

<xs:annotation>

<xs:documentation/>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="BacksightPoint" minOccurs="0"/>

<xs:choice>

<xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

</xs:sequence>

<xs:attribute name="id" type="xs:ID"/>

<xs:attribute name="azimuth" type="direction"/>

<xs:attribute name="targetHeight" type="xs:double"/>

<xs:attribute name="circle" type="angle" use="required"/>

<xs:attribute name="setupID" type="xs:IDREF"/>

</xs:complexType>
</xs:element>

attribute Backsight/@id
type xs:ID
source <xs:attribute name="id" type="xs:ID"/>

attribute Backsight/@azimuth
type direction
source <xs:attribute name="azimuth" type="direction"/>

attribute Backsight/@targetHeight
type xs:double
source <xs:attribute name="targetHeight" type="xs:double"/>

attribute Backsight/@circle
type angle
properties
use required
source <xs:attribute name="circle" type="angle" use="required"/>

attribute Backsight/@setupID
type xs:IDREF
source <xs:attribute name="setupID" type="xs:IDREF"/>

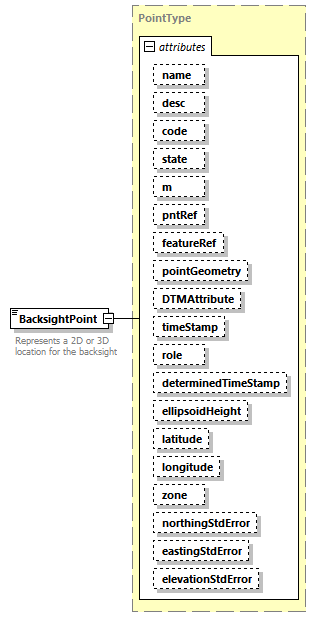

element BacksightPoint
diagram LandXML-2.0_p15.png
namespace http://www.landxml.org/schema/LandXML-2.0
type PointType
properties
content complex
mixed true
used by
element Backsight
facets
Kind Value Annotation
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string
desc  xs:string
code  xs:string
state  stateType
m  materialTableIndexRef  optional
pntRef  pointNameRef
featureRef  featureNameRef  optional
pointGeometry  pointGeometryType
DTMAttribute  DTMAttributeType
timeStamp  xs:dateTime  optional
role  surveyRoleType  optional
determinedTimeStamp  xs:dateTime  optional
ellipsoidHeight  ellipsoidHeightType  optional
latitude  latLongAngle  optional
longitude  latLongAngle  optional
zone  xs:string  optional
northingStdError  xs:double  optional
eastingStdError  xs:double  optional
elevationStdError  xs:double  optional
annotation
documentation
Represents a 2D or 3D location for the backsight
documentation
It is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.
source <xs:element name="BacksightPoint" type="PointType">

<xs:annotation>

<xs:documentation>Represents a 2D or 3D location for the backsight</xs:documentation>

<xs:documentation>It is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.</xs:documentation>

</xs:annotation>
</xs:element>

element BeginRunoffSta
diagram LandXML-2.0_p16.png
namespace http://www.landxml.org/schema/LandXML-2.0
type station
properties
content simple
nillable true
used by
element Superelevation
source <xs:element name="BeginRunoffSta" type="station" nillable="true"/>

element BeginRunoutSta
diagram LandXML-2.0_p17.png
namespace http://www.landxml.org/schema/LandXML-2.0
type station
properties
content simple
nillable true
used by
element Superelevation
source <xs:element name="BeginRunoutSta" type="station" nillable="true"/>

element BikeFacilities

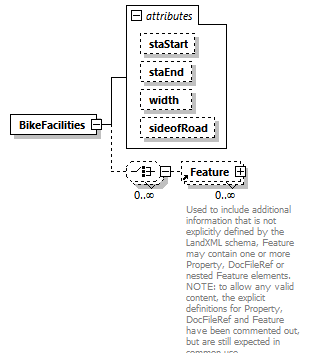

diagram LandXML-2.0_p18.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
element Roadside
attributes
Name  Type  Use  Default  Fixed  Annotation
staStart  station
staEnd  station
width  xs:double
sideofRoad  sideofRoadType
source <xs:element name="BikeFacilities">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="width" type="xs:double"/>

<xs:attribute name="sideofRoad" type="sideofRoadType"/>

</xs:complexType>
</xs:element>

attribute BikeFacilities/@staStart
type station
source <xs:attribute name="staStart" type="station"/>

attribute BikeFacilities/@staEnd
type station
source <xs:attribute name="staEnd" type="station"/>

attribute BikeFacilities/@width
type xs:double
source <xs:attribute name="width" type="xs:double"/>

attribute BikeFacilities/@sideofRoad
type sideofRoadType
facets
Kind Value Annotation
enumeration right
enumeration left
enumeration both
source <xs:attribute name="sideofRoad" type="sideofRoadType"/>

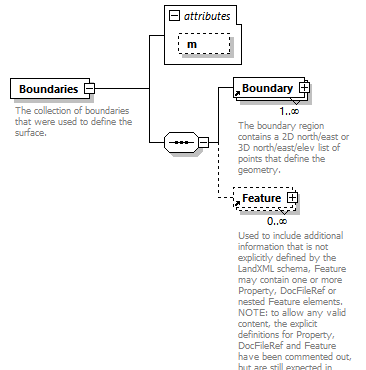

element Boundaries
diagram LandXML-2.0_p19.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Boundary Feature
used by
element SourceData
attributes
Name  Type  Use  Default  Fixed  Annotation
m  materialTableIndexRef  optional
annotation
documentation
The collection of boundaries that were used to define the surface.
documentation
Use is optional.
source <xs:element name="Boundaries">

<xs:annotation>

<xs:documentation>The collection of boundaries that were used to define the surface.</xs:documentation>

<xs:documentation>Use is optional.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Boundary" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

</xs:complexType>
</xs:element>

attribute Boundaries/@m
type materialTableIndexRef
properties
use optional
source <xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

element Boundary
diagram LandXML-2.0_p20.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children PntList2D PntList3D Feature
used by
element Boundaries
attributes
Name  Type  Use  Default  Fixed  Annotation
bndType  surfBndType  required
edgeTrim  xs:boolean
area  xs:double
desc  xs:string
name  xs:string
state  stateType
coefficient  xs:double
cn  xs:integer
m  materialTableIndexRef  optional
annotation
documentation
The boundary region contains a 2D north/east or 3D north/east/elev list of points that define the geometry.
documentation
is identified by the "name" attribute.
documentation
If the "edgeTrim" attribute is true the faces are trimmed at the boundary edge, otherwise faces are not trimmed
documentation
and must exist entirely within the boundary.
documentation
coefficient = Hydrology Rational method runoff coefficient (double value between 0.0-1.0) for the land cover type.
documentation
cn = Hydrology SCS runoff method CN number (Integer value between 0-100).
documentation
m is the material table index for color and texture data.
source <xs:element name="Boundary">

<xs:annotation>

<xs:documentation>The boundary region contains a 2D north/east or 3D north/east/elev list of points that define the geometry.</xs:documentation>

<xs:documentation>is identified by the "name" attribute.</xs:documentation>

<xs:documentation>If the "edgeTrim" attribute is true the faces are trimmed at the boundary edge, otherwise faces are not trimmed</xs:documentation>

<xs:documentation>and must exist entirely within the boundary.</xs:documentation>

<xs:documentation>coefficient = Hydrology Rational method runoff coefficient (double value between 0.0-1.0) for the land cover type.</xs:documentation>

<xs:documentation>cn = Hydrology SCS runoff method CN number (Integer value between 0-100).</xs:documentation>

<xs:documentation>m is the material table index for color and texture data.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:choice>

<xs:element ref="PntList2D"/>

<xs:element ref="PntList3D"/>

<!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="bndType" type="surfBndType" use="required"/>

<xs:attribute name="edgeTrim" type="xs:boolean"/>

<xs:attribute name="area" type="xs:double"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="coefficient" type="xs:double"/>

<xs:attribute name="cn" type="xs:integer"/>

<xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

</xs:complexType>
</xs:element>

attribute Boundary/@bndType
type surfBndType
properties
use required
facets
Kind Value Annotation
enumeration outer
enumeration void
enumeration island
enumeration texture
source <xs:attribute name="bndType" type="surfBndType" use="required"/>

attribute Boundary/@edgeTrim
type xs:boolean
source <xs:attribute name="edgeTrim" type="xs:boolean"/>

attribute Boundary/@area
type xs:double
source <xs:attribute name="area" type="xs:double"/>

attribute Boundary/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Boundary/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute Boundary/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Boundary/@coefficient
type xs:double
source <xs:attribute name="coefficient" type="xs:double"/>

attribute Boundary/@cn
type xs:integer
source <xs:attribute name="cn" type="xs:integer"/>

attribute Boundary/@m
type materialTableIndexRef
properties
use optional
source <xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

element Breakline
diagram LandXML-2.0_p21.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children PntList2D PntList3D Feature
used by
element Breaklines
attributes
Name  Type  Use  Default  Fixed  Annotation
brkType  breakLineType
desc  xs:string
name  xs:string
state  stateType
m  materialTableIndexRef  optional
annotation
documentation
The breakline is defined by a 2D north/east or 3D north/east/elev list of points that define the geometry.
documentation
is identified by the "name" attribute.
source <xs:element name="Breakline">

<xs:annotation>

<xs:documentation>The breakline is defined by a 2D north/east or 3D north/east/elev list of points that define the geometry.</xs:documentation>

<xs:documentation>is identified by the "name" attribute.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:choice>

<xs:element ref="PntList2D"/>

<xs:element ref="PntList3D"/>

<!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="brkType" type="breakLineType"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

</xs:complexType>
</xs:element>

attribute Breakline/@brkType
type breakLineType
facets
Kind Value Annotation
enumeration standard
enumeration wall
enumeration proximity
enumeration nondestructive
source <xs:attribute name="brkType" type="breakLineType"/>

attribute Breakline/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Breakline/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute Breakline/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Breakline/@m
type materialTableIndexRef
properties
use optional
source <xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

element Breaklines
diagram LandXML-2.0_p22.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Breakline RetWall Feature
used by
element SourceData
attributes
Name  Type  Use  Default  Fixed  Annotation
m  materialTableIndexRef  optional
annotation
documentation
The collection of breaklines that were used to define the surface.
documentation
Use is optional.
source <xs:element name="Breaklines">

<xs:annotation>

<xs:documentation>The collection of breaklines that were used to define the surface.</xs:documentation>

<xs:documentation>Use is optional.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Breakline" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="RetWall" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

</xs:complexType>
</xs:element>

attribute Breaklines/@m
type materialTableIndexRef
properties
use optional
source <xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

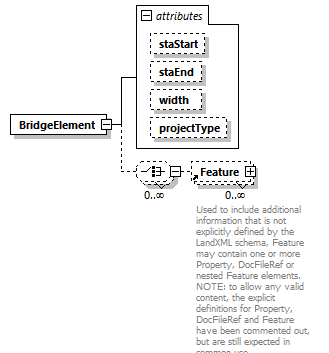

element BridgeElement
diagram LandXML-2.0_p23.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
element Roadway
attributes
Name  Type  Use  Default  Fixed  Annotation
staStart  station
staEnd  station
width  xs:double
projectType  bridgeProjectType
source <xs:element name="BridgeElement">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="width" type="xs:double"/>

<xs:attribute name="projectType" type="bridgeProjectType"/>

</xs:complexType>
</xs:element>

attribute BridgeElement/@staStart
type station
source <xs:attribute name="staStart" type="station"/>

attribute BridgeElement/@staEnd
type station
source <xs:attribute name="staEnd" type="station"/>

attribute BridgeElement/@width
type xs:double
source <xs:attribute name="width" type="xs:double"/>

attribute BridgeElement/@projectType
type bridgeProjectType
facets
Kind Value Annotation
enumeration new
enumeration existing
source <xs:attribute name="projectType" type="bridgeProjectType"/>

element Cant
diagram LandXML-2.0_p24.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children CantStation SpeedStation Feature
used by
element Alignment
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string  required
desc  xs:string  optional
state  stateType  optional
equilibriumConstant  xs:double  optional
appliedCantConstant  xs:double  optional
gauge  xs:double  required
rotationPoint  xs:string  optional
annotation
documentation
The "Cant" element will typically represent a proposed railway cant / superelevation alignment.
documentation
It is defined by a sequential series of any combination of the cant stations and speed-only stations.
The “name”, “desc” and “state” attributes are typical LandXML “alignment” attributes.
The “equilibriumConstant” is a unitless optional double that is used as the equilibrium constant in the cant equilibrium equation (cant = constant * speed * speed / radius).
The “appliedCantConstant” is a unitless optional double that is used as the applied cant constant in the cant equilibrium equation (cant = constant * speed * speed / radius).
The “gauge” is a required double that is the rail to rail distance.  This value is expressed in meters or feet depending upon the units.
The “rotationPoint” is an optional string that defines the rotation point.  Valid values are “insideRail”, “outsideRail”, “center”, “leftRail” and “rightRail”.
source <xs:element name="Cant">

<xs:annotation>

<xs:documentation>The "Cant" element will typically represent a proposed railway cant / superelevation alignment.</xs:documentation>

<xs:documentation>It is defined by a sequential series of any combination of the cant stations and speed-only stations.
The “name”, “desc” and “state” attributes are typical LandXML “alignment” attributes.
The “equilibriumConstant” is a unitless optional double that is used as the equilibrium constant in the cant equilibrium equation (cant = constant * speed * speed / radius).
The “appliedCantConstant” is a unitless optional double that is used as the applied cant constant in the cant equilibrium equation (cant = constant * speed * speed / radius).
The “gauge” is a required double that is the rail to rail distance.  This value is expressed in meters or feet depending upon the units.
The “rotationPoint” is an optional string that defines the rotation point.  Valid values are “insideRail”, “outsideRail”, “center”, “leftRail” and “rightRail”.
</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:choice maxOccurs="unbounded">

<xs:element ref="CantStation" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="SpeedStation" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="desc" type="xs:string" use="optional"/>

<xs:attribute name="state" type="stateType" use="optional"/>

<xs:attribute name="equilibriumConstant" type="xs:double" use="optional"/>

<xs:attribute name="appliedCantConstant" type="xs:double" use="optional"/>

<xs:attribute name="gauge" type="xs:double" use="required"/>

<xs:attribute name="rotationPoint" type="xs:string" use="optional"/>

</xs:complexType>
</xs:element>

attribute Cant/@name
type xs:string
properties
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute Cant/@desc
type xs:string
properties
use optional
source <xs:attribute name="desc" type="xs:string" use="optional"/>

attribute Cant/@state
type stateType
properties
use optional
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType" use="optional"/>

attribute Cant/@equilibriumConstant
type xs:double
properties
use optional
source <xs:attribute name="equilibriumConstant" type="xs:double" use="optional"/>

attribute Cant/@appliedCantConstant
type xs:double
properties
use optional
source <xs:attribute name="appliedCantConstant" type="xs:double" use="optional"/>

attribute Cant/@gauge
type xs:double
properties
use required
source <xs:attribute name="gauge" type="xs:double" use="required"/>

attribute Cant/@rotationPoint
type xs:string
properties
use optional
source <xs:attribute name="rotationPoint" type="xs:string" use="optional"/>

element CantStation
diagram LandXML-2.0_p25.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
used by
element Cant
attributes
Name  Type  Use  Default  Fixed  Annotation
station  xs:double  required
equilibriumCant  xs:double  optional
appliedCant  xs:double  required
cantDeficiency  xs:double  optional
cantExcess  xs:double  optional
rateOfChangeOfAppliedCantOverTime  xs:double  optional
rateOfChangeOfAppliedCantOverLength  xs:double  optional
rateOfChangeOfCantDeficiencyOverTime  xs:double  optional
cantGradient  xs:double  optional
speed  xs:double  optional
transitionType  spiralType  optional
curvature  clockwise  required
adverse  xs:boolean  optional
annotation
documentation
A cant station.
            The “station” is a required double that is internal station value.
The “equilibriumCant” is an optional double that is the equilibrium cant.  This value is expressed in millimeters or inches depending upon the units
The “appliedCant” is a required double that is the applied cant.  This value is expressed in millimeters or inches depending upon the units.
The “deficiencyCant” is an optional double that is the cant deficiency.  This value is expressed in millimeters or inches depending upon the units.
The “cantExcess” is an optional double that is the cant excess.  This value is expressed in millimeters or inches upon the units.
The “rateOfChangeOfAppliedCantOverTime” is an optional double that is the rate of change of applied cant as a function of time.  This value is in millimeters /seconds or inches/seconds depending upon the units.
The “rateOfChangeOfAppliedCantOverLength” is an optional double that is the rate of change of applied cant as a function of length.  This value is in millimeters /meters or inches/feet depending upon the units.
The “rateOfChangeOfCantDeficiencyOverTime” is an optional double that is the rate of change of cant deficiency as a function of time.  This value is in millimeters /seconds or inches/seconds depending upon the units.
The “cantGradient” is an optional double that is the cant gradient.  This value is unitless.
The “speed” is an optional double that is the design speed.  This value is in kmph or mph depending upon the units.
The “transitionType” is an optional enumerated type.
The “curvature” is a required enumerated type.
The “adverse” is an optional Boolean that indicates whether the cant is adverse.
source <xs:element name="CantStation">

<xs:annotation>

<xs:documentation>A cant station.
            The “station” is a required double that is internal station value.
The “equilibriumCant” is an optional double that is the equilibrium cant.  This value is expressed in millimeters or inches depending upon the units
The “appliedCant” is a required double that is the applied cant.  This value is expressed in millimeters or inches depending upon the units.
The “deficiencyCant” is an optional double that is the cant deficiency.  This value is expressed in millimeters or inches depending upon the units.
The “cantExcess” is an optional double that is the cant excess.  This value is expressed in millimeters or inches upon the units.
The “rateOfChangeOfAppliedCantOverTime” is an optional double that is the rate of change of applied cant as a function of time.  This value is in millimeters /seconds or inches/seconds depending upon the units.
The “rateOfChangeOfAppliedCantOverLength” is an optional double that is the rate of change of applied cant as a function of length.  This value is in millimeters /meters or inches/feet depending upon the units.
The “rateOfChangeOfCantDeficiencyOverTime” is an optional double that is the rate of change of cant deficiency as a function of time.  This value is in millimeters /seconds or inches/seconds depending upon the units.
The “cantGradient” is an optional double that is the cant gradient.  This value is unitless.
The “speed” is an optional double that is the design speed.  This value is in kmph or mph depending upon the units.
The “transitionType” is an optional enumerated type.
The “curvature” is a required enumerated type.
The “adverse” is an optional Boolean that indicates whether the cant is adverse.
</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attribute name="station" type="xs:double" use="required"/>

<xs:attribute name="equilibriumCant" type="xs:double" use="optional"/>

<xs:attribute name="appliedCant" type="xs:double" use="required"/>

<xs:attribute name="cantDeficiency" type="xs:double" use="optional"/>

<xs:attribute name="cantExcess" type="xs:double" use="optional"/>

<xs:attribute name="rateOfChangeOfAppliedCantOverTime" type="xs:double" use="optional"/>

<xs:attribute name="rateOfChangeOfAppliedCantOverLength" type="xs:double" use="optional"/>

<xs:attribute name="rateOfChangeOfCantDeficiencyOverTime" type="xs:double" use="optional"/>

<xs:attribute name="cantGradient" type="xs:double" use="optional"/>

<xs:attribute name="speed" type="xs:double" use="optional"/>

<xs:attribute name="transitionType" type="spiralType" use="optional"/>

<xs:attribute name="curvature" type="clockwise" use="required"/>

<xs:attribute name="adverse" type="xs:boolean" use="optional"/>

</xs:complexType>
</xs:element>

attribute CantStation/@station
type xs:double
properties
use required
source <xs:attribute name="station" type="xs:double" use="required"/>

attribute CantStation/@equilibriumCant
type xs:double
properties
use optional
source <xs:attribute name="equilibriumCant" type="xs:double" use="optional"/>

attribute CantStation/@appliedCant
type xs:double
properties
use required
source <xs:attribute name="appliedCant" type="xs:double" use="required"/>

attribute CantStation/@cantDeficiency
type xs:double
properties
use optional
source <xs:attribute name="cantDeficiency" type="xs:double" use="optional"/>

attribute CantStation/@cantExcess
type xs:double
properties
use optional
source <xs:attribute name="cantExcess" type="xs:double" use="optional"/>

attribute CantStation/@rateOfChangeOfAppliedCantOverTime
type xs:double
properties
use optional
source <xs:attribute name="rateOfChangeOfAppliedCantOverTime" type="xs:double" use="optional"/>

attribute CantStation/@rateOfChangeOfAppliedCantOverLength
type xs:double
properties
use optional
source <xs:attribute name="rateOfChangeOfAppliedCantOverLength" type="xs:double" use="optional"/>

attribute CantStation/@rateOfChangeOfCantDeficiencyOverTime
type xs:double
properties
use optional
source <xs:attribute name="rateOfChangeOfCantDeficiencyOverTime" type="xs:double" use="optional"/>

attribute CantStation/@cantGradient
type xs:double
properties
use optional
source <xs:attribute name="cantGradient" type="xs:double" use="optional"/>

attribute CantStation/@speed
type xs:double
properties
use optional
source <xs:attribute name="speed" type="xs:double" use="optional"/>

attribute CantStation/@transitionType
type spiralType
properties
use optional
facets
Kind Value Annotation
enumeration biquadratic
enumeration bloss
enumeration clothoid
enumeration cosine
enumeration cubic
enumeration sinusoid
enumeration revBiquadratic
enumeration revBloss
enumeration revCosine
enumeration revSinusoid
enumeration sineHalfWave
enumeration biquadraticParabola
enumeration cubicParabola
enumeration japaneseCubic
enumeration radioid
enumeration weinerBogen
source <xs:attribute name="transitionType" type="spiralType" use="optional"/>

attribute CantStation/@curvature
type clockwise
properties
use required
facets
Kind Value Annotation
enumeration cw
enumeration ccw
source <xs:attribute name="curvature" type="clockwise" use="required"/>

attribute CantStation/@adverse
type xs:boolean
properties
use optional
source <xs:attribute name="adverse" type="xs:boolean" use="optional"/>

element Center
diagram LandXML-2.0_p26.png
namespace http://www.landxml.org/schema/LandXML-2.0
type PointType
properties
content complex
mixed true
used by
elements Curve Parcel Pipe Struct
facets
Kind Value Annotation
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string
desc  xs:string
code  xs:string
state  stateType
m  materialTableIndexRef  optional
pntRef  pointNameRef
featureRef  featureNameRef  optional
pointGeometry  pointGeometryType
DTMAttribute  DTMAttributeType
timeStamp  xs:dateTime  optional
role  surveyRoleType  optional
determinedTimeStamp  xs:dateTime  optional
ellipsoidHeight  ellipsoidHeightType  optional
latitude  latLongAngle  optional
longitude  latLongAngle  optional
zone  xs:string  optional
northingStdError  xs:double  optional
eastingStdError  xs:double  optional
elevationStdError  xs:double  optional
annotation
documentation
Represents a 2D or 3D Center Point
documentation
Defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.
source <xs:element name="Center" type="PointType">

<xs:annotation>

<xs:documentation>Represents a 2D or 3D Center Point</xs:documentation>

<xs:documentation>Defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.</xs:documentation>

</xs:annotation>
</xs:element>

element CgPoint

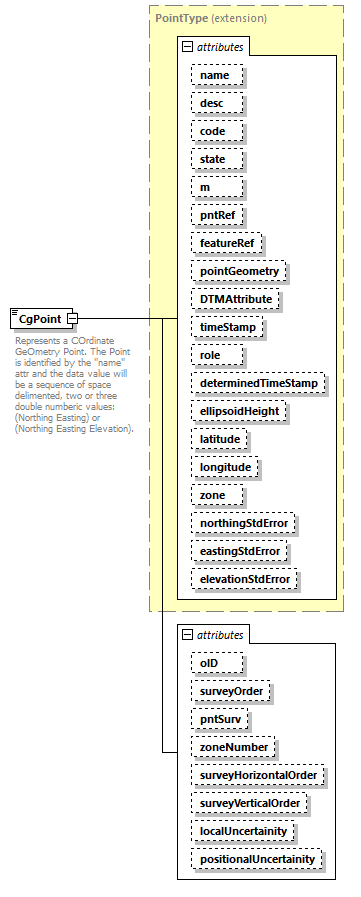

diagram LandXML-2.0_p27.png
namespace http://www.landxml.org/schema/LandXML-2.0
type extension of PointType
properties
content complex
mixed true
used by
element CgPoints
facets
Kind Value Annotation
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string
desc  xs:string
code  xs:string
state  stateType
m  materialTableIndexRef  optional
pntRef  pointNameRef
featureRef  featureNameRef  optional
pointGeometry  pointGeometryType
DTMAttribute  DTMAttributeType
timeStamp  xs:dateTime  optional
role  surveyRoleType  optional
determinedTimeStamp  xs:dateTime  optional
ellipsoidHeight  ellipsoidHeightType  optional
latitude  latLongAngle  optional
longitude  latLongAngle  optional
zone  xs:string  optional
northingStdError  xs:double  optional
eastingStdError  xs:double  optional
elevationStdError  xs:double  optional
oID  xs:string
surveyOrder  xs:string
pntSurv  survPntType
zoneNumber  zoneNumberType
surveyHorizontalOrder  xs:string
surveyVerticalOrder  xs:string
localUncertainity  xs:double
positionalUncertainity  xs:double
annotation
documentation
Represents a COrdinate GeOmetry Point. The Point is identified by the "name" attr and the data value will be a sequence of space delimented, two or three double numberic values: (Northing Easting) or (Northing Easting Elevation).
source <xs:element name="CgPoint">

<xs:annotation>

<xs:documentation>Represents a COrdinate GeOmetry Point. The Point is identified by the "name" attr and the data value will be a sequence of space delimented, two or three double numberic values: (Northing Easting) or (Northing Easting Elevation).</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:simpleContent>

<xs:extension base="PointType">

<xs:attribute name="oID" type="xs:string"/>

<xs:attribute name="surveyOrder" type="xs:string"/>

<xs:attribute name="pntSurv" type="survPntType"/>

<xs:attribute name="zoneNumber" type="zoneNumberType"/>

<xs:attribute name="surveyHorizontalOrder" type="xs:string"/>

<xs:attribute name="surveyVerticalOrder" type="xs:string"/>

<xs:attribute name="localUncertainity" type="xs:double"/>

<xs:attribute name="positionalUncertainity" type="xs:double"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute CgPoint/@oID
type xs:string
source <xs:attribute name="oID" type="xs:string"/>

attribute CgPoint/@surveyOrder
type xs:string
source <xs:attribute name="surveyOrder" type="xs:string"/>

attribute CgPoint/@pntSurv
type survPntType
facets
Kind Value Annotation
enumeration monument
enumeration control
enumeration sideshot
enumeration boundary
enumeration natural boundary
enumeration traverse
enumeration reference
enumeration administrative
source <xs:attribute name="pntSurv" type="survPntType"/>

attribute CgPoint/@zoneNumber
type zoneNumberType
facets
Kind Value Annotation
minInclusive 1
maxInclusive 99
source <xs:attribute name="zoneNumber" type="zoneNumberType"/>

attribute CgPoint/@surveyHorizontalOrder
type xs:string
source <xs:attribute name="surveyHorizontalOrder" type="xs:string"/>

attribute CgPoint/@surveyVerticalOrder
type xs:string
source <xs:attribute name="surveyVerticalOrder" type="xs:string"/>

attribute CgPoint/@localUncertainity
type xs:double
source <xs:attribute name="localUncertainity" type="xs:double"/>

attribute CgPoint/@positionalUncertainity
type xs:double
source <xs:attribute name="positionalUncertainity" type="xs:double"/>

element CgPoints

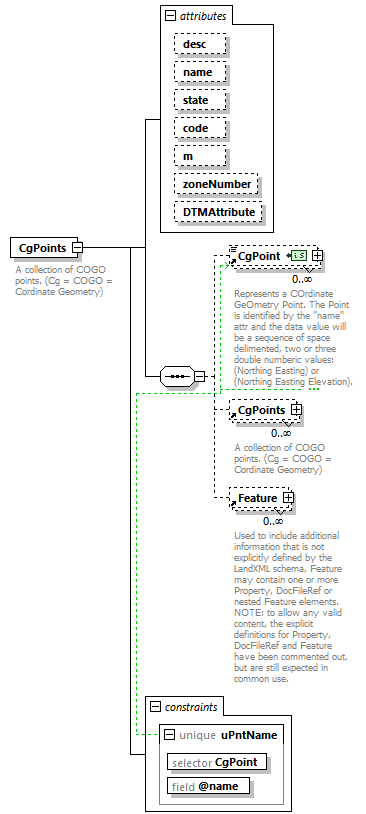

diagram LandXML-2.0_p28.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children CgPoint CgPoints Feature
used by
elements CgPoints LandXML Survey
attributes
Name  Type  Use  Default  Fixed  Annotation
desc  xs:string
name  xs:string
state  stateType
code  xs:string
m  materialTableIndexRef  optional
zoneNumber  zoneNumberType
DTMAttribute  DTMAttributeType
identity constraints
  Name  Refer  Selector  Field(s)  Annotation
unique  uPntName    CgPoint  @name
annotation
documentation
A collection of COGO points. (Cg = COGO = Cordinate Geometry)
source <xs:element name="CgPoints">

<xs:annotation>

<xs:documentation>A collection of COGO points. (Cg = COGO = Cordinate Geometry)</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="CgPoint" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="CgPoints" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

<!-- Allow nested CgPoints collections -->

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="code" type="xs:string"/>

<xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

<xs:attribute name="zoneNumber" type="zoneNumberType"/>

<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

</xs:complexType>

<xs:unique name="uPntName">

<xs:selector xpath="CgPoint"/>

<xs:field xpath="@name"/>

</xs:unique>
</xs:element>

attribute CgPoints/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute CgPoints/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute CgPoints/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute CgPoints/@code
type xs:string
source <xs:attribute name="code" type="xs:string"/>

attribute CgPoints/@m
type materialTableIndexRef
properties
use optional
source <xs:attribute name="m" type="materialTableIndexRef" use="optional"/>

attribute CgPoints/@zoneNumber
type zoneNumberType
facets
Kind Value Annotation
minInclusive 1
maxInclusive 99
source <xs:attribute name="zoneNumber" type="zoneNumberType"/>

attribute CgPoints/@DTMAttribute
type DTMAttributeType
facets
Kind Value Annotation
enumeration determinebyfeature
enumeration donotinclude
enumeration spot
enumeration spotandbreak
enumeration void
enumeration drapevoid
enumeration breakvoid
enumeration island
enumeration boundary
enumeration contour
enumeration feature
enumeration ground
enumeration xsection
enumeration user
source <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

element Chain
diagram LandXML-2.0_p29.png
namespace http://www.landxml.org/schema/LandXML-2.0
type extension of ChainType
properties
content complex
mixed true
used by
elements CoordGeom SourceData
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string
desc  xs:string
code  xs:string
state  stateType
pointGeometry  pointGeometryType
DTMAttribute  DTMAttributeType
timeStamp  xs:dateTime  optional
role  surveyRoleType  optional
station  station
zone  xs:string
status  observationStatusType
annotation
documentation
A text value that is a space delimited list of CgPoint names that form a linear connected chain.
example: <Chain>1 23 45 34</Chain>
represents a linear connection between CgPoint name 1, 23, 45 and 34.
source <xs:element name="Chain">

<xs:annotation>

<xs:documentation>A text value that is a space delimited list of CgPoint names that form a linear connected chain.
example:
<Chain>1 23 45 34</Chain>
represents a linear connection between CgPoint name 1, 23, 45 and 34.
</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:simpleContent>

<xs:extension base="ChainType">

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="code" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="pointGeometry" type="pointGeometryType"/>

<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

<xs:attribute name="role" type="surveyRoleType" use="optional"/>

<xs:attribute name="station" type="station"/>

<xs:attribute name="zone" type="xs:string"/>

<xs:attribute name="status" type="observationStatusType"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute Chain/@name
type xs:string
source <xs:attribute name="name" type="xs:string"/>

attribute Chain/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Chain/@code
type xs:string
source <xs:attribute name="code" type="xs:string"/>

attribute Chain/@state
type stateType
facets
Kind Value Annotation
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Chain/@pointGeometry
type pointGeometryType
facets
Kind Value Annotation
enumeration point
enumeration curve
source <xs:attribute name="pointGeometry" type="pointGeometryType"/>

attribute Chain/@DTMAttribute
type DTMAttributeType
facets
Kind Value Annotation
enumeration determinebyfeature
enumeration donotinclude
enumeration spot
enumeration spotandbreak
enumeration void
enumeration drapevoid
enumeration breakvoid
enumeration island
enumeration boundary
enumeration contour
enumeration feature
enumeration ground
enumeration xsection
enumeration user
source <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

attribute Chain/@timeStamp
type xs:dateTime
properties
use optional
source <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

attribute Chain/@role
type surveyRoleType
properties
use optional
facets
Kind Value Annotation
enumeration measured
enumeration to stake out
enumeration staked out
enumeration calculated
enumeration assistance point
enumeration user entered point
enumeration control point
source <xs:attribute name="role" type="surveyRoleType" use="optional"/>

attribute Chain/@station
type station
source <xs:attribute name="station" type="station"/>

attribute Chain/@zone
type xs:string
source <xs:attribute name="zone" type="xs:string"/>

attribute Chain/@status
type observationStatusType
facets
Kind Value Annotation
enumeration modified
enumeration deleted
source <xs:attribute name="status" type="observationStatusType"/>

element Channel
diagram LandXML-2.0_p30.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
elements Pipe PipeModel
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string  required
alignmentRef  alignmentNameRef  required
surfaceRef  surfaceNameRef  required
height  xs:double  required
widthTop  xs:double  required
widthBottom  xs:double  required
desc  xs:string
hazenWilliams  xs:double
mannings  xs:double
material  pipeMaterialType
m  materialTableIndexRef
annotation
documentation
hazenWilliams attribute is the Hazen-Williams friction loss equation result
documentation
mannings attribute is the Mannings coeffecient of roughness
source <xs:element name="Channel">

<xs:annotation>

<xs:documentation>hazenWilliams attribute is the Hazen-Williams friction loss equation result</xs:documentation>

<xs:documentation>mannings attribute is the Mannings coeffecient of roughness</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="alignmentRef" type="alignmentNameRef" use="required"/>

<xs:attribute name="surfaceRef" type="surfaceNameRef" use="required"/>

<xs:attribute name="height" type="xs:double" use="required"/>

<xs:attribute name="widthTop" type="xs:double" use="required"/>

<xs:attribute name="widthBottom" type="xs:double" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="hazenWilliams" type="xs:double"/>

<xs:attribute name="mannings" type="xs:double"/>

<xs:attribute name="material" type="pipeMaterialType"/>

<xs:attribute name="m" type="materialTableIndexRef"/>

</xs:complexType>
</xs:element>

attribute Channel/@name
type xs:string
properties
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute Channel/@alignmentRef
type alignmentNameRef
properties
use required
source <xs:attribute name="alignmentRef" type="alignmentNameRef" use="required"/>

attribute Channel/@surfaceRef
type surfaceNameRef
properties
use required
source <xs:attribute name="surfaceRef" type="surfaceNameRef" use="required"/>

attribute Channel/@height
type xs:double
properties
use required
source <xs:attribute name="height" type="xs:double" use="required"/>

attribute Channel/@widthTop
type xs:double
properties
use required
source <xs:attribute name="widthTop" type="xs:double" use="required"/>

attribute Channel/@widthBottom
type xs:double
properties
use required
source <xs:attribute name="widthBottom" type="xs:double" use="required"/>

attribute Channel/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute Channel/@hazenWilliams
type xs:double
source <xs:attribute name="hazenWilliams" type="xs:double"/>

attribute Channel/@mannings
type xs:double
source <xs:attribute name="mannings" type="xs:double"/>

attribute Channel/@material
type pipeMaterialType
facets
Kind Value Annotation
enumeration RCP
enumeration RCPIII
enumeration RCPIV
enumeration RCPV
enumeration PVC
enumeration HDPE
enumeration CMP
enumeration CLAY
enumeration DIP
source <xs:attribute name="material" type="pipeMaterialType"/>

attribute Channel/@m
type materialTableIndexRef
source <xs:attribute name="m" type="materialTableIndexRef"/>

element CircCurve
diagram LandXML-2.0_p31.png
namespace http://www.landxml.org/schema/LandXML-2.0
type extension of Point
properties
content complex
mixed true
used by
element ProfAlign
attributes
Name  Type  Use  Default  Fixed  Annotation
length  xs:double  required
radius  xs:double  required
desc  xs:string
annotation
documentation
A  Point of Vertical Intersection with a space delimited "station elevation" text value
documentation
with a circular vertical curve defined by "length and "radius" attributes.
source <xs:element name="CircCurve">

<xs:annotation>

<xs:documentation>A  Point of Vertical Intersection with a space delimited "station elevation" text value</xs:documentation>

<xs:documentation>with a circular vertical curve defined by "length and "radius" attributes.</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:simpleContent>

<xs:extension base="Point">

<xs:attribute name="length" type="xs:double" use="required"/>

<xs:attribute name="radius" type="xs:double" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute CircCurve/@length
type xs:double
properties
use required
source <xs:attribute name="length" type="xs:double" use="required"/>

attribute CircCurve/@radius
type xs:double
properties
use required
source <xs:attribute name="radius" type="xs:double" use="required"/>

attribute CircCurve/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

element CircPipe
diagram LandXML-2.0_p32.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
elements Pipe PipeModel
attributes
Name  Type  Use  Default  Fixed  Annotation
diameter  pipeDiameter  required
desc  xs:string
hazenWilliams  xs:double
mannings  xs:double
material  pipeMaterialType
thickness  xs:double
annotation
documentation
hazenWilliams attribute is the Hazen-Williams friction loss equation result
documentation
mannings attribute is the Mannings coeffecient of roughness
source <xs:element name="CircPipe">

<xs:annotation>

<xs:documentation>hazenWilliams attribute is the Hazen-Williams friction loss equation result</xs:documentation>

<xs:documentation>mannings attribute is the Mannings coeffecient of roughness</xs:documentation>

<xs:documentation/>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="diameter" type="pipeDiameter" use="required"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="hazenWilliams" type="xs:double"/>

<xs:attribute name="mannings" type="xs:double"/>

<xs:attribute name="material" type="pipeMaterialType"/>

<xs:attribute name="thickness" type="xs:double"/>

</xs:complexType>
</xs:element>

attribute CircPipe/@diameter
type pipeDiameter
properties
use required
source <xs:attribute name="diameter" type="pipeDiameter" use="required"/>

attribute CircPipe/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute CircPipe/@hazenWilliams
type xs:double
source <xs:attribute name="hazenWilliams" type="xs:double"/>

attribute CircPipe/@mannings
type xs:double
source <xs:attribute name="mannings" type="xs:double"/>

attribute CircPipe/@material
type pipeMaterialType
facets
Kind Value Annotation
enumeration RCP
enumeration RCPIII
enumeration RCPIV
enumeration RCPV
enumeration PVC
enumeration HDPE
enumeration CMP
enumeration CLAY
enumeration DIP
source <xs:attribute name="material" type="pipeMaterialType"/>

attribute CircPipe/@thickness
type xs:double
source <xs:attribute name="thickness" type="xs:double"/>

element CircStruct
diagram LandXML-2.0_p33.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
elements Struct StructModel
attributes
Name  Type  Use  Default  Fixed  Annotation
taperShape  circularTaperShape
diameter  xs:double  required
topDiameter  xs:double
TaperOffset  xs:double
fixedTaperHeight  xs:double
desc  xs:string
inletCase
lossCoeff  xs:double
material
thickness  xs:double
sumpDepth  xs:double
junctionDrop  xs:double
structureDepth  xs:double
annotation
documentation
Typically for manholes
source <xs:element name="CircStruct">

<xs:annotation>

<xs:documentation>Typically for manholes</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="taperShape" type="circularTaperShape"/>

<xs:attribute name="diameter" type="xs:double" use="required"/>

<xs:attribute name="topDiameter" type="xs:double"/>

<xs:attribute name="TaperOffset" type="xs:double"/>

<xs:attribute name="fixedTaperHeight" type="xs:double"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="inletCase"/>

<xs:attribute name="lossCoeff" type="xs:double"/>

<xs:attribute name="material"/>

<xs:attribute name="thickness" type="xs:double"/>

<xs:attribute name="sumpDepth" type="xs:double"/>

<xs:attribute name="junctionDrop" type="xs:double"/>

<xs:attribute name="structureDepth" type="xs:double"/>

</xs:complexType>
</xs:element>

attribute CircStruct/@taperShape
type circularTaperShape
facets
Kind Value Annotation
enumeration symmetric
enumeration taperUpstream
enumeration taperDownstream
source <xs:attribute name="taperShape" type="circularTaperShape"/>

attribute CircStruct/@diameter
type xs:double
properties
use required
source <xs:attribute name="diameter" type="xs:double" use="required"/>

attribute CircStruct/@topDiameter
type xs:double
source <xs:attribute name="topDiameter" type="xs:double"/>

attribute CircStruct/@TaperOffset
type xs:double
source <xs:attribute name="TaperOffset" type="xs:double"/>

attribute CircStruct/@fixedTaperHeight
type xs:double
source <xs:attribute name="fixedTaperHeight" type="xs:double"/>

attribute CircStruct/@desc
type xs:string
source <xs:attribute name="desc" type="xs:string"/>

attribute CircStruct/@inletCase
source <xs:attribute name="inletCase"/>

attribute CircStruct/@lossCoeff
type xs:double
source <xs:attribute name="lossCoeff" type="xs:double"/>

attribute CircStruct/@material
source <xs:attribute name="material"/>

attribute CircStruct/@thickness
type xs:double
source <xs:attribute name="thickness" type="xs:double"/>

attribute CircStruct/@sumpDepth
type xs:double
source <xs:attribute name="sumpDepth" type="xs:double"/>

attribute CircStruct/@junctionDrop
type xs:double
source <xs:attribute name="junctionDrop" type="xs:double"/>

attribute CircStruct/@structureDepth
type xs:double
source <xs:attribute name="structureDepth" type="xs:double"/>

element Classification
diagram LandXML-2.0_p34.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
element Roadway
attributes
Name  Type  Use  Default  Fixed  Annotation
staStart  station
staEnd  station
functionalClass  functionalClassType
source <xs:element name="Classification">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="functionalClass" type="functionalClassType"/>

</xs:complexType>
</xs:element>

attribute Classification/@staStart
type station
source <xs:attribute name="staStart" type="station"/>

attribute Classification/@staEnd
type station
source <xs:attribute name="staEnd" type="station"/>

attribute Classification/@functionalClass
type functionalClassType
facets
Kind Value Annotation
enumeration arterial
enumeration collector
enumeration local
source <xs:attribute name="functionalClass" type="functionalClassType"/>

element ClimbLane
diagram LandXML-2.0_p35.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
element Lanes
attributes
Name  Type  Use  Default  Fixed  Annotation
staStart  station
staEnd  station
beginFullWidthSta  station
endFullWidthSta  station
width  xs:double
sideofRoad  sideofRoadType
source <xs:element name="ClimbLane">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="beginFullWidthSta" type="station"/>

<xs:attribute name="endFullWidthSta" type="station"/>

<xs:attribute name="width" type="xs:double"/>

<xs:attribute name="sideofRoad" type="sideofRoadType"/>

</xs:complexType>
</xs:element>

attribute ClimbLane/@staStart
type station
source <xs:attribute name="staStart" type="station"/>

attribute ClimbLane/@staEnd
type station
source <xs:attribute name="staEnd" type="station"/>

attribute ClimbLane/@beginFullWidthSta
type station
source <xs:attribute name="beginFullWidthSta" type="station"/>

attribute ClimbLane/@endFullWidthSta
type station
source <xs:attribute name="endFullWidthSta" type="station"/>

attribute ClimbLane/@width
type xs:double
source <xs:attribute name="width" type="xs:double"/>

attribute ClimbLane/@sideofRoad
type sideofRoadType
facets
Kind Value Annotation
enumeration right
enumeration left
enumeration both
source <xs:attribute name="sideofRoad" type="sideofRoadType"/>

element ComboInlet

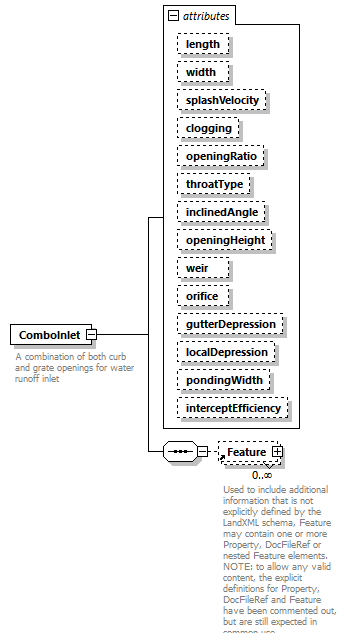

diagram LandXML-2.0_p36.png
namespace http://www.landxml.org/schema/LandXML-2.0
properties
content complex
children Feature
used by
element InletStruct
attributes
Name  Type  Use  Default  Fixed  Annotation
length  xs:double
width  xs:double
splashVelocity  xs:double
clogging  xs:double
openingRatio  xs:double
throatType  curbThroatType
inclinedAngle  xs:double
openingHeight  xs:double
weir  xs:double
orifice  xs:double
gutterDepression  xs:double
localDepression  xs:double
pondingWidth  xs:double
interceptEfficiency  xs:double
annotation
documentation
A combination of both curb and grate openings for water runoff inlet
documentation
interceptEfficiency = % of inflow that gets intercepted by vegetation and doesn't enter inlet or % of inflow that isn't intercepted
source <xs:element name="ComboInlet">

<xs:annotation>

<xs:documentation>A combination of both curb and grate openings for water runoff inlet</xs:documentation>

<xs:documentation>interceptEfficiency = % of inflow that gets intercepted by vegetation and doesn't enter inlet or % of inflow that isn't intercepted</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="length" type="xs:double"/>

<xs:attribute name="width" type="xs:double"/>

<xs:attribute name="splashVelocity" type="xs:double"/>

<xs:attribute name="clogging" type="xs:double"/>

<xs:attribute name="openingRatio" type="xs:double"/>

<xs:attribute name="throatType" type="curbThroatType"/>

<xs:attribute name="inclinedAngle" type="xs:double"/>

<xs:attribute name="openingHeight" type="xs:double"/>

<xs:attribute name="weir" type="xs:double"/>

<xs:attribute name="orifice" type="xs:double"/>

<xs:attribute name="gutterDepression" type="xs:double"/>

<xs:attribute name="localDepression" type="xs:double"/>

<xs:attribute name="pondingWidth" type="xs:double"/>

<xs:attribute name="interceptEfficiency" type="xs:double"/>

</xs:complexType>
</xs:element>

attribute ComboInlet/@length
type xs:double
source <xs:attribute name="length" type="xs:double"/>

attribute ComboInlet/@width
type xs:double
source <xs:attribute name="width" type="xs:double"/>

attribute ComboInlet/@splashVelocity
type xs:double
source <xs:attribute name="splashVelocity" type="xs:double"/>

attribute ComboInlet/@clogging
type xs:double
source <xs:attribute name="clogging" type="xs:double"/>

attribute ComboInlet/@openingRatio
type xs:double
source <xs:attribute name="openingRatio" type="xs:double"/>

attribute ComboInlet/@throatType
type curbThroatType
facets
Kind Value Annotation
enumeration
