element Watershed

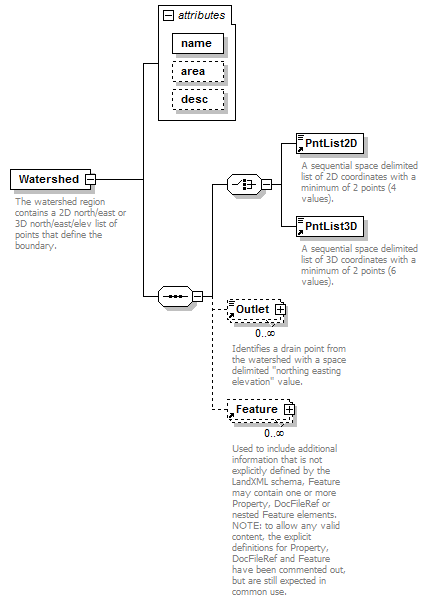

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PntList2D PntList3D Outlet Feature
used by	element  Watersheds
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         area xs:double          desc xs:string
annotation	documentation The watershed region contains a 2D north/east or 3D north/east/elev list of points that define the boundary. documentation A watershed is identified by the "name" attribute. documentation It may have 1 or more Outlet elements.
source	<xs:element name="Watershed">   <xs:annotation>     <xs:documentation>The watershed region contains a 2D north/east or 3D north/east/elev list of points that define the boundary.</xs:documentation>     <xs:documentation>A watershed is identified by the "name" attribute.</xs:documentation>     <xs:documentation>It may have 1 or more Outlet elements.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element ref="PntList2D"/>         <xs:element ref="PntList3D"/>         <!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->       </xs:choice>       <xs:element ref="Outlet" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="area" type="xs:double"/>     <xs:attribute name="desc" type="xs:string"/>   </xs:complexType> </xs:element>

attribute Watershed/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Watershed/@area

type	xs:double
properties	isRef  0
source	<xs:attribute name="area" type="xs:double"/>

attribute Watershed/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>
