element SurveyMonument

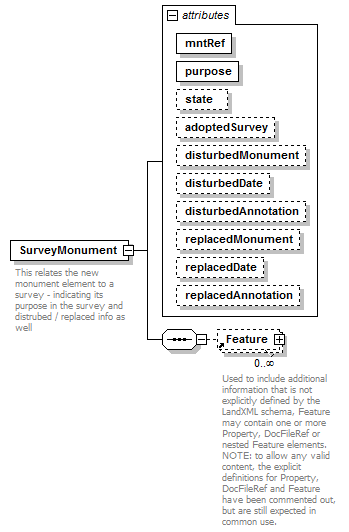

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Survey
attributes	Name   Type   Use   Default   Fixed   annotation mntRef monumentNameRef required         purpose monumentPurpose required         state monumentState          adoptedSurvey xs:string          disturbedMonument xs:string          disturbedDate xs:date          disturbedAnnotation xs:string          replacedMonument xs:string          replacedDate xs:date          replacedAnnotation xs:string
annotation	documentation This relates the new monument element to a survey - indicating its purpose in the survey and distrubed / replaced info as well
source	<xs:element name="SurveyMonument">   <xs:annotation>     <xs:documentation>This relates the new monument element to a survey - indicating its purpose in the survey and distrubed / replaced info as well</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="mntRef" type="monumentNameRef" use="required"/>     <xs:attribute name="purpose" type="monumentPurpose" use="required"/>     <xs:attribute name="state" type="monumentState"/>     <xs:attribute name="adoptedSurvey" type="xs:string"/>     <xs:attribute name="disturbedMonument" type="xs:string"/>     <xs:attribute name="disturbedDate" type="xs:date"/>     <xs:attribute name="disturbedAnnotation" type="xs:string"/>     <xs:attribute name="replacedMonument" type="xs:string"/>     <xs:attribute name="replacedDate" type="xs:date"/>     <xs:attribute name="replacedAnnotation" type="xs:string"/>   </xs:complexType> </xs:element>

attribute SurveyMonument/@mntRef

type	monumentNameRef
properties	isRef  0 use  required
source	<xs:attribute name="mntRef" type="monumentNameRef" use="required"/>

attribute SurveyMonument/@purpose

type	monumentPurpose
properties	isRef  0 use  required
source	<xs:attribute name="purpose" type="monumentPurpose" use="required"/>

attribute SurveyMonument/@state

type	monumentState
properties	isRef  0
source	<xs:attribute name="state" type="monumentState"/>

attribute SurveyMonument/@adoptedSurvey

type	xs:string
properties	isRef  0
source	<xs:attribute name="adoptedSurvey" type="xs:string"/>

attribute SurveyMonument/@disturbedMonument

type	xs:string
properties	isRef  0
source	<xs:attribute name="disturbedMonument" type="xs:string"/>

attribute SurveyMonument/@disturbedDate

type	xs:date
properties	isRef  0
source	<xs:attribute name="disturbedDate" type="xs:date"/>

attribute SurveyMonument/@disturbedAnnotation

type	xs:string
properties	isRef  0
source	<xs:attribute name="disturbedAnnotation" type="xs:string"/>

attribute SurveyMonument/@replacedMonument

type	xs:string
properties	isRef  0
source	<xs:attribute name="replacedMonument" type="xs:string"/>

attribute SurveyMonument/@replacedDate

type	xs:date
properties	isRef  0
source	<xs:attribute name="replacedDate" type="xs:date"/>

attribute SurveyMonument/@replacedAnnotation

type	xs:string
properties	isRef  0
source	<xs:attribute name="replacedAnnotation" type="xs:string"/>
