element Roadways

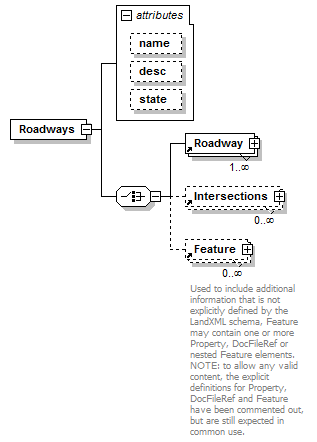

diagram LandXML-1.2Doc_p162.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Roadway Intersections Feature
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:string
descxs:string
statestateType
source <xs:element name="Roadways">

<xs:complexType>

<xs:choice>

<xs:element ref="Roadway" maxOccurs="unbounded"/>

<xs:element ref="Intersections" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="name" type="xs:string"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>
</xs:element>

attribute Roadways/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute Roadways/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute Roadways/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>
