element RoadSign

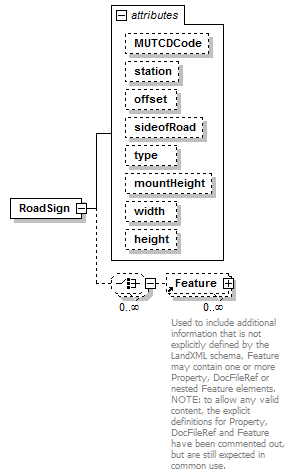

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Roadside
attributes	Name   Type   Use   Default   Fixed   annotation MUTCDCode xs:string          station station          offset offsetDistance          sideofRoad sideofRoadType          type roadSignType          mountHeight xs:double          width xs:double          height xs:double
source	<xs:element name="RoadSign">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="MUTCDCode" type="xs:string"/>     <xs:attribute name="station" type="station"/>     <xs:attribute name="offset" type="offsetDistance"/>     <xs:attribute name="sideofRoad" type="sideofRoadType"/>     <xs:attribute name="type" type="roadSignType"/>     <xs:attribute name="mountHeight" type="xs:double"/>     <xs:attribute name="width" type="xs:double"/>     <xs:attribute name="height" type="xs:double"/>   </xs:complexType> </xs:element>

attribute RoadSign/@MUTCDCode

type	xs:string
properties	isRef  0
source	<xs:attribute name="MUTCDCode" type="xs:string"/>

attribute RoadSign/@station

type	station
properties	isRef  0
source	<xs:attribute name="station" type="station"/>

attribute RoadSign/@offset

type	offsetDistance
properties	isRef  0
source	<xs:attribute name="offset" type="offsetDistance"/>

attribute RoadSign/@sideofRoad

type	sideofRoadType
properties	isRef  0
facets	enumeration  right enumeration  left enumeration  both
source	<xs:attribute name="sideofRoad" type="sideofRoadType"/>

attribute RoadSign/@type

type	roadSignType
properties	isRef  0
facets	enumeration  regulatory enumeration  guide enumeration  warning enumeration  specificService enumeration  tourist enumeration  recreation-cultural enumeration  emergencyManagement
source	<xs:attribute name="type" type="roadSignType"/>

attribute RoadSign/@mountHeight

type	xs:double
properties	isRef  0
source	<xs:attribute name="mountHeight" type="xs:double"/>

attribute RoadSign/@width

type	xs:double
properties	isRef  0
source	<xs:attribute name="width" type="xs:double"/>

attribute RoadSign/@height

type	xs:double
properties	isRef  0
source	<xs:attribute name="height" type="xs:double"/>
