element PostedSpeed

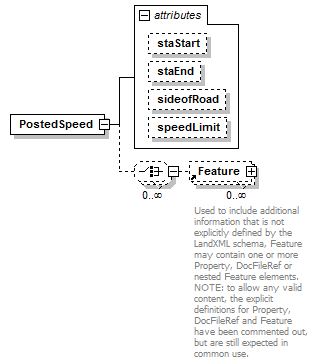

diagram LandXML-1.2Doc_p141.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Speeds
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
sideofRoadsideofRoadType
speedLimitspeed
source <xs:element name="PostedSpeed">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="sideofRoad" type="sideofRoadType"/>

<xs:attribute name="speedLimit" type="speed"/>

</xs:complexType>
</xs:element>

attribute PostedSpeed/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute PostedSpeed/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute PostedSpeed/@sideofRoad
type sideofRoadType
properties
isRef 0
facets
enumeration right
enumeration left
enumeration both
source <xs:attribute name="sideofRoad" type="sideofRoadType"/>

attribute PostedSpeed/@speedLimit
type speed
properties
isRef 0
source <xs:attribute name="speedLimit" type="speed"/>
